FHQ Inverter Ceiling Suspended Split Type (D Series)
Specifications
Model

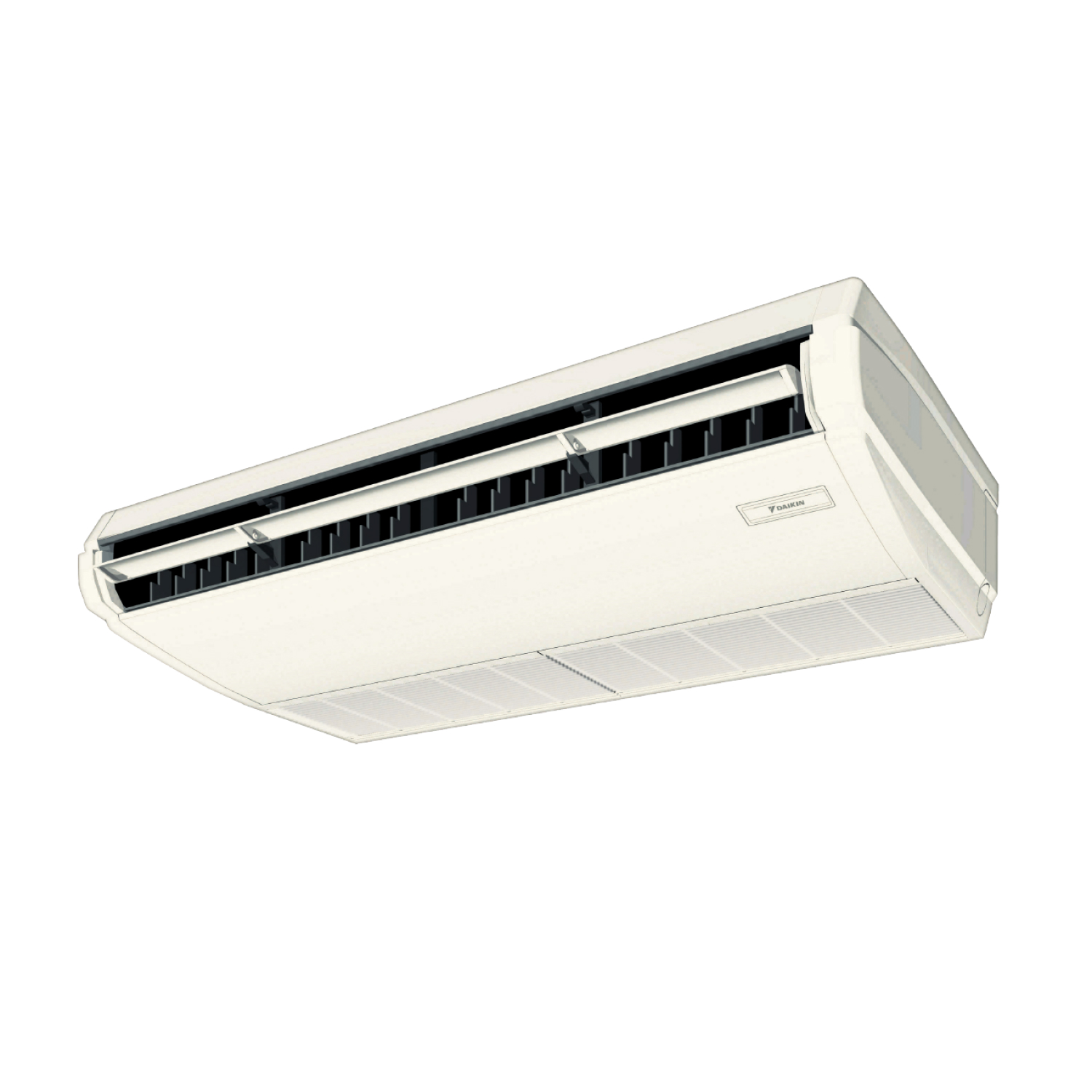

Indoor Unit
FHQ71DAVMA
Cooling Capacity
7.1 kW
24,200 Btu/h
Power Consumption
Cooling: 2.21 kW
Heating: 2.52 kW

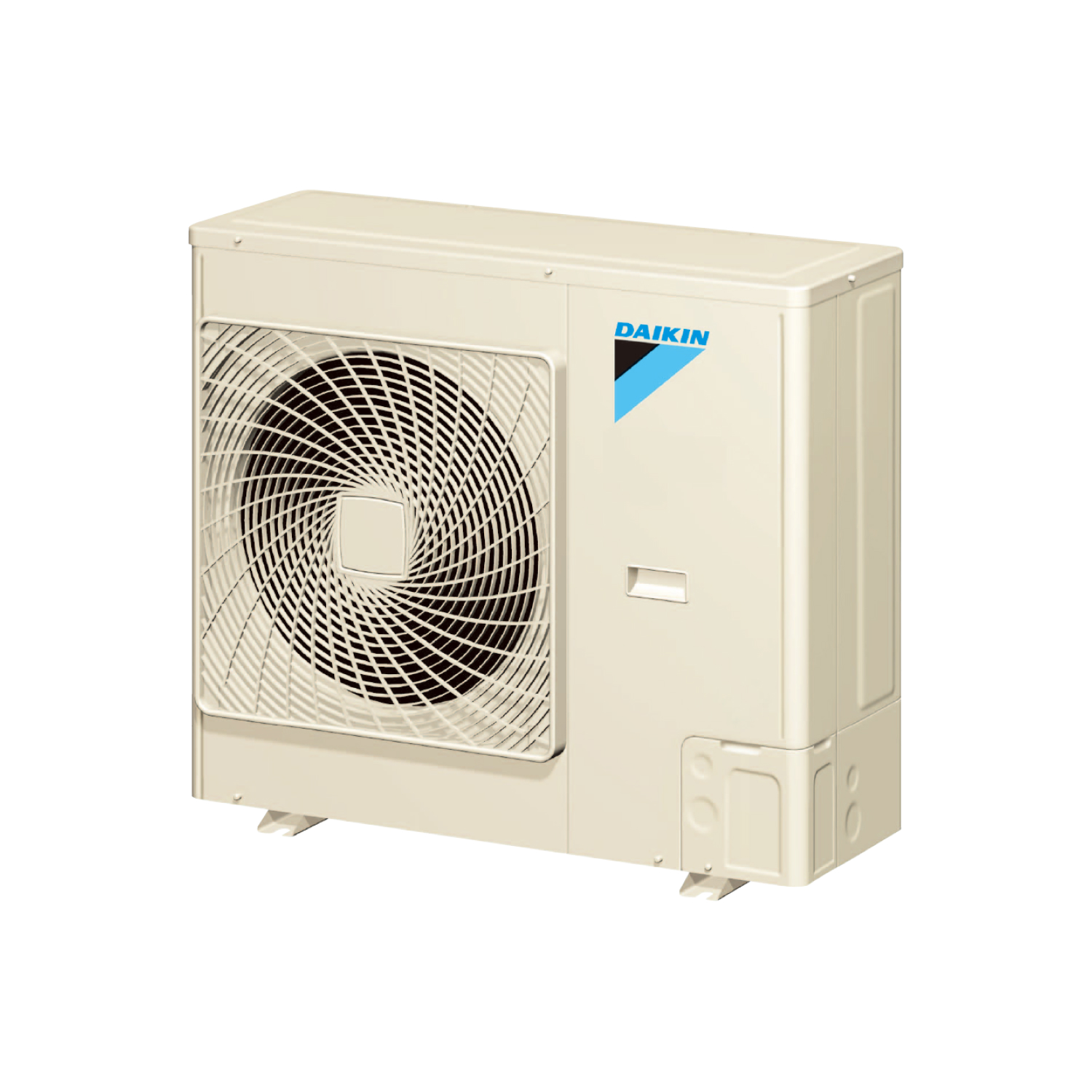

Outdoor Unit
RZQ71LV1
Heating Capacity
8 kW
27,300 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Indoor Unit
Airflow Rate
Cooling: 14 - 20.5 (3 steps) m³/min
Heating: 14 - 20.5 (3 steps) m³/min
Dimensions (H x W x D)
235 x 1,270 x 690 mm
Sound Level
Cooling: 34 - 38 dB(A)
Heating: 34 - 38 dB(A)
Weight
32 kg
Outdoor Unit
Dimensions (H x W x D)
770 x 900 x 320 mm
Piping Connections
Gas: Ø15.9 mm
Liquid: Ø9.5 mm
Max. Height Difference
30 m
Weight
64 kg
Max. Piping Length
50 m
Accessories/Functions
Remote Controller Model (Wired)
BRC2E61 (optional)
Remote Controller Model (Wireless)
BRC7GA53 (optional)
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 7.5m
