FHQ Inverter Ceiling Suspended Split Type (D Series)
  • Cooling only
  • Heat pump
  • Inverter
Select hp/model
Paired model:
Specifications
Model
Indoor Unit
FHQ50DAVMA
Cooling Capacity
5 kW
17,100 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Outdoor Unit
RZR50MVM
Power Consumption
Cooling: 1.24 kW

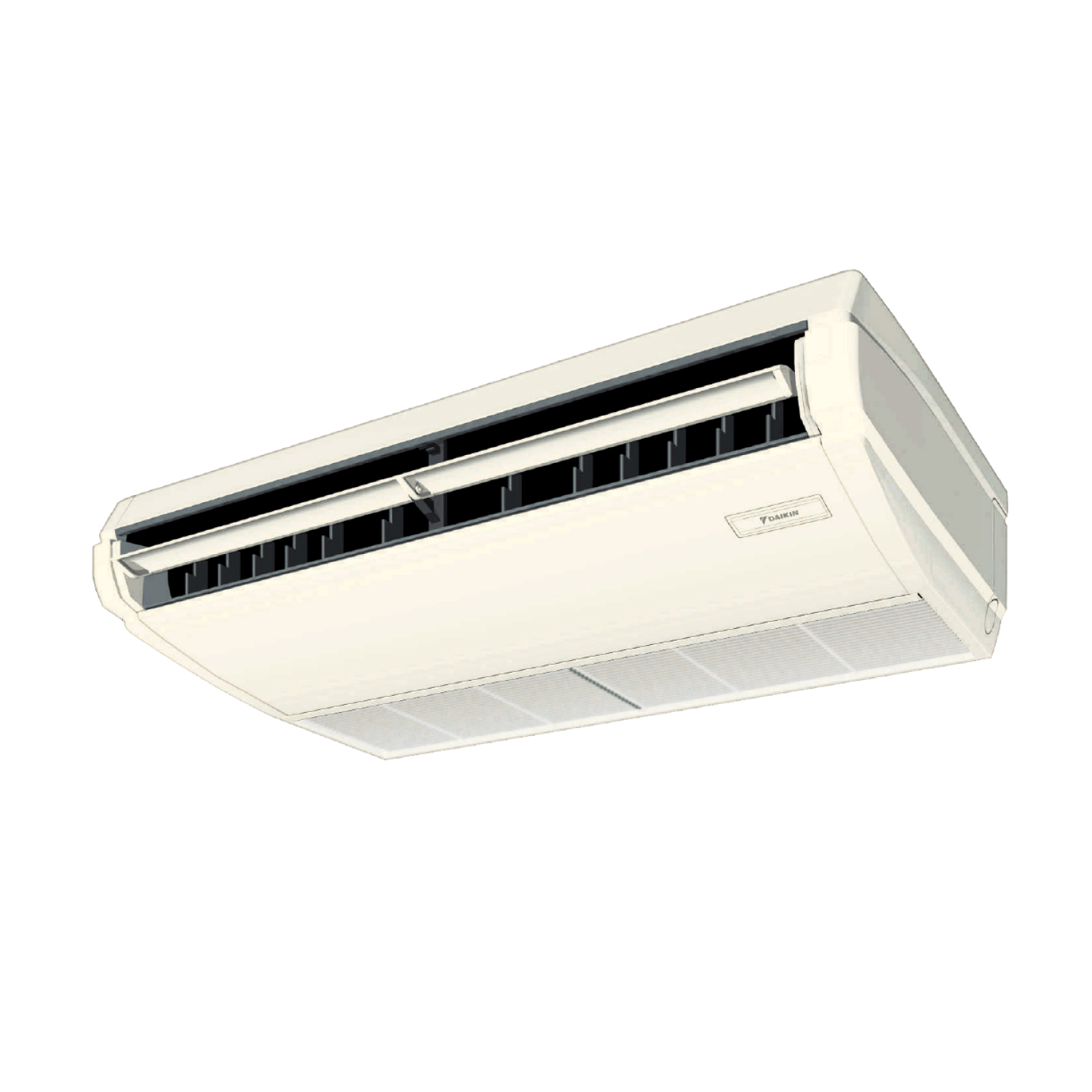

Indoor Unit
Airflow Rate
Cooling: 10 - 15 (3 steps) m³/min
Dimensions (H x W x D)
235 x 960 x 690235 x 960 x 690 mm
Sound Level
Cooling: 32 - 37 dB(A)
Weight
25 kg

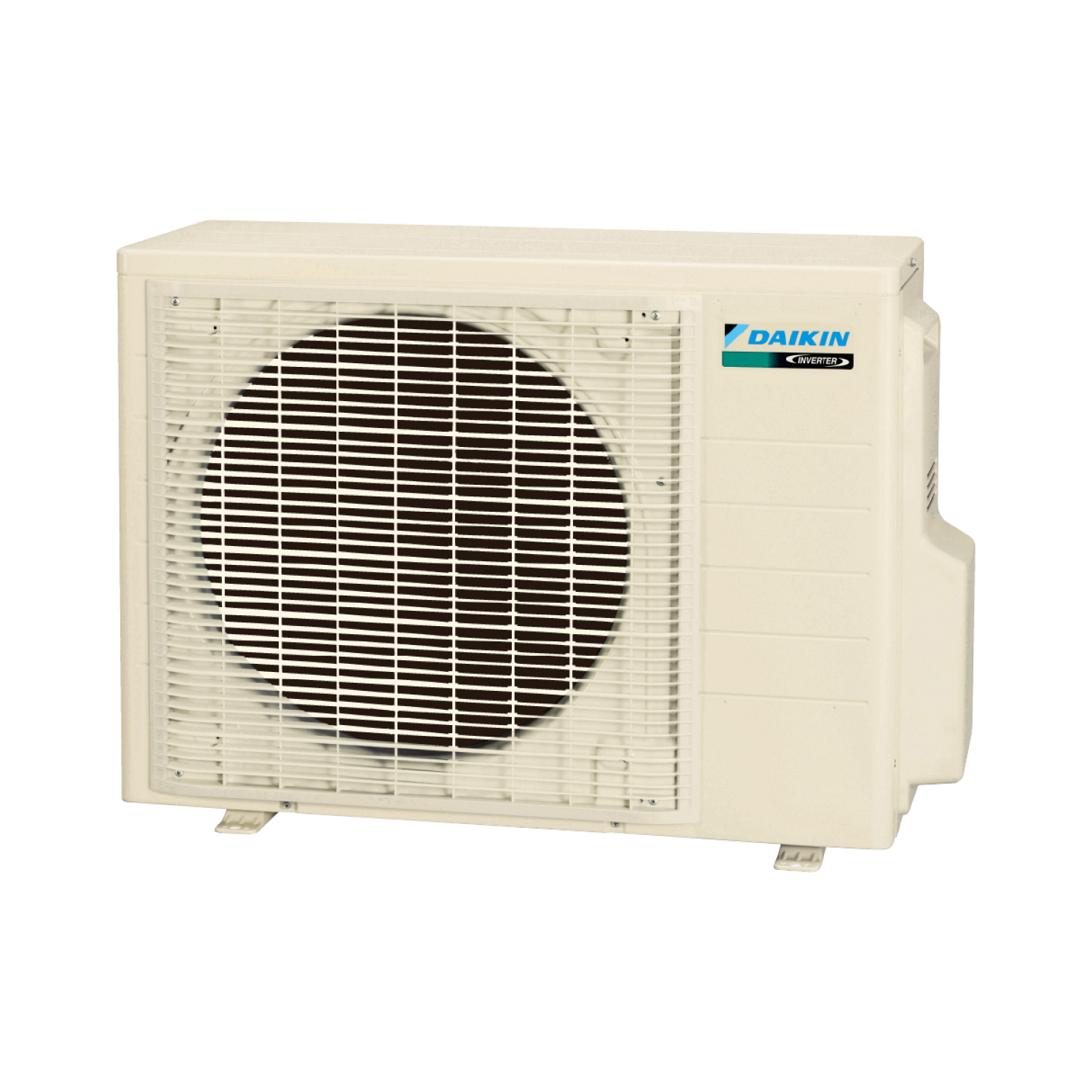

Outdoor Unit
Dimensions (H x W x D)
595 x 845 x 300 mm
Piping Connections
Gas: Ø15.9 mm
Liquid: Ø9.5 mm
Max. Height Difference
30 m
Weight
43 kg
Max. Piping Length
50 m
Accessories/Functions
Remote Controller Model (Wired)
BRC2E61 (optional)
Remote Controller Model (Wireless)
BRC7GA56 (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
