FVPR Inverter Air Cooled Packaged Split Type
  • Cooling only
  • Inverter
Select hp/model
Specifications
Model

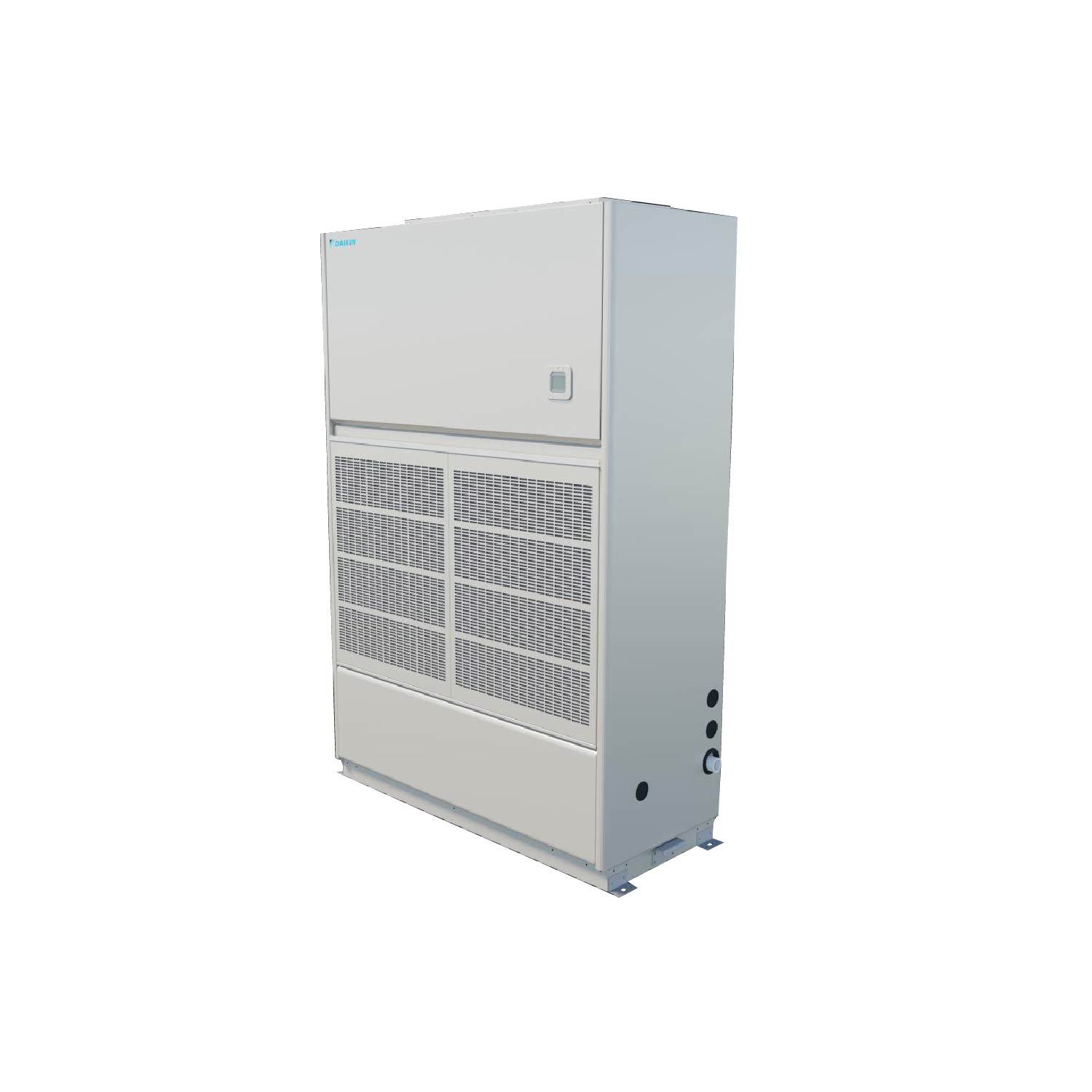

Indoor Unit
FVPR250QY1
Cooling Capacity
28.9 kW
99,000 Btu/h
Power Supply
indoor: 3Ø, 380-415V, 50Hz / outdoor: 3Ø, 380-415V, 50Hz

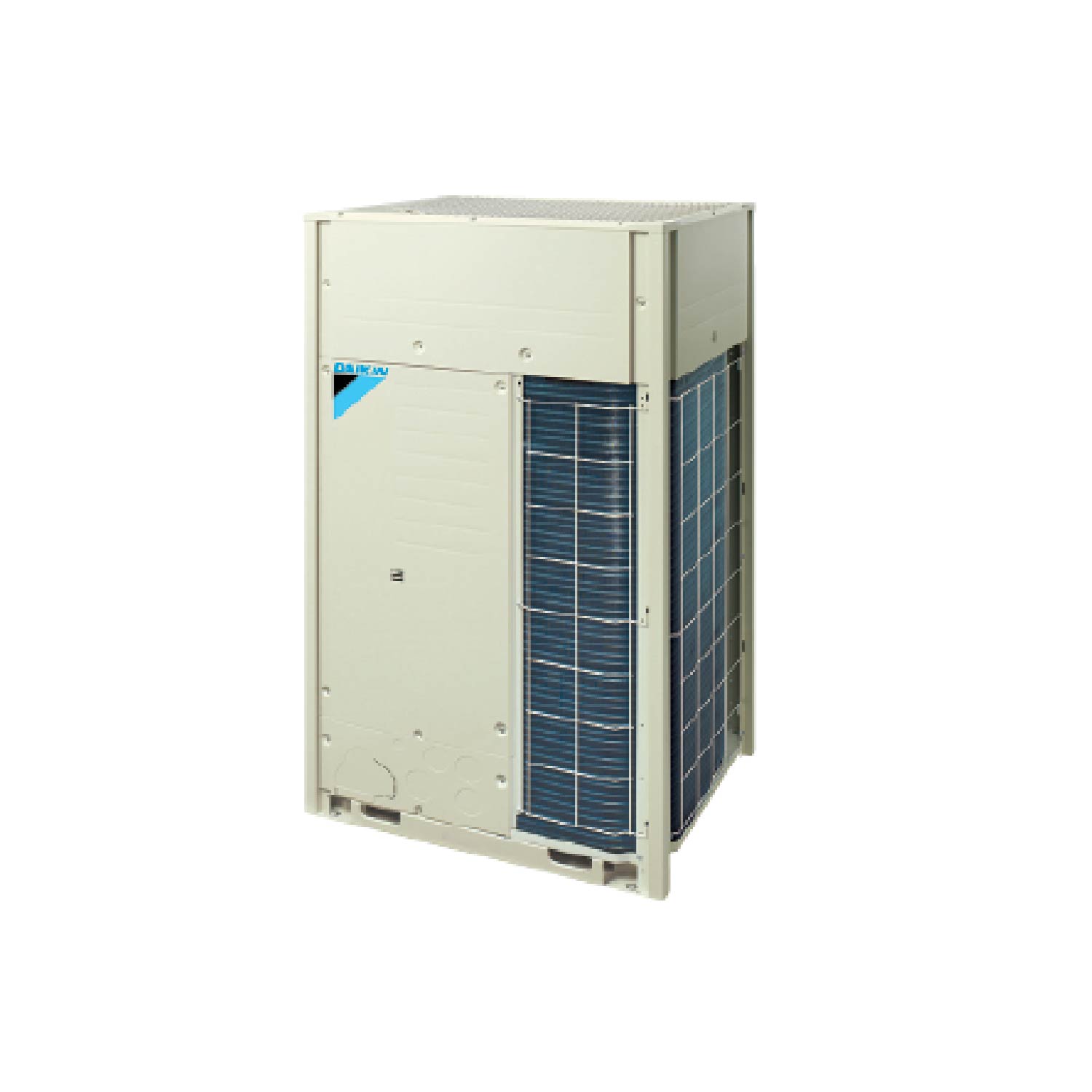

Outdoor Unit
RZUR250QY1
Power Consumption
Cooling: 10.9 kW
Indoor Unit
Airflow Rate
Cooling: 80 m³/min
Sound Level
Cooling: 61 dB(A)
Weight
151 kg
External Static Pressure
147 Pa
Dimensions (H x W x D)
1,740 x 1,170 x 510 mm
Outdoor Unit
Dimensions (H x W x D)
1,657 x 930 x 765 mm
Piping Connections
Gas: Ø22.2 mm
Liquid: Ø9.5 mm
Max. Height Difference
50 m
Weight
185 kg
Max. Piping Length
70 m

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m; level difference: 0m

Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of 1.5 m. During actual operation, these values are normally somewhat higher as a result of ambient conditions and oil recovery mode.
