FHNQ Non-inverter Ceiling Suspended Split Type
Specifications
Model

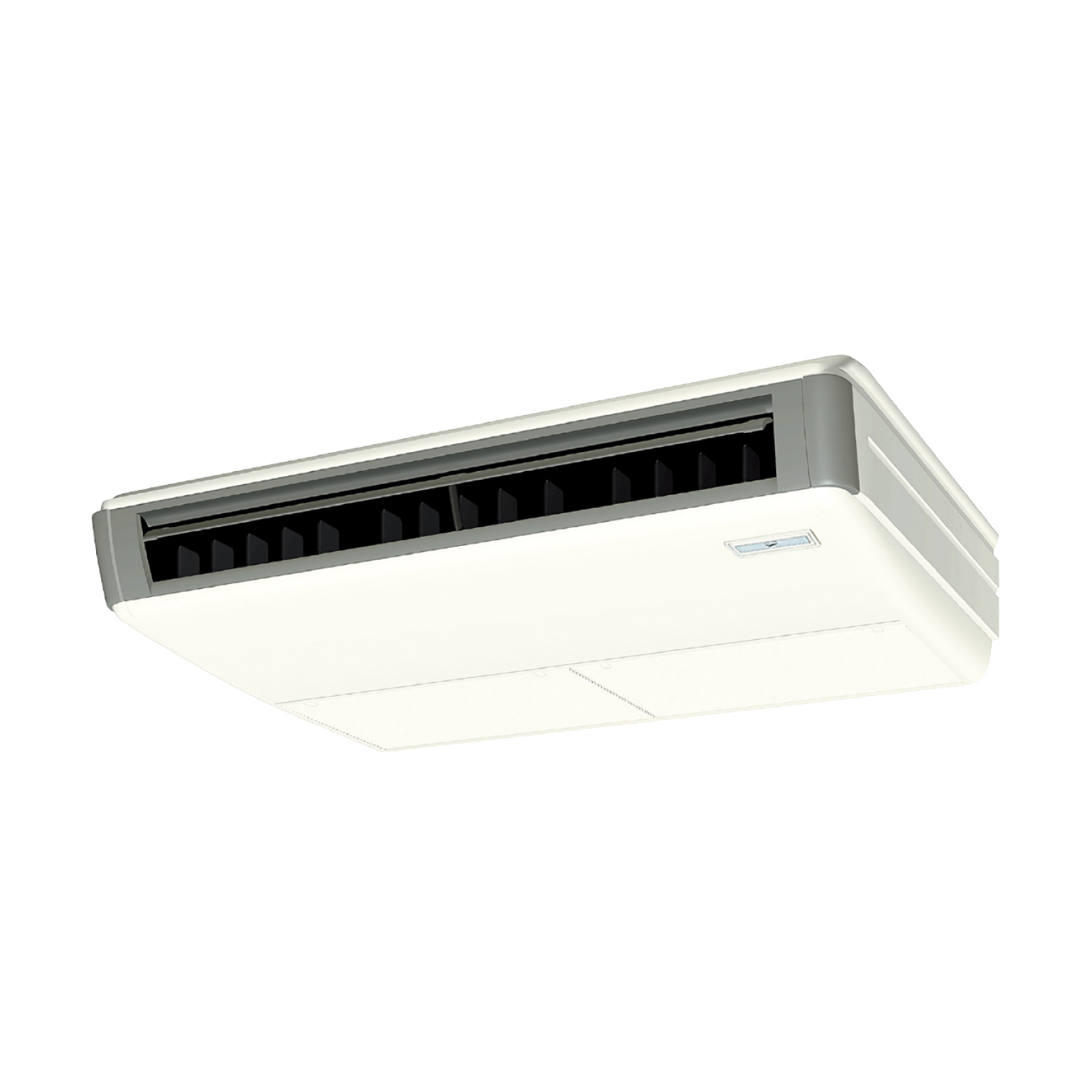

Indoor Unit
FHNQ40MV1
Cooling Capacity
3.8 kW
13,000 Btu/h
Power Supply
1Ø, 220-240V, 50Hz

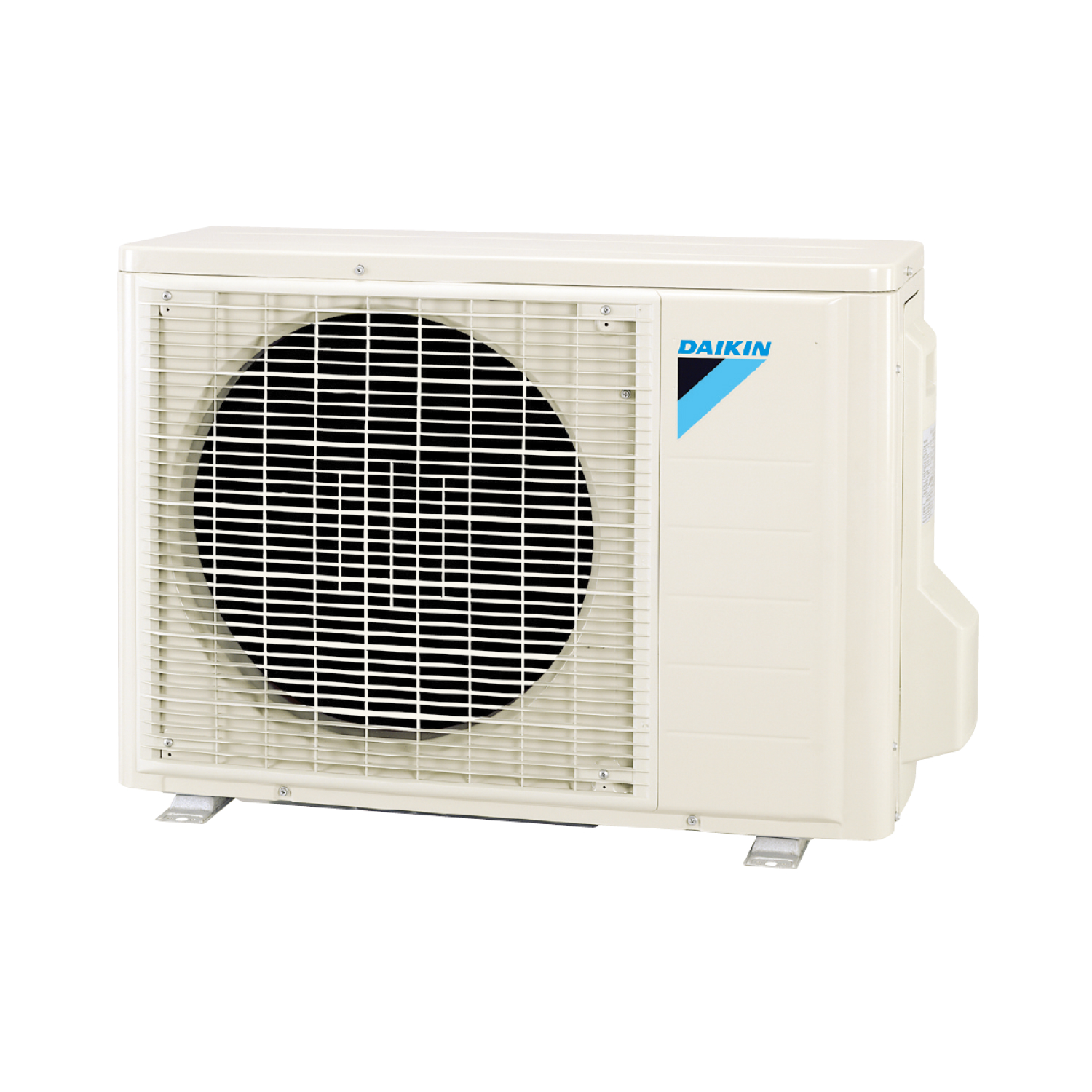

Outdoor Unit
RNQ40MV1
Power Consumption
Cooling: 1.58 kW
Indoor Unit
Airflow Rate
Cooling: 16 (2 steps) m³/min
Dimensions (H x W x D)
195 x 960 x 680 mm
Sound Level
Cooling: 39 - 43 dB(A)
Weight
24 kg
Outdoor Unit
Dimensions (H x W x D)
550 x 765 x 285 mm
Piping Connections
Gas: Ø12.7 mm
Liquid: Ø6.4 mm
Max. Height Difference
10 m
Weight
36 kg
Max. Piping Length
30 m
Accessories/Functions
Remote Controller Model (Wired)
BRC1NU61 (optional)
Remote Controller Model (Wireless)
BRC7NU66 (optional)
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m
