FCRN Non-inverter Cassette Split Type (Below 100kg Series)
Specifications
Model
Indoor Unit
FCRN50AV1
Cooling Capacity
5.42 kW
18,500 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Outdoor Unit
RN50BV19
Power Consumption
Cooling: 1.76 kW

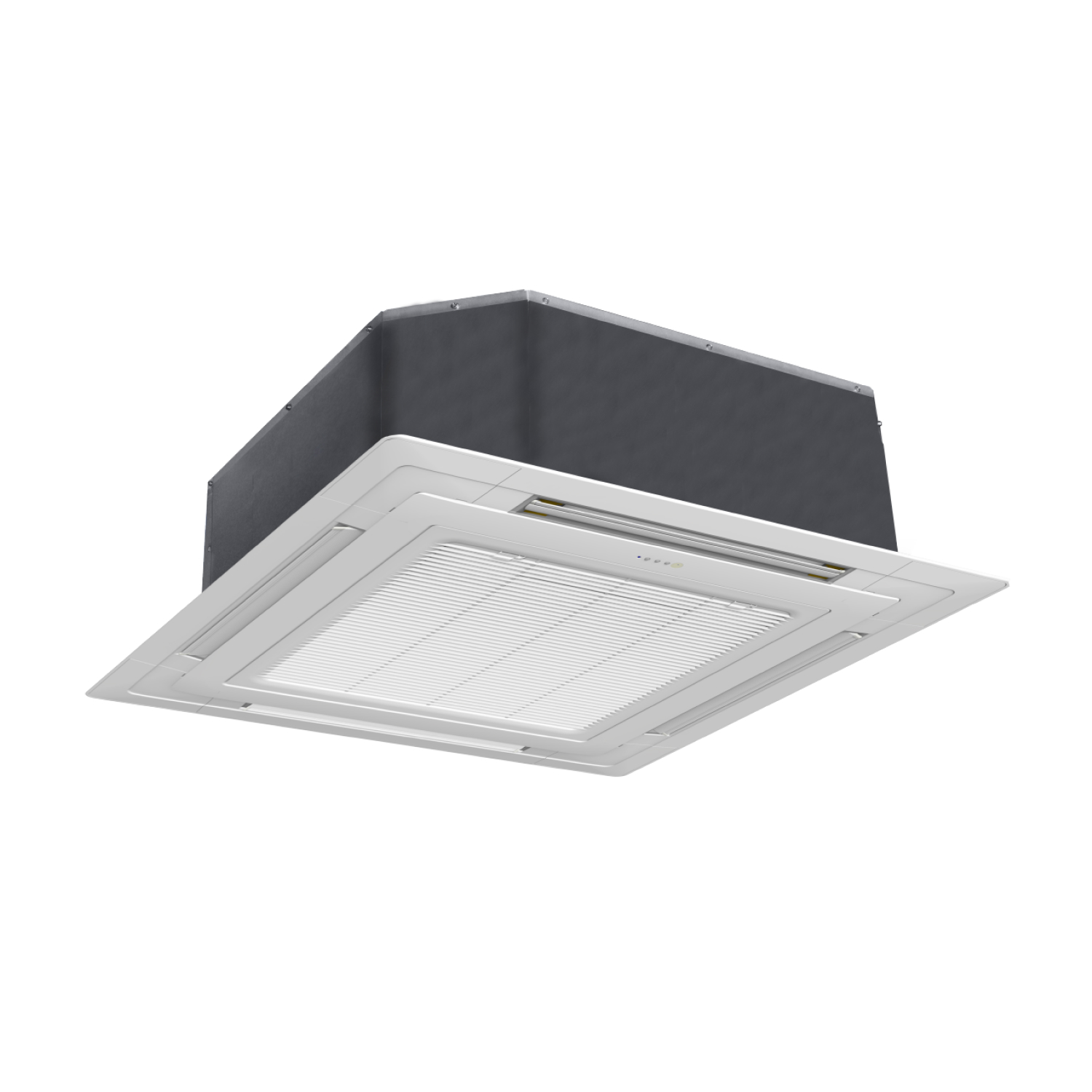

Indoor Unit
Airflow Rate
Cooling: 14.4 - 20.6 (3 steps) m³/min
Dimensions (H x W x D)
Panel: 55 x 950 x 950 mm
Body: 246 x 840 x 840 mm
Sound Level
Cooling: 29 - 38 dB(A)
Weight
Panel: 5 kg
Body: 22 kg

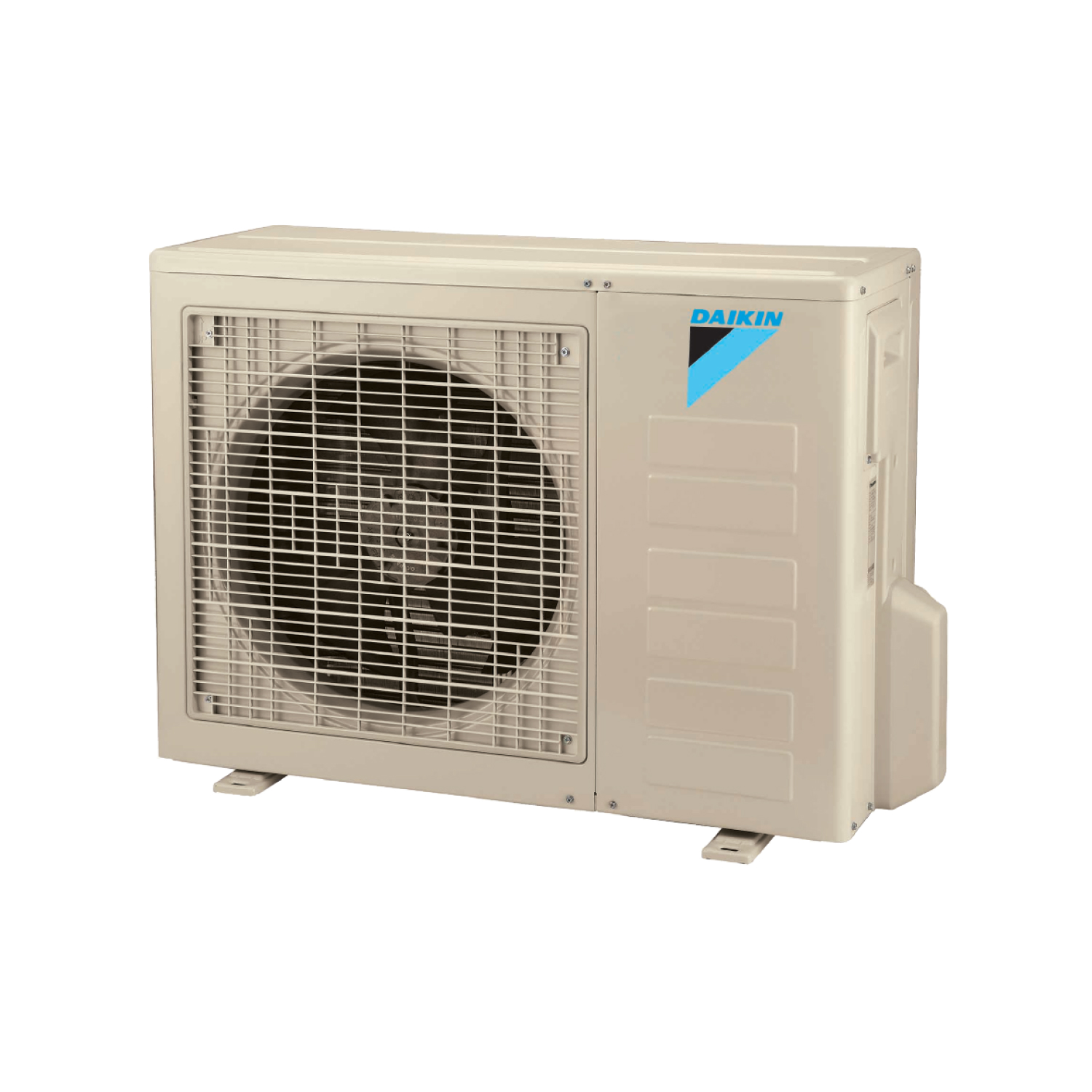

Outdoor Unit
Dimensions (H x W x D)
651 x 855 x 328 mm
Piping Connections
Gas: Ø12.7 mm
Liquid: Ø6.35 mm
Max. Height Difference
15 m
Weight
43 kg
Max. Piping Length
30 m
Accessories/Functions
Remote Controller Model (Wired)
BRC51A62 (optional)
Remote Controller Model (Wireless)
included
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
