FAA R32 Inverter Mounted Split Type
  • Cooling only
  • Inverter
Select hp/model
Specifications
Model

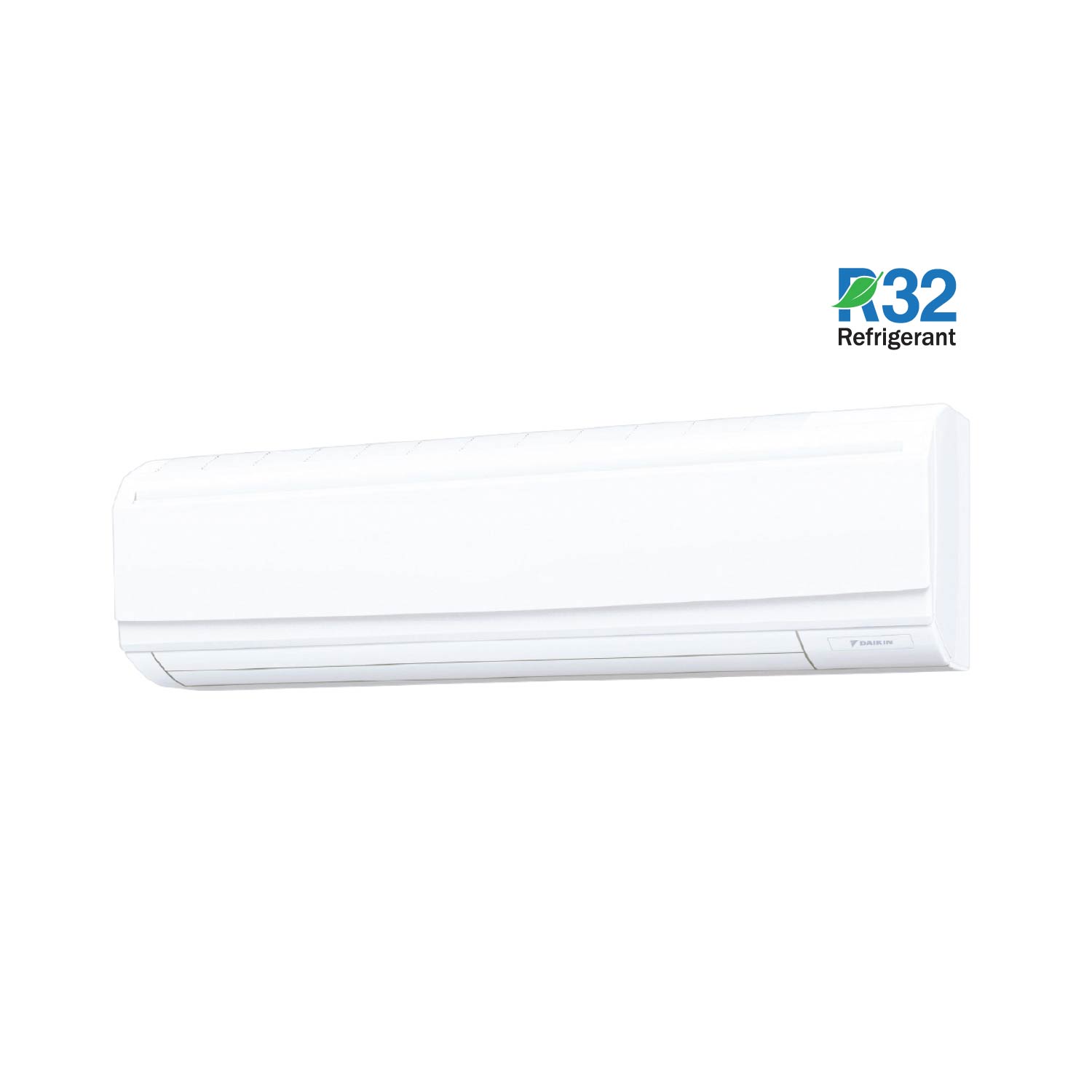

Indoor Unit
FAA76BVMAN
Cooling Capacity
7.6 kW
25,900 Btu/h
Power Supply
RZF76CVMN: 1Ø, 220-240V, 50Hz / RZF76CYMN: 3Ø, 380-415V, 50Hz
Outdoor Unit
RZF76CVMN / RZF76CYMN
Power Consumption
Cooling: 2.3 kW
Indoor Unit
Airflow Rate
Cooling: 12.9 - 16.9 (3 steps) m³/min
Dimensions (H x W x D)
290 x 1,050 x 238 mm
Sound Level
Cooling: 40 - 45 dB(A)
Weight
13 kg

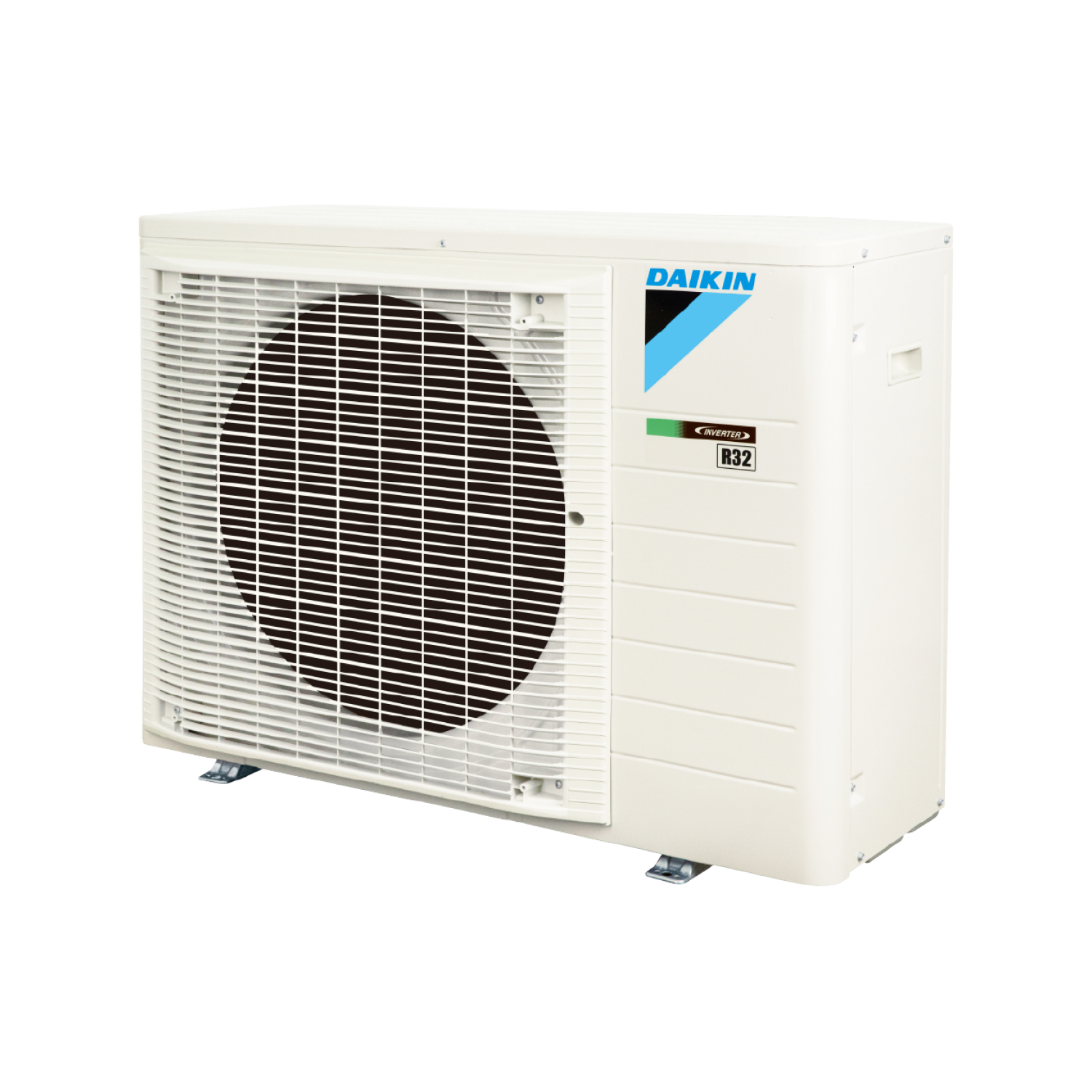

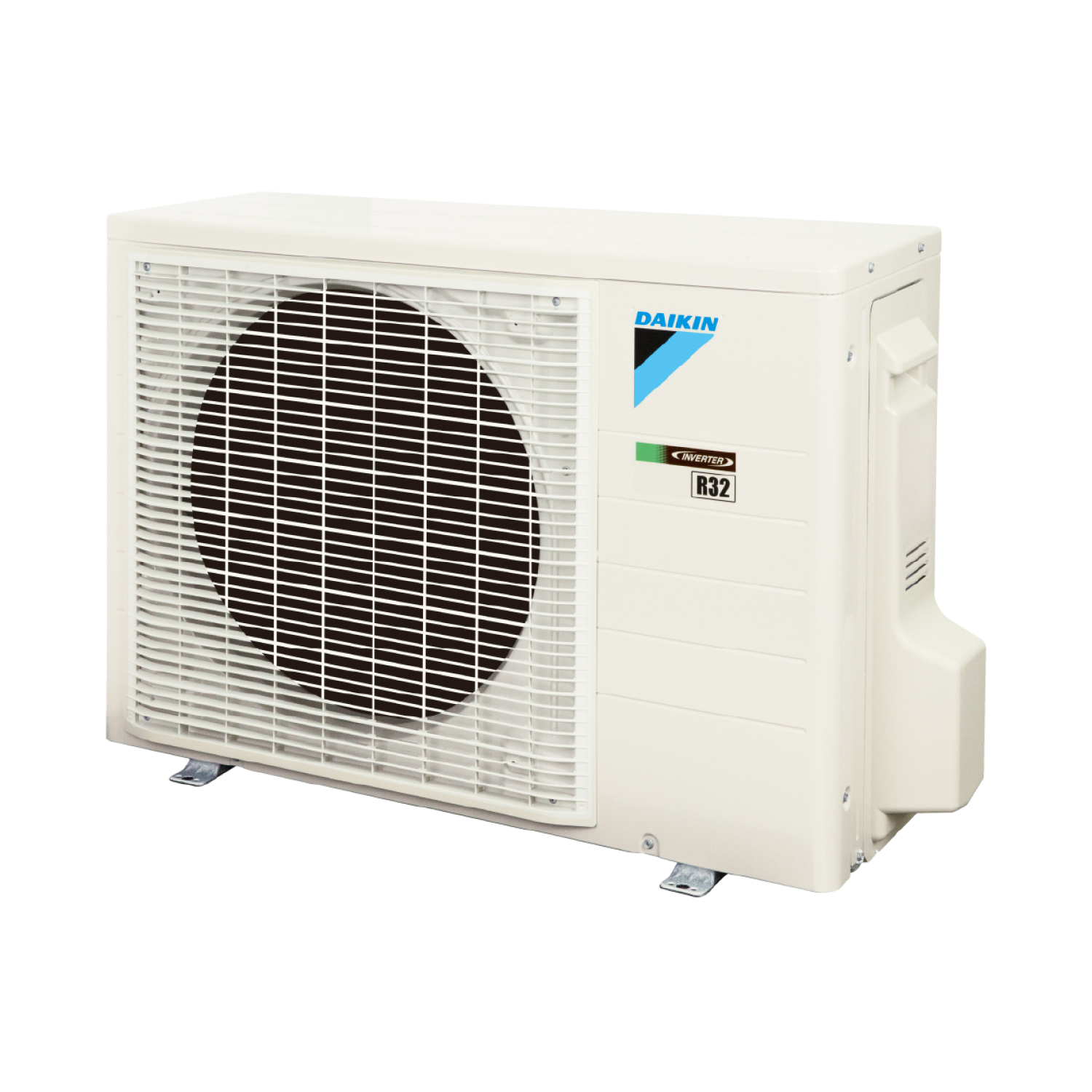

Outdoor Unit
Dimensions (H x W x D)
RZF76CVMN: 595 x 845 x 300 / RZF76CYMN: 695 x 930 x 350 mm
Piping Connections
Gas: Ø15.9 mm
Liquid: Ø9.5 mm
Max. Height Difference
30 m
Weight
RZF76CVMN: 41 / RZF76CYMN: 48 kg
Max. Piping Length
50 m
Accessories/Functions
Remote Controller Model (Wired)
BRC1E63 (optional)
Remote Controller Model (Wireless)
BRC7EB519 (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m

R32 is classified as mildly flammable refrigerant. Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation.
