FBQ Inverter Middle Static Pressure Duct Split Type (Plastic Blower B Series)
Specifications
Model

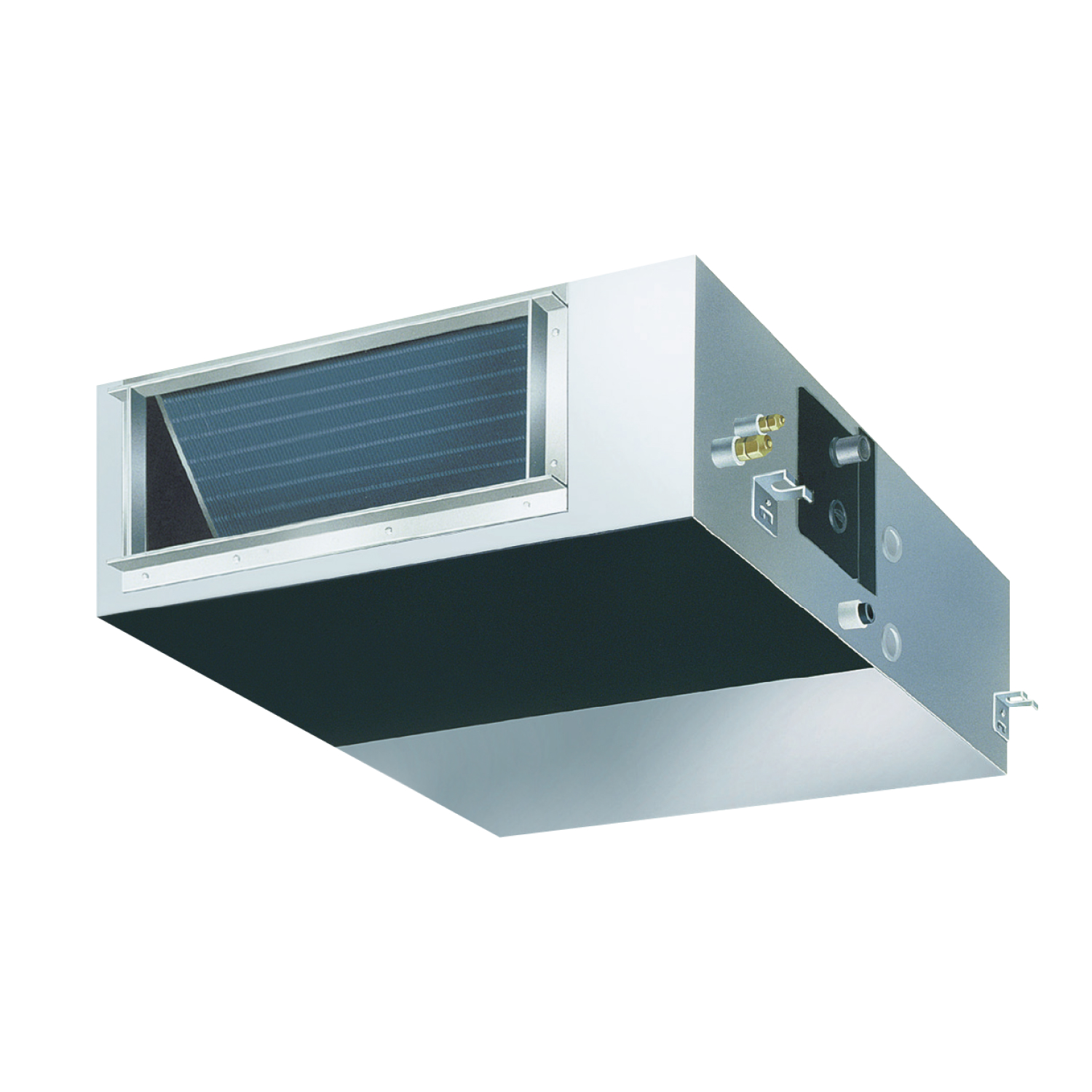

Indoor Unit
FBQ50BV1A
Cooling Capacity
5 kW
17,100 Btu/h
Power Consumption
Cooling: 1.98 kW
Heating: 1.93 kW

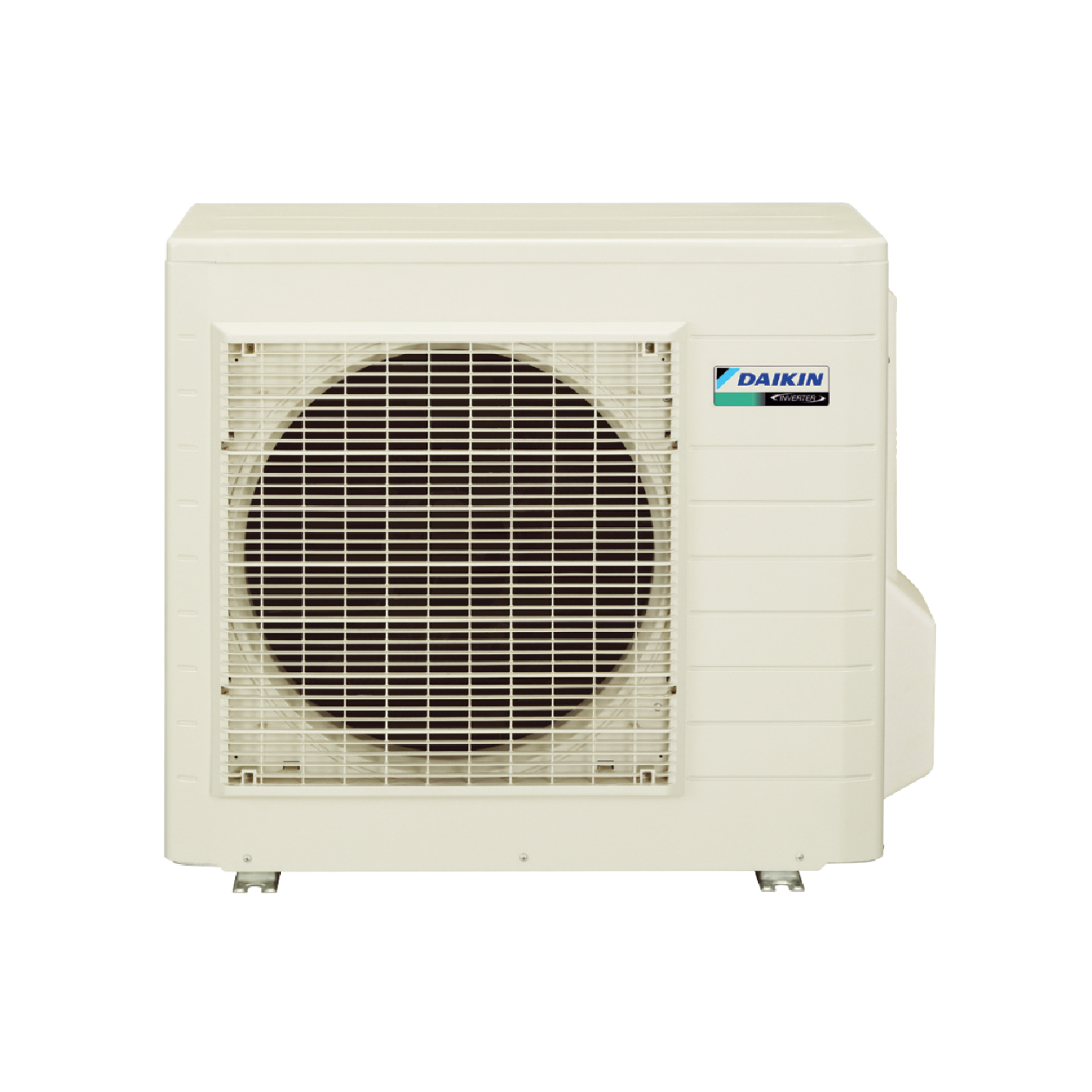

Outdoor Unit
RXS50FVMA
Heating Capacity
6 kW
20,500 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Indoor Unit
Airflow Rate
Cooling: 9 - 13 (2 steps) m³/min
Heating: 10 - 14 (2 steps) m³/min
Sound Level
Cooling: 29 - 33 dB(A)
Heating: 29 - 33 dB(A)
Weight
34 kg
External Static Pressure
20 - 88 Pa
Dimensions (H x W x D)
300 x 700 x 800 mm
Outdoor Unit
Dimensions (H x W x D)
735 x 825 x 300 mm
Piping Connections
Gas: Ø12.7 mm
Liquid: Ø6.4 mm
Max. Height Difference
20 m
Weight
48 kg
Max. Piping Length
30 m
Accessories/Functions
Remote Controller Model (Wired)
BRC2E61 (optional)
Remote Controller Model (Wireless)
BRC4C62 (optional)
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 7.5m
