FDXS Inverter Low Static Pressure Duct Split Type (Plastic Blower Series)
Specifications
Model

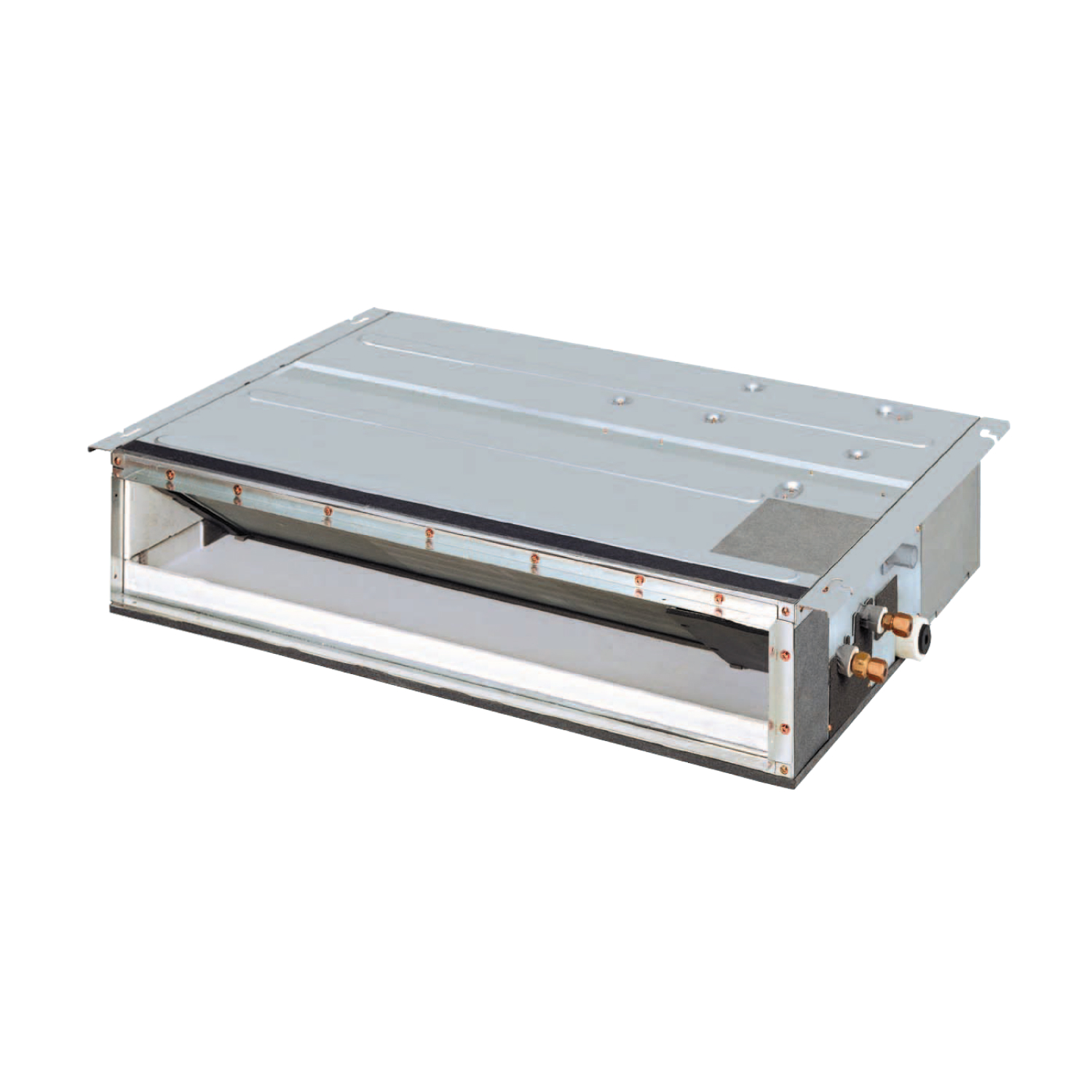

Indoor Unit
FDXS25CVMA
Cooling Capacity
2.4 kW
8,150 Btu/h
Power Consumption
Cooling: 0.69 kW
Heating: 0.91 kW

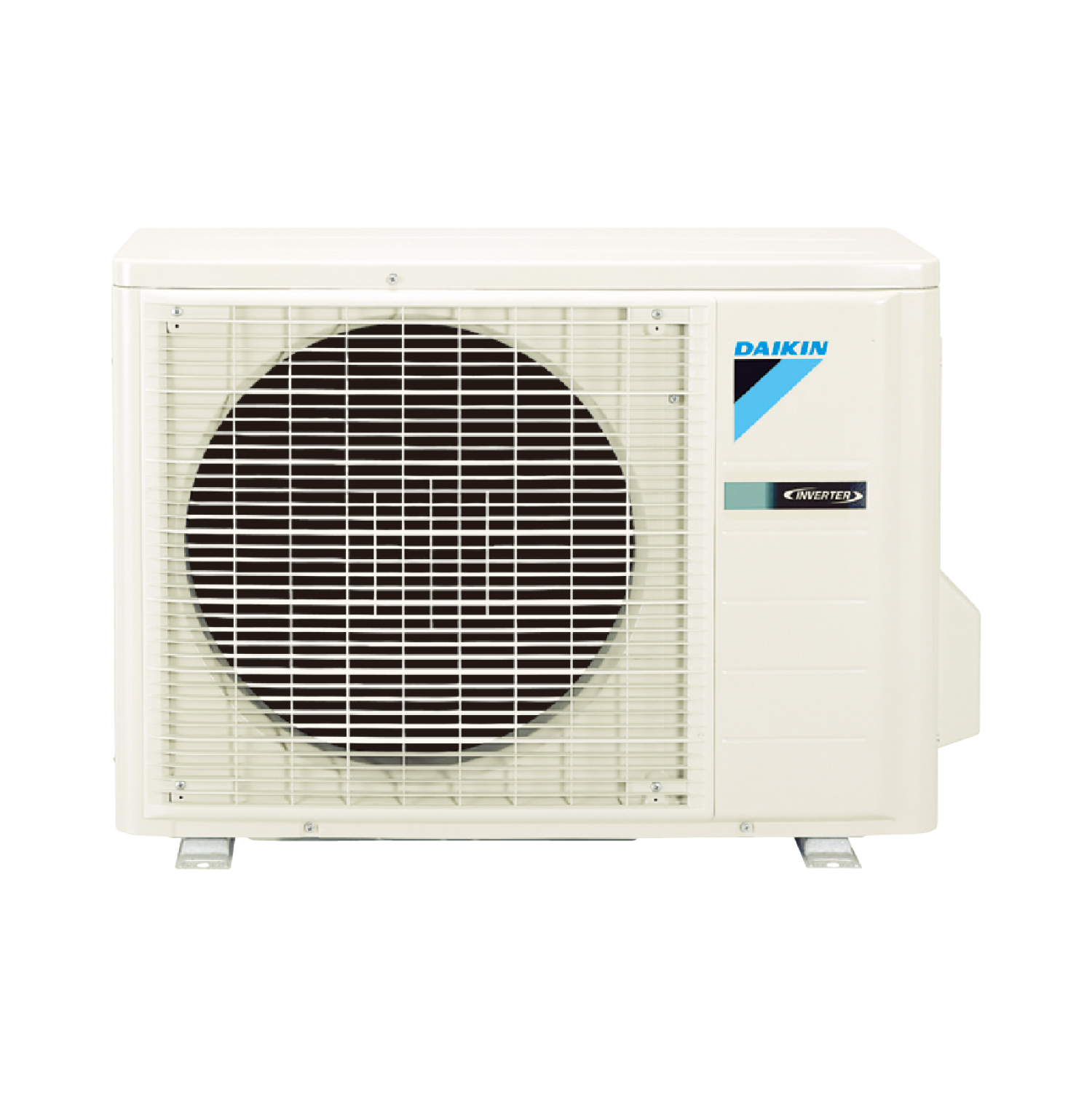

Outdoor Unit
RXS25EBVMA
Heating Capacity
3.2 kW
10,900 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Indoor Unit
Airflow Rate
Cooling: 6.7 - 9.5 (5 steps) m³/min
Heating: 6.7 - 9.5 (5 steps) m³/min
Sound Level
Cooling: 29 - 35 dB(A)
Heating: 29 - 35 dB(A)
Weight
25 kg
External Static Pressure
40 Pa
Dimensions (H x W x D)
200 x 900 x 620 mm
Outdoor Unit
Dimensions (H x W x D)
550 x 765 x 285 mm
Piping Connections
Gas: Ø9.5 mm
Liquid: Ø6.4 mm
Max. Height Difference
15 m
Weight
34 kg
Max. Piping Length
20 m
Accessories/Functions
Remote Controller Model (Wired)
BRC073A5 (optional; 3 m (BRCW901A03) / 8 m (BRCW901A08) wired remote controller cord)
Remote Controller Model (Wireless)
included
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 7.5m
