Specifications
Model

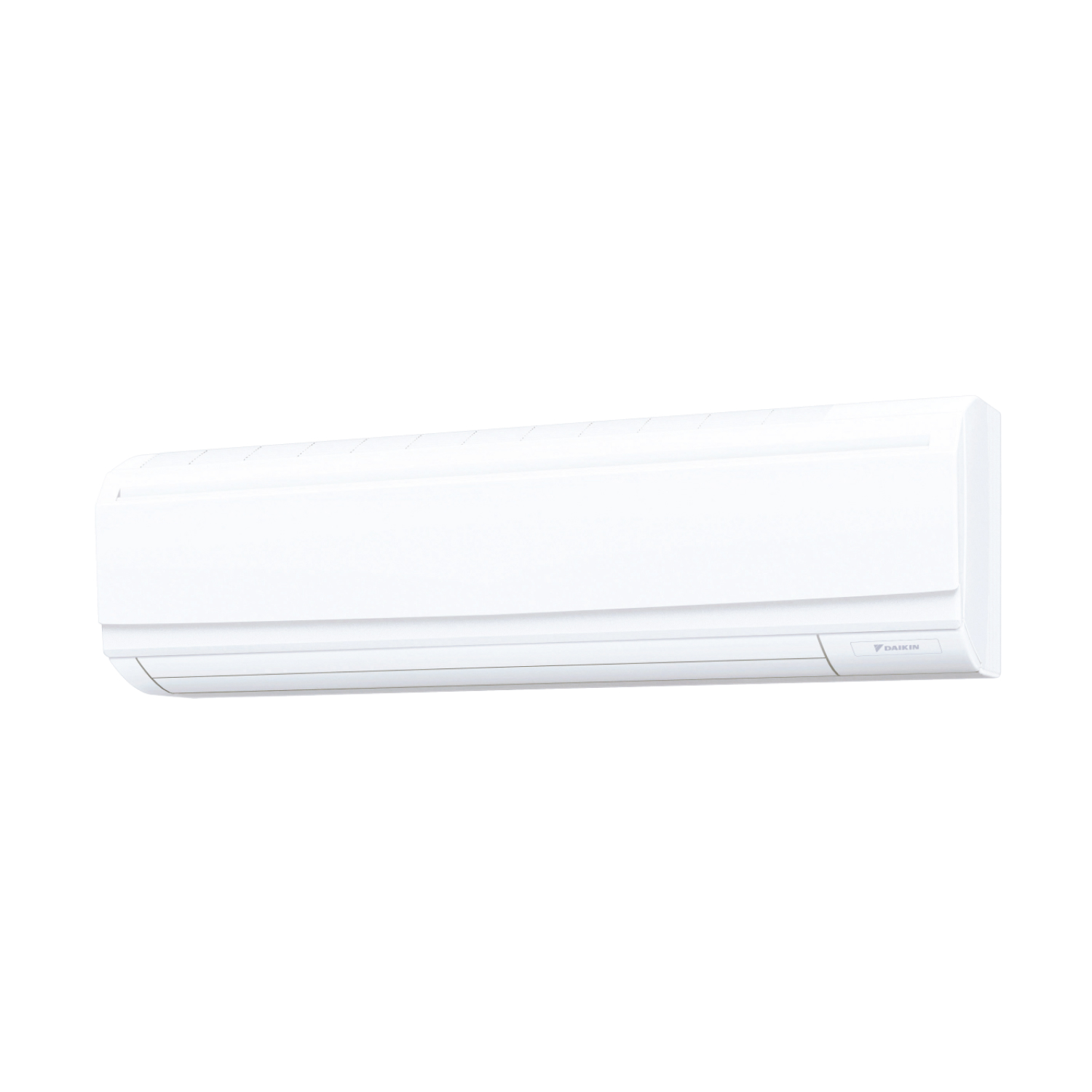

Indoor Unit
FAQ100CVEA
Cooling Capacity
10 kW
34,100 Btu/h
Power Supply
3Ø, 380-415V, 50Hz

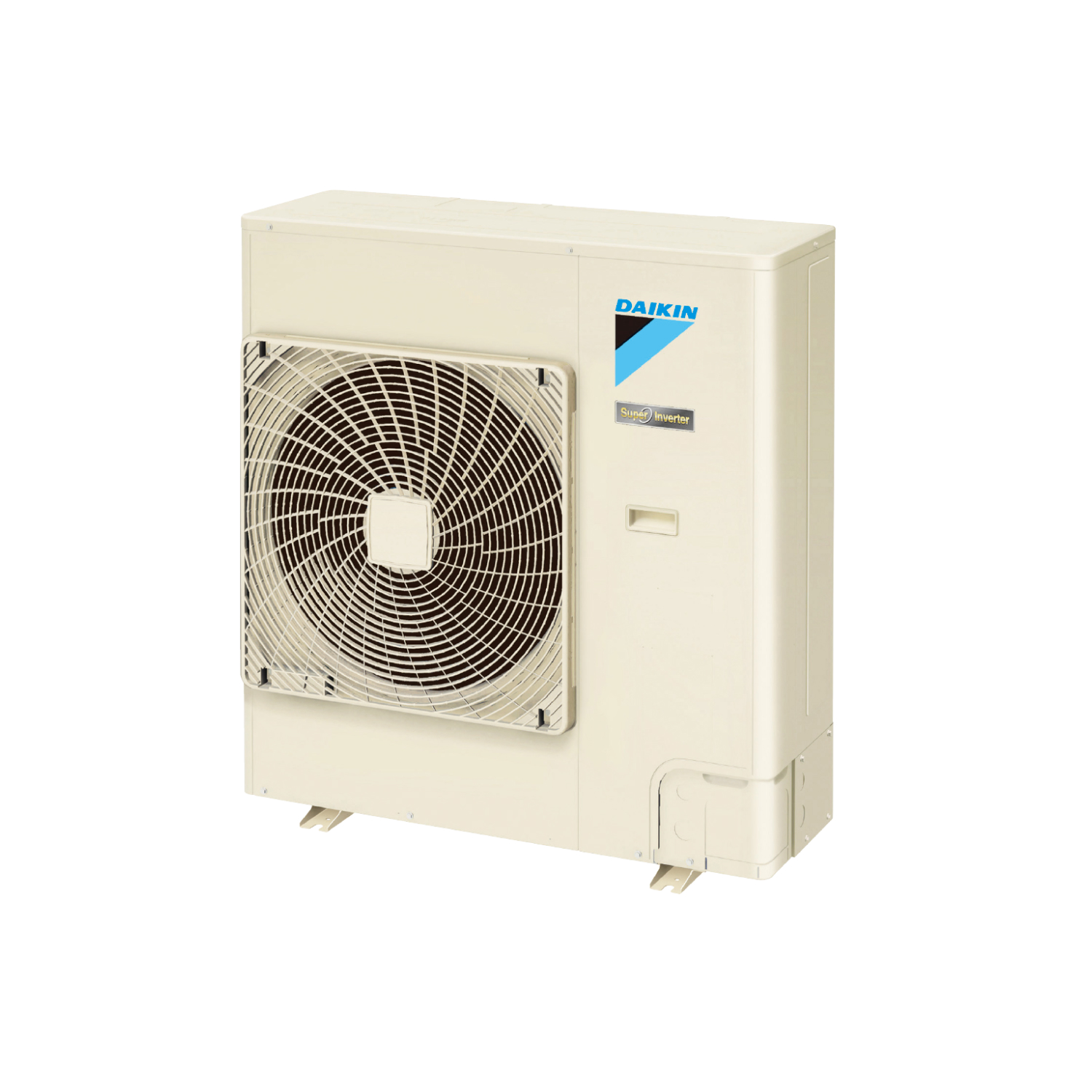

Outdoor Unit
RZR100MYM
Power Consumption
Cooling: 3.37 kW
Indoor Unit
Airflow Rate
Cooling: 19 - 26 (3 steps) m³/min
Dimensions (H x W x D)
340 x 1,200 x 240 mm
Sound Level
Cooling: 41 - 49 dB(A)
Weight
17 kg
Outdoor Unit
Dimensions (H x W x D)
990 x 940 x 320 mm
Piping Connections
Gas: Ø15.9 mm
Liquid: Ø9.5 mm
Max. Height Difference
30 m
Weight
73 kg
Max. Piping Length
50 m
Accessories/Functions
Remote Controller Model (Wired)
BRC2E61 (optional)
Remote Controller Model (Wireless)
BRC7EB519 (optional)
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m
