FDMC R32 Non-inverter Middle Static Pressure Duct Split Type (Metal Blower Series)
- Cooling only
Specifications
Model
Indoor Unit
FDMC50AV1H
Cooling Capacity
5.42 kW
18,500 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Outdoor Unit
RC50AGV1H
Power Consumption
Cooling: 1.75 kW

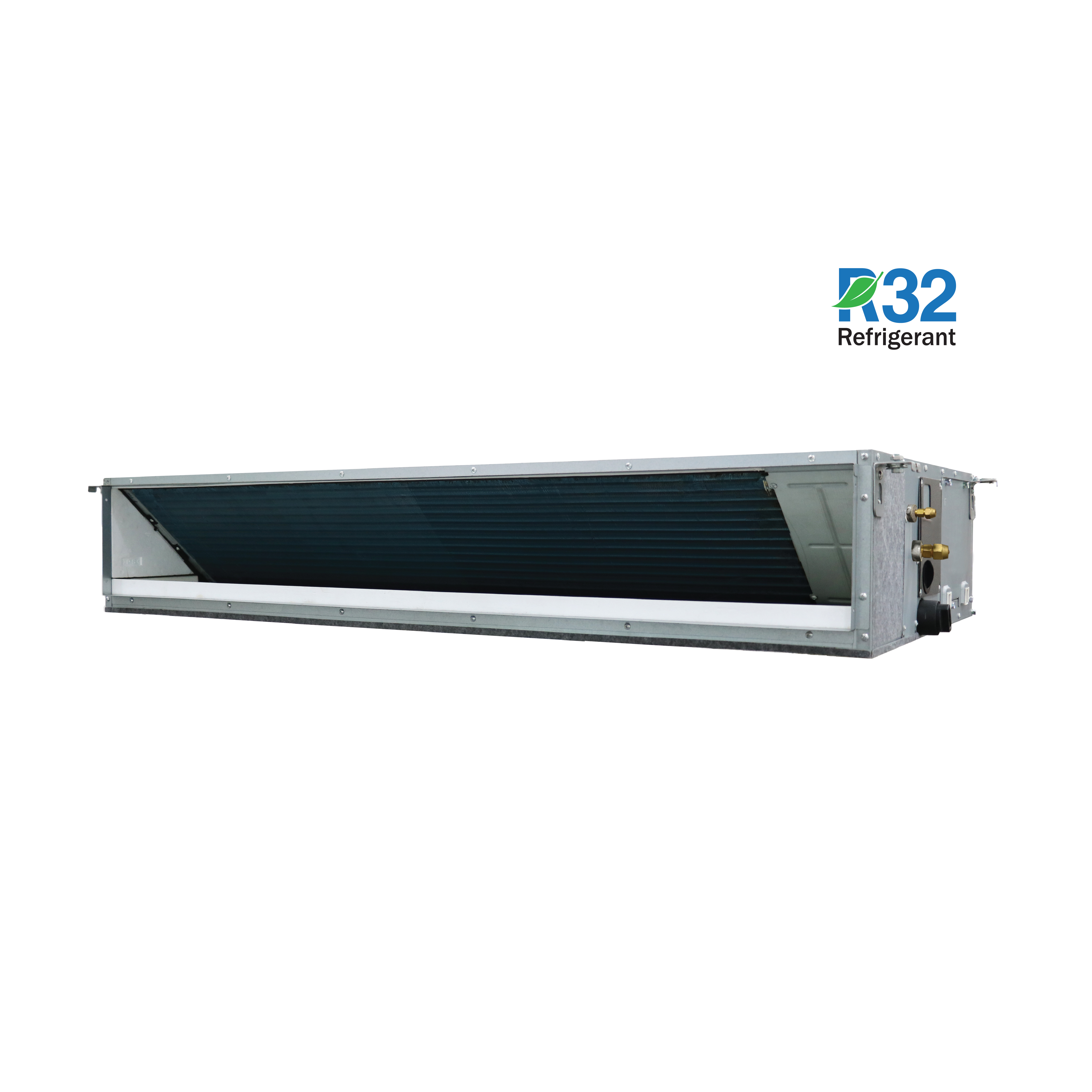

Indoor Unit
Airflow Rate
Cooling: 13.0 - 16.7 (3 steps) m³/min
Sound Level
Cooling: 37 - 43 dB(A)
Weight
29 kg
External Static Pressure
30 / 50 (standard / high) Pa
Dimensions (H x W x D)
250 x 700 x 700 mm

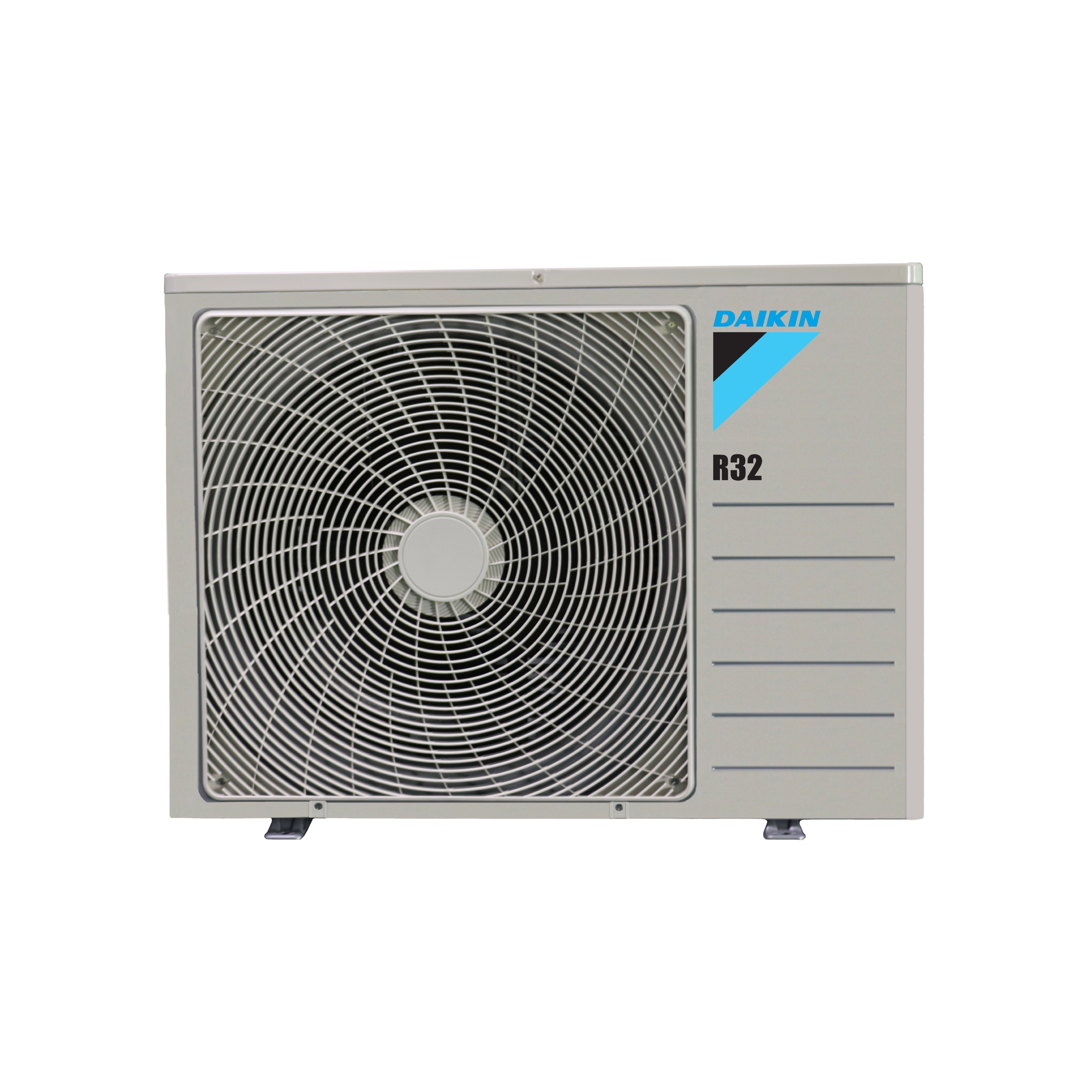

Outdoor Unit
Dimensions (H x W x D)
615 x 845 x 300 mm
Piping Connections
Gas: Ø12.7 mm
Liquid: Ø6.4 mm
Max. Height Difference
20 m
Weight
40 kg
Max. Piping Length
35 m
Accessories/Functions
Remote Controller Model (Wired)
BRC51A62 (standard)
Remote Controller Model (Wireless)
BRC52A62 (optional)*
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
*Must be used together with wired remote control
