FDBC R32 Non-inverter Low Static Pressure Duct Split Type (Metal Blower Series)
- Cooling only
Specifications
Model

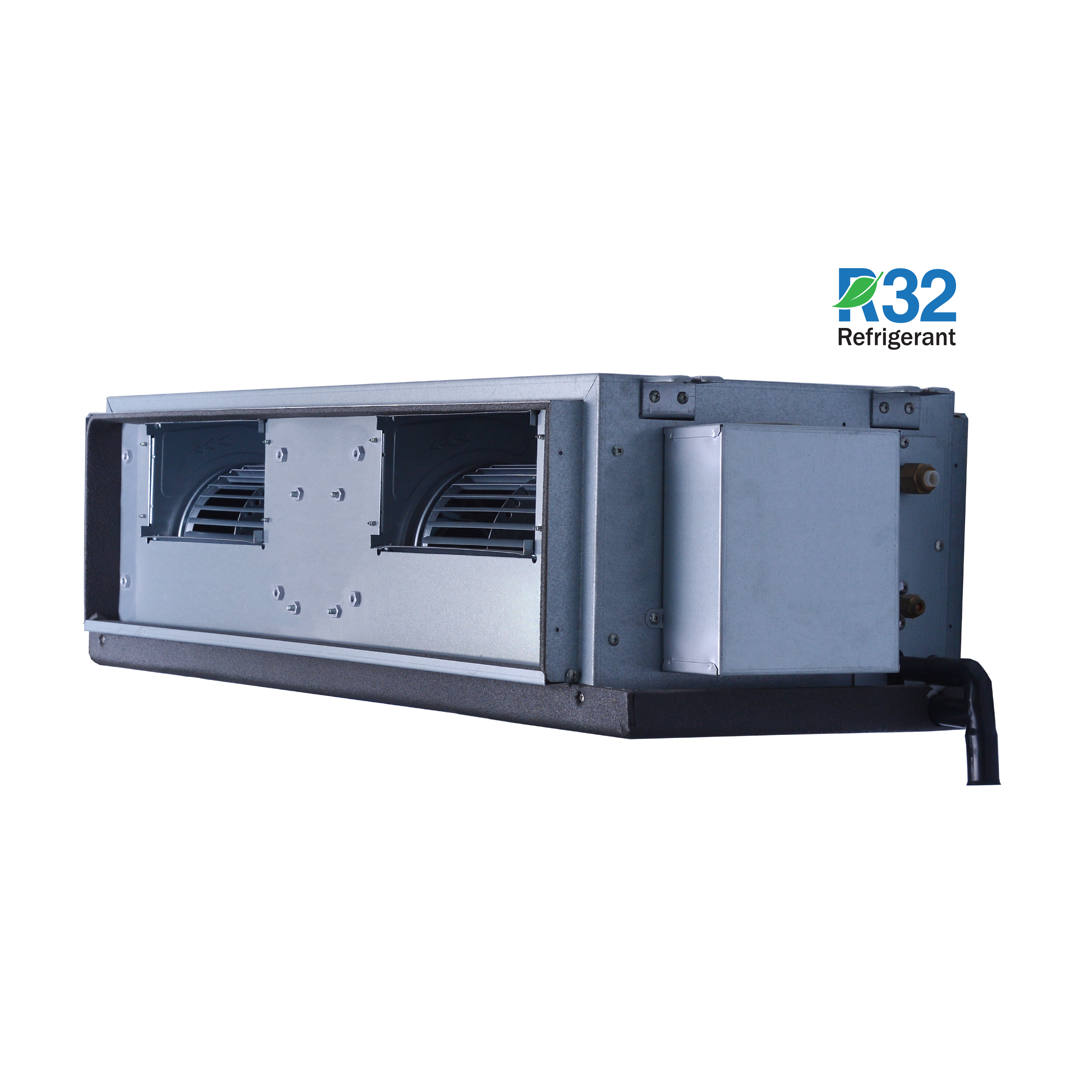

Indoor Unit
FDBC35AV1H
Cooling Capacity
3.52 kW
12,000 Btu/h
Power Supply
1Ø, 220-240V, 50Hz

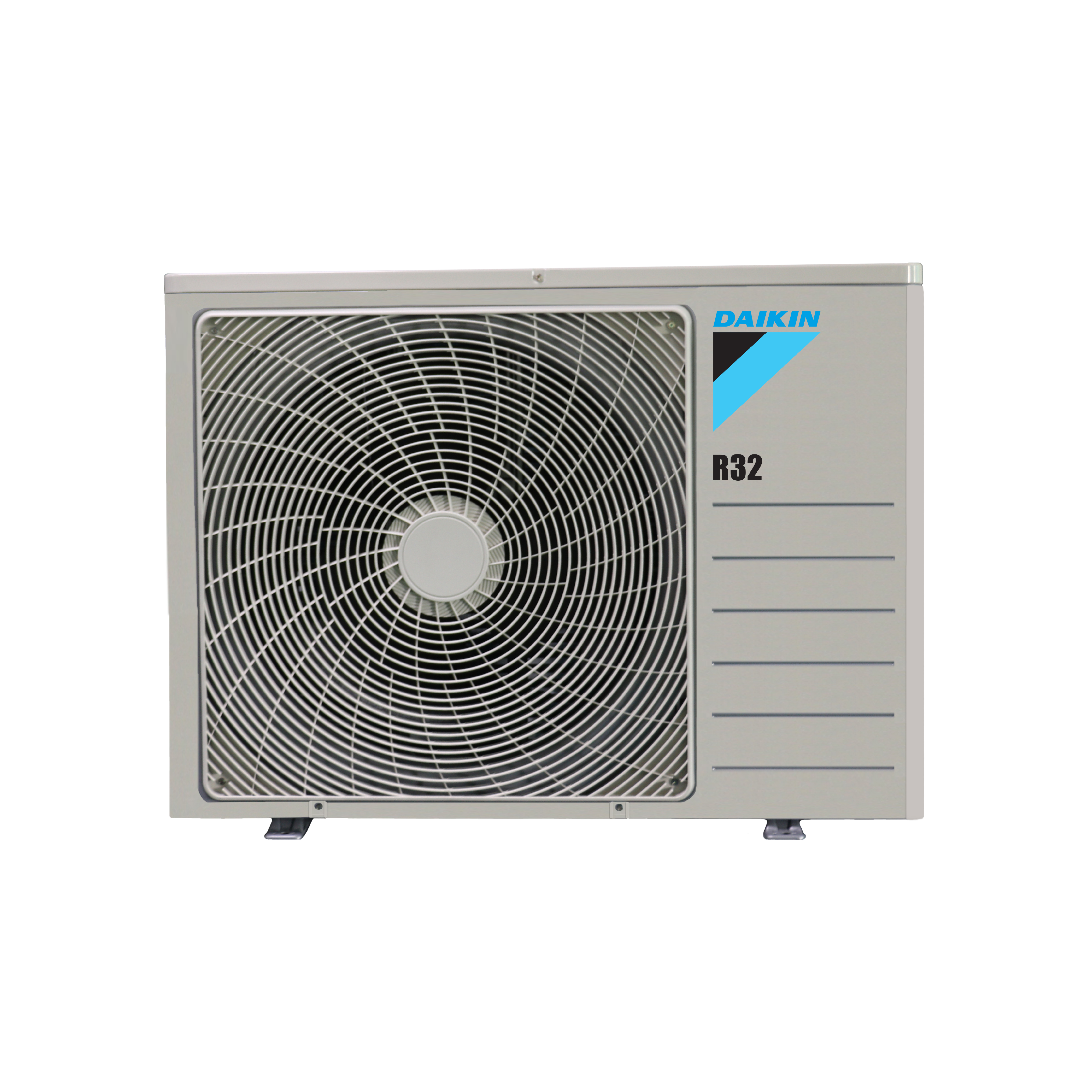

Outdoor Unit
RC35AGV1H
Power Consumption
Cooling: 1.14 kW
Indoor Unit
Airflow Rate
Cooling: 10.5 - 14.4 (3 steps) m³/min
Sound Level
Cooling: 32 - 39 dB(A)
Weight
22 kg
External Static Pressure
36 / - (standard / high) Pa
Dimensions (H x W x D)
261 x 905 x 411 mm
Outdoor Unit
Dimensions (H x W x D)
550 x 658 x 273 mm
Piping Connections
Gas: Ø9.5 mm
Liquid: Ø6.4 mm
Max. Height Difference
15 m
Weight
28 kg
Max. Piping Length
25 m
Accessories/Functions
Remote Controller Model (Wired)
BRC51A62 (standard)
Remote Controller Model (Wireless)
BRC52A62 (optional)*
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
*Must be used together with wired remote control
