FCC R32 Non-inverter Cassette Split Type

Back

Select hp/model

Paired model:

Outdoor unit - RC50AGV1H

Specifications

Model

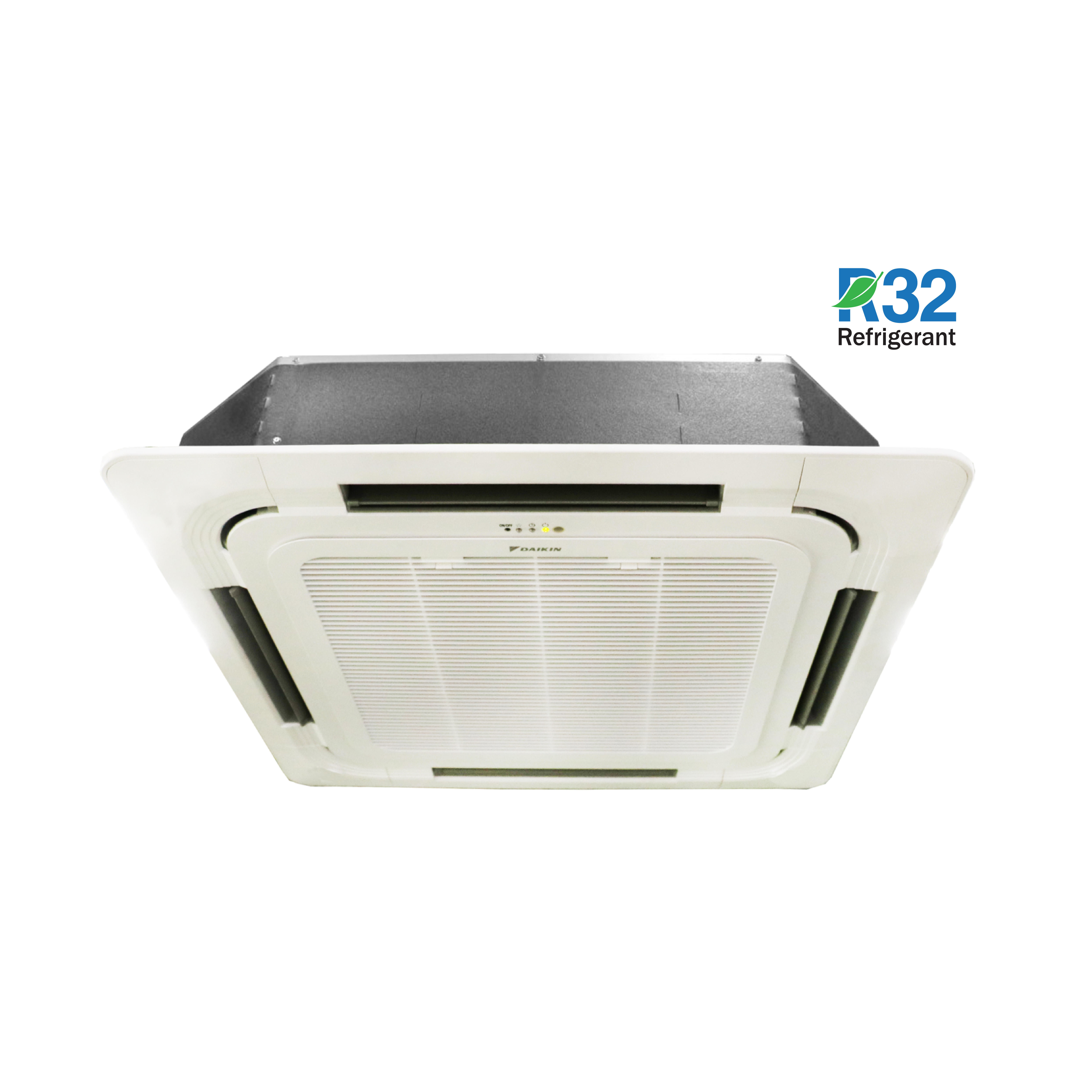

Indoor Unit

FCC50AV1H

Cooling Capacity

5.42 kW

18,500 Btu/h

Power Supply

1Ø, 220-240V, 50Hz

Outdoor Unit

RC50AGV1H

Power Consumption

Cooling: 1.68 kW

Indoor Unit

Airflow Rate

Cooling: 12.5 - 23.8 (4 steps) m³/min

Dimensions (H x W x D)

Panel: 69 x 950 x 950 mm

Body: 246 x 840 x 840 mm

Sound Level

Cooling: 35 - 42 dB(A)

Weight

Panel: 5 kg

Body: 22 kg

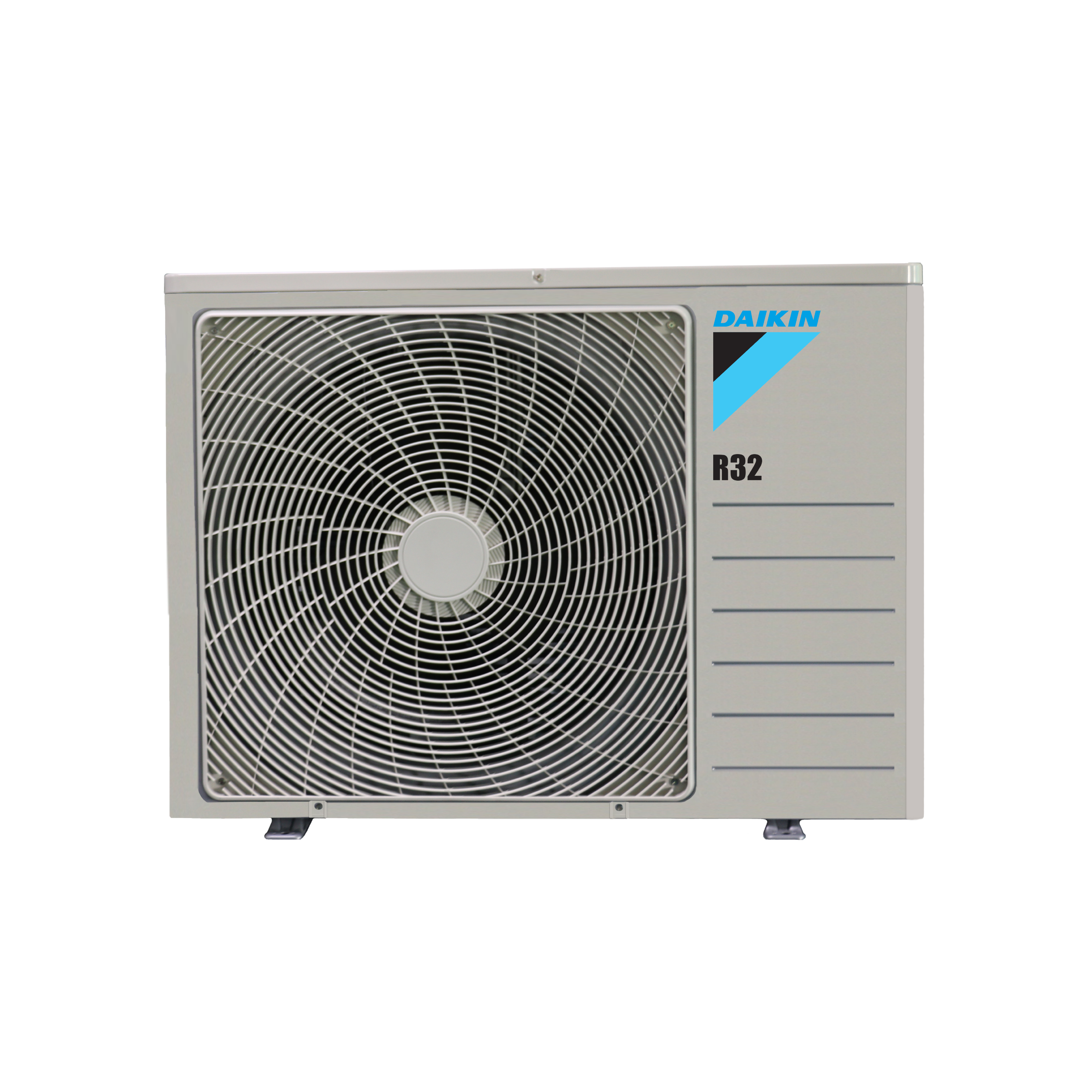

Outdoor Unit

Dimensions (H x W x D)

615 x 845 x 300 mm

Piping Connections

Gas: Ø12.7 mm

Liquid: Ø6.4 mm

Max. Height Difference

20 m

Weight

40 kg

Max. Piping Length

35 m

Accessories/Functions

Remote Controller Model (Wired)

BRC51A62 (optional)

Remote Controller Model (Wireless)

BRC52A62 (standard)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
