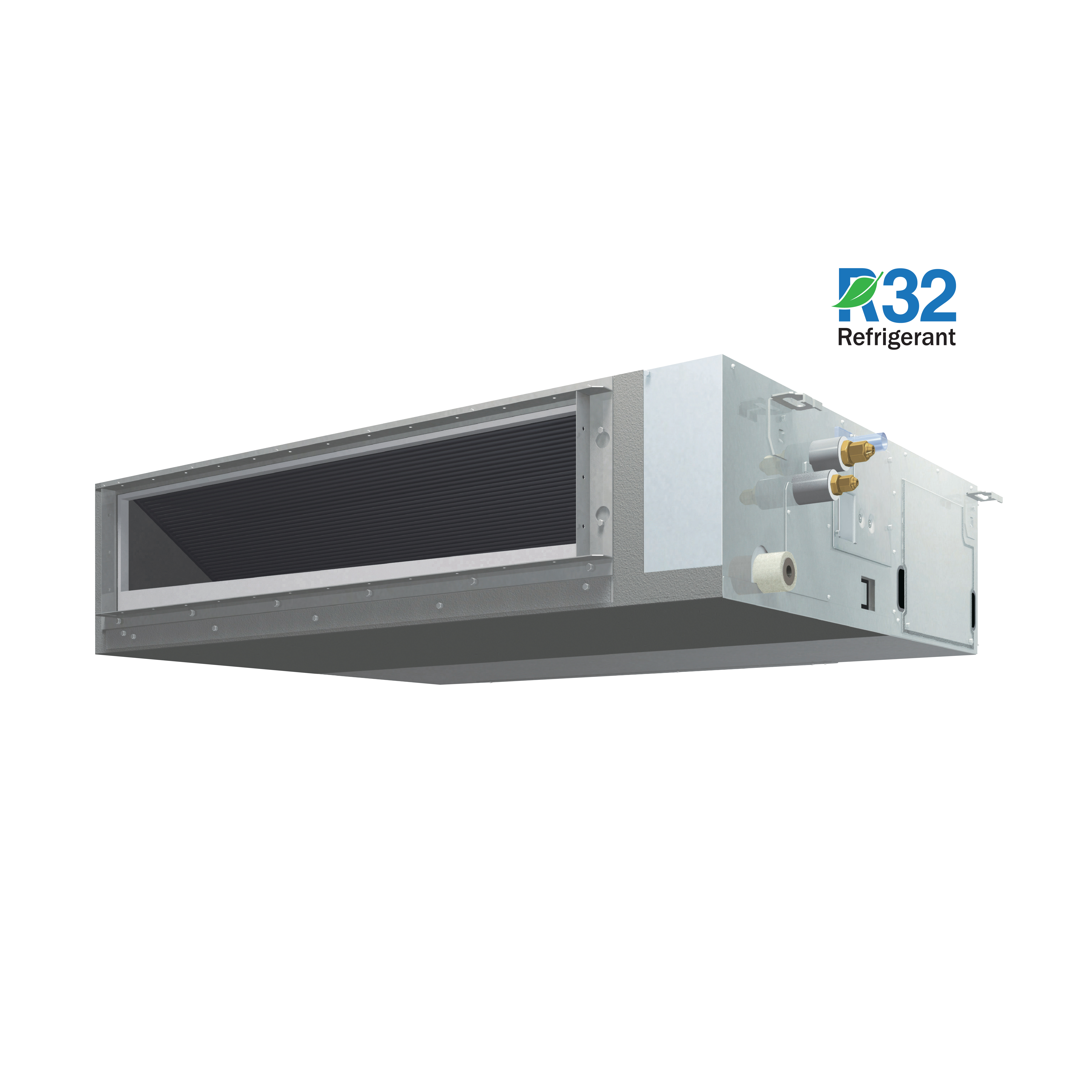

FBA R32 Inverter Middle Static Pressure Duct Split Type

Back

Select hp/model

Paired model:

Specifications

Model

Indoor Unit

FBA50CV1

Cooling Capacity

5 kW

17,100 Btu/h

Power Supply

1Ø, 220-240V, 50Hz

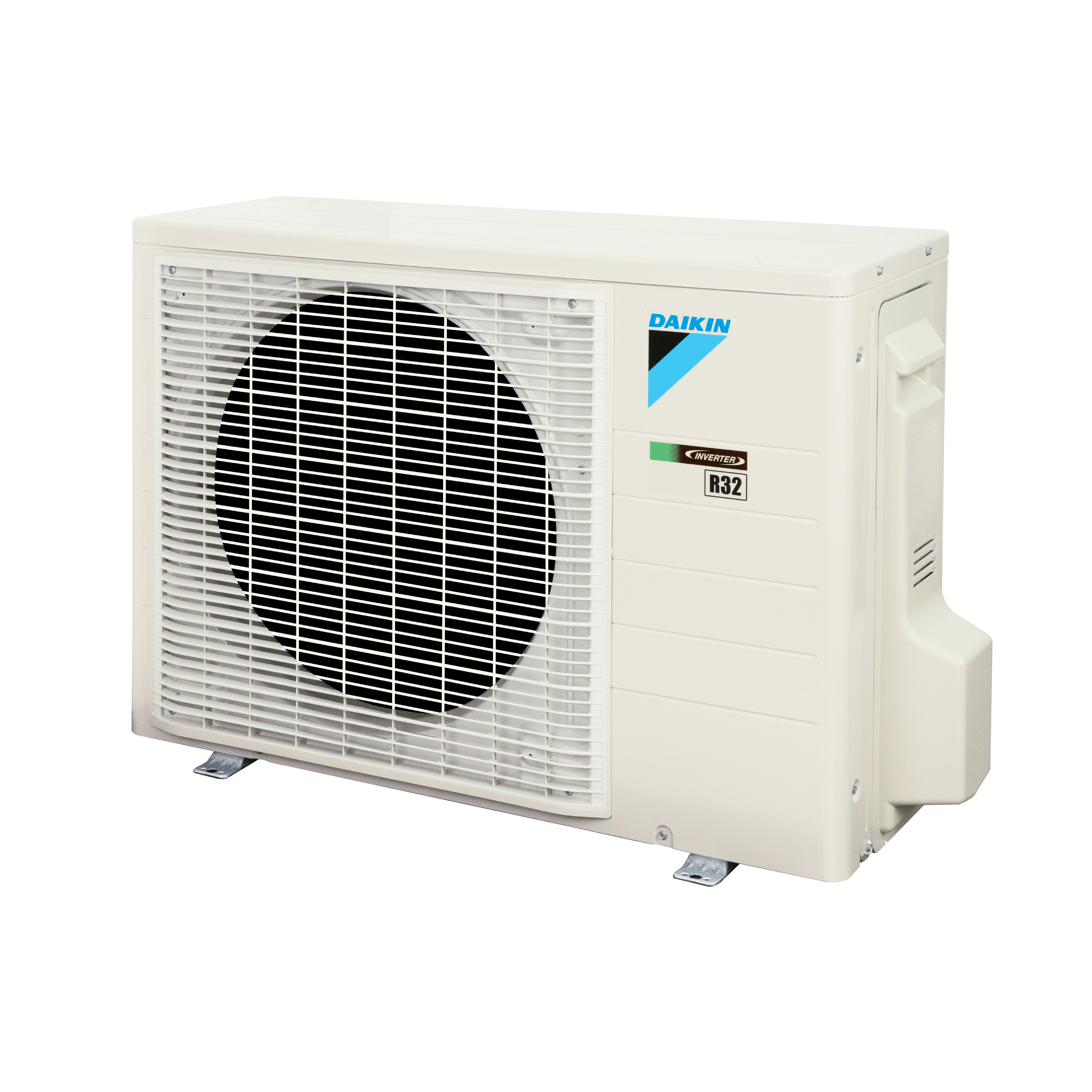

Outdoor Unit

RZF50DV1

Power Consumption

Cooling: 1.26 kW

Indoor Unit

Airflow Rate

Cooling: 12.5 - 18 (3 steps) m³/min

Dimensions (H x W x D)

245 x 1,000 x 800 mm

Sound Level

Cooling: 31 - 35 dB(A)

Weight

37 kg

Outdoor Unit

Dimensions (H x W x D)

608 x 845 x 300 mm

Piping Connections

Gas: Ø15.9 mm

Liquid: Ø9.5 mm

Max. Height Difference

30 m

Weight

41 kg

Max. Piping Length

50 m

Accessories/Functions

Remote Controller Model (Wired)

BRC2E61 (optional)

Remote Controller Model (Wireless)

BRC4C66 (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m
