FHA R32 Inverter Ceiling Suspended Split Type

Back

Select hp/model

Paired model:

Specifications

Model

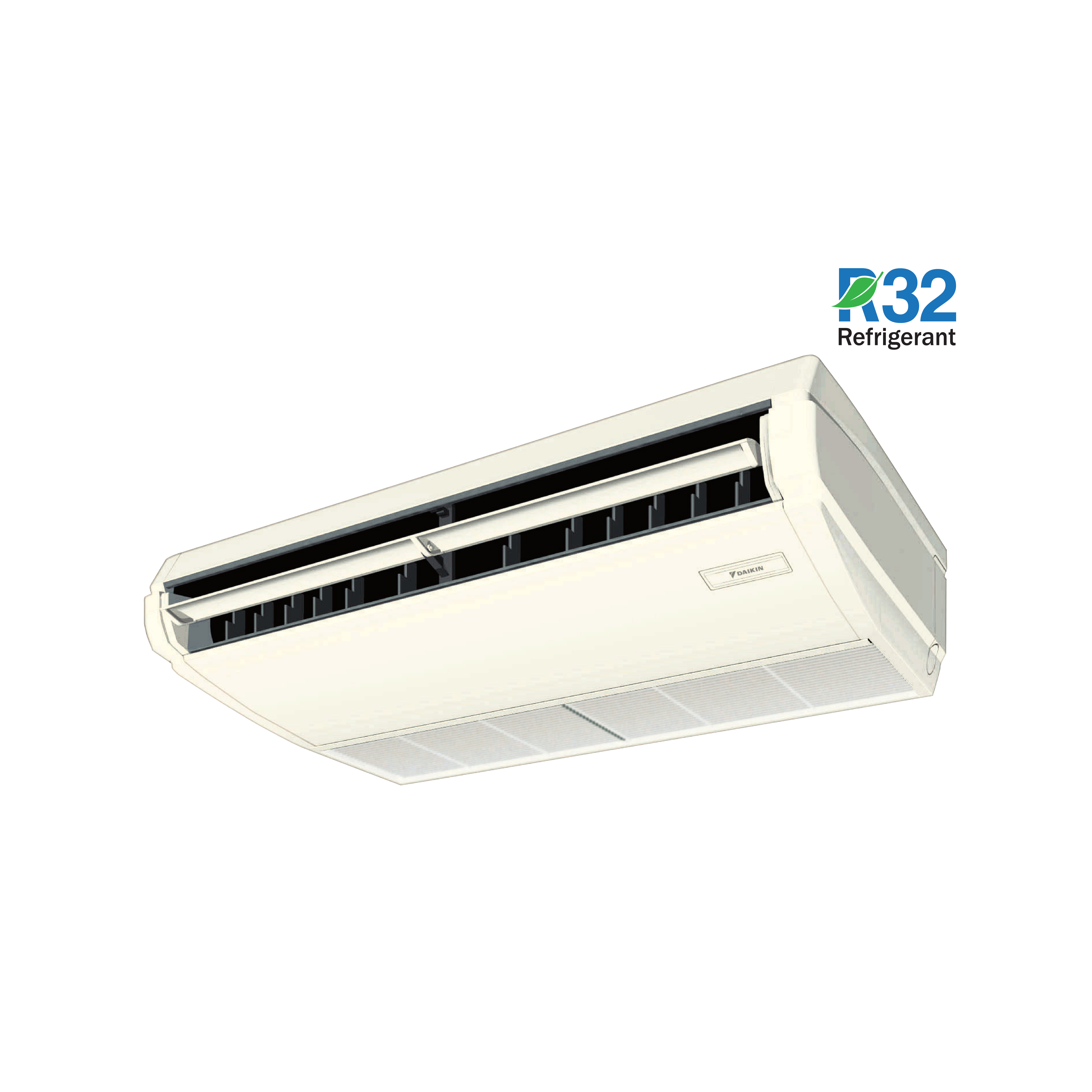

Indoor Unit

FHA50DV1

Cooling Capacity

5 kW

17,100 Btu/h

Power Supply

1Ø, 220-240V, 50Hz

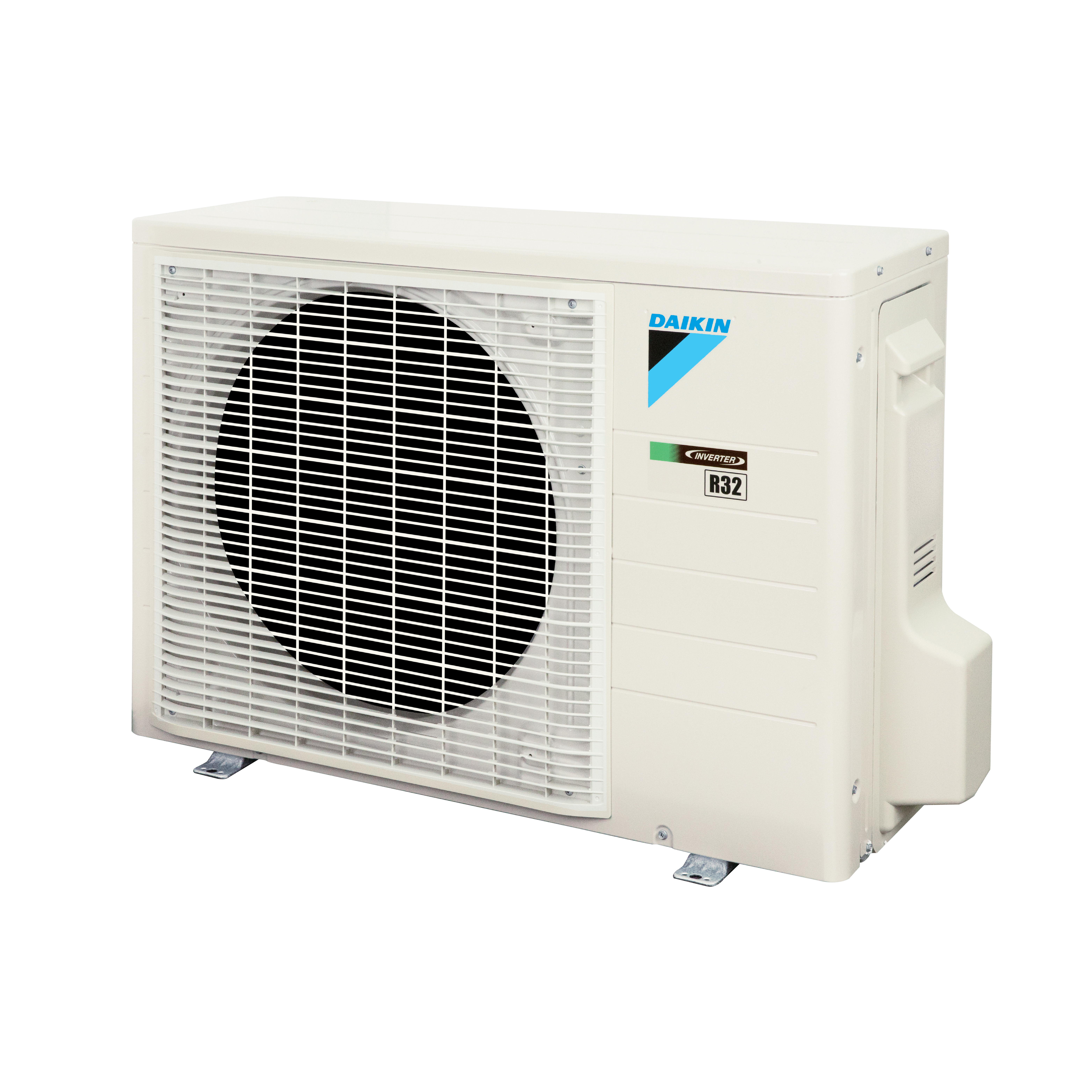

Outdoor Unit

RZF50DV1

Power Consumption

Cooling: 1.17 kW

Indoor Unit

Airflow Rate

Cooling: 10 - 15 (5 steps) m³/min

Dimensions (H x W x D)

235 x 960 x 690 mm

Sound Level

Cooling: 32 - 37 dB(A)

Weight

25 kg

Outdoor Unit

Dimensions (H x W x D)

608 x 845 x 300 mm

Piping Connections

Gas: Ø15.9 mm

Liquid: Ø9.5 mm

Max. Height Difference

30 m

Weight

41 kg

Max. Piping Length

50 m

Accessories/Functions

Remote Controller Model (Wired)

BRC2E61 (optional)

Remote Controller Model (Wireless)

BRC7M56 (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m
