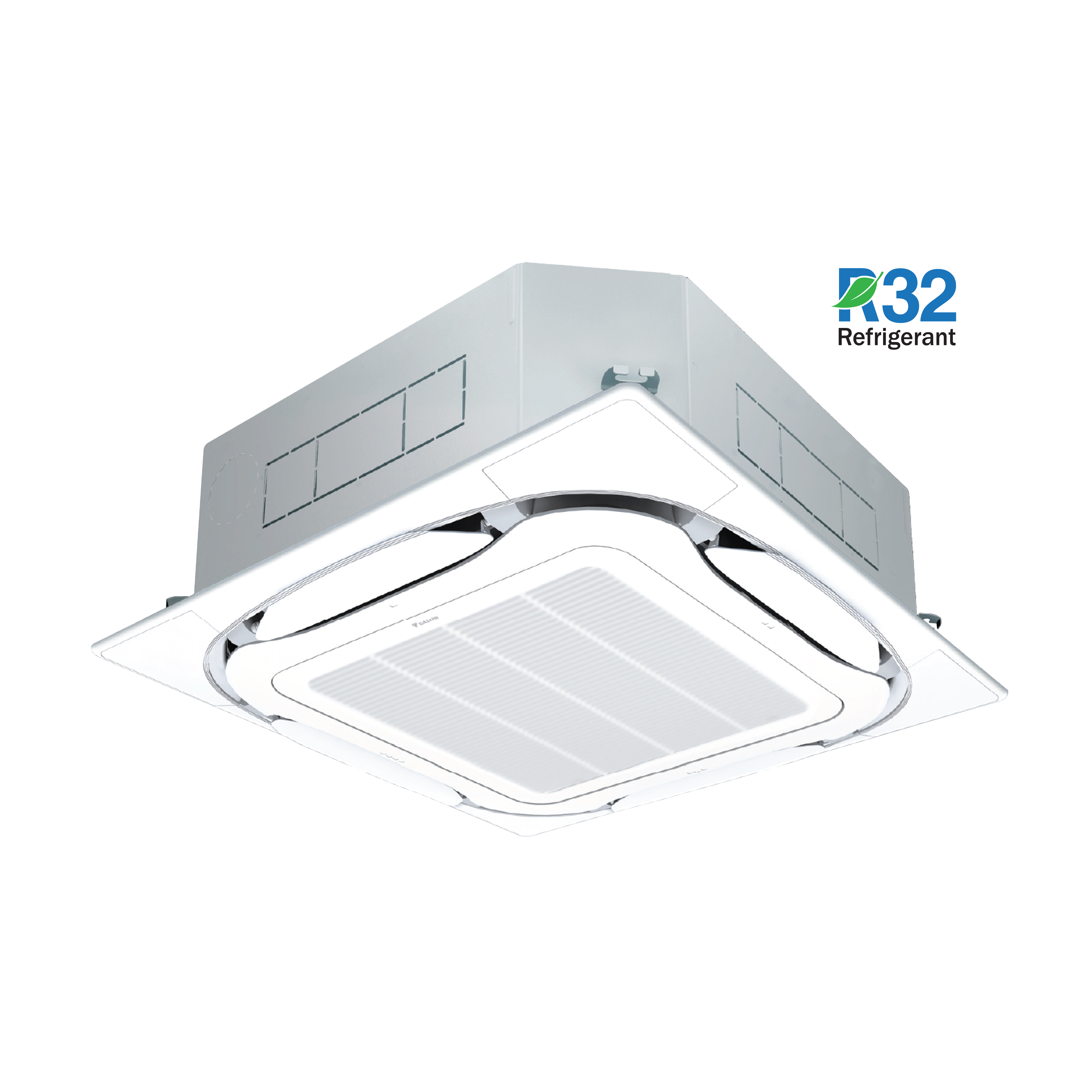

FCF R32 Inverter Cassette Split Type (Round Flow Series)

Back

Select hp/model

Paired model:

Specifications

Model

Indoor Unit

FCF50DV1

Cooling Capacity

5 kW

17,100 Btu/h

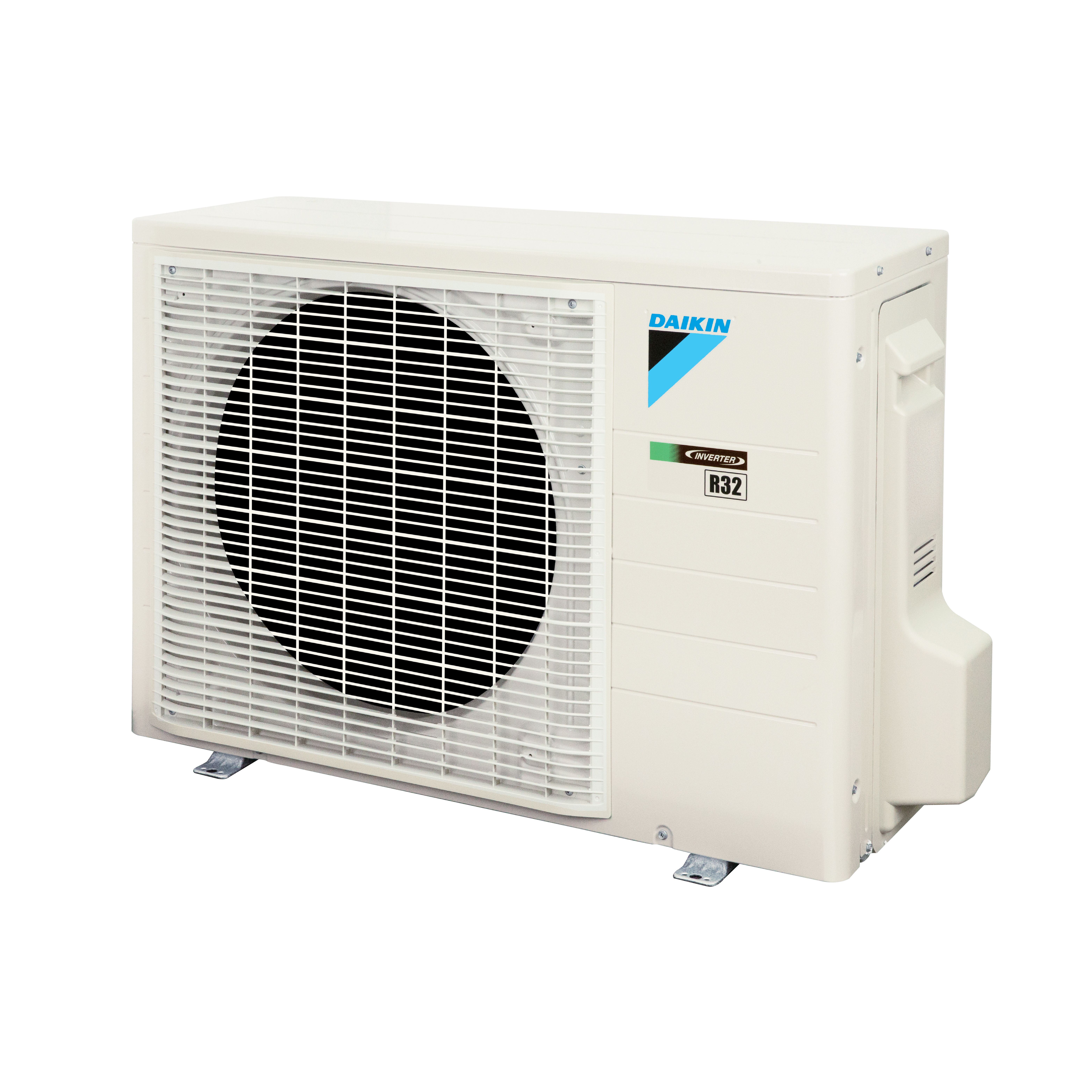

Outdoor Unit

RZF50DV1

Power Consumption

Cooling: 1.01 kW

Indoor Unit

Airflow Rate

Cooling: 13.5 - 23 (5 steps) m³/min

Dimensions (H x W x D)

Panel: 50 x 950 x 950 mm

Body: 256 x 840 x 840 mm

Sound Level

Cooling: 27.5 - 37 dB(A)

Weight

Panel: 5.5 kg

Body: 22 kg

Outdoor Unit

Dimensions (H x W x D)

608 x 845 x 300 mm

Piping Connections

Gas: Ø15.9 mm

Liquid: Ø9.5 mm

Max. Height Difference

30 m

Weight

41 kg

Max. Piping Length

50 m

Accessories/Functions

Remote Controller Model (Wired)

BRC2E61 (optional)

Remote Controller Model (Wireless)

BRC7M635F (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m
