FTV R32 Cooling Only Wall Mounted Split Type (For Macau Market)
Specifications
Model

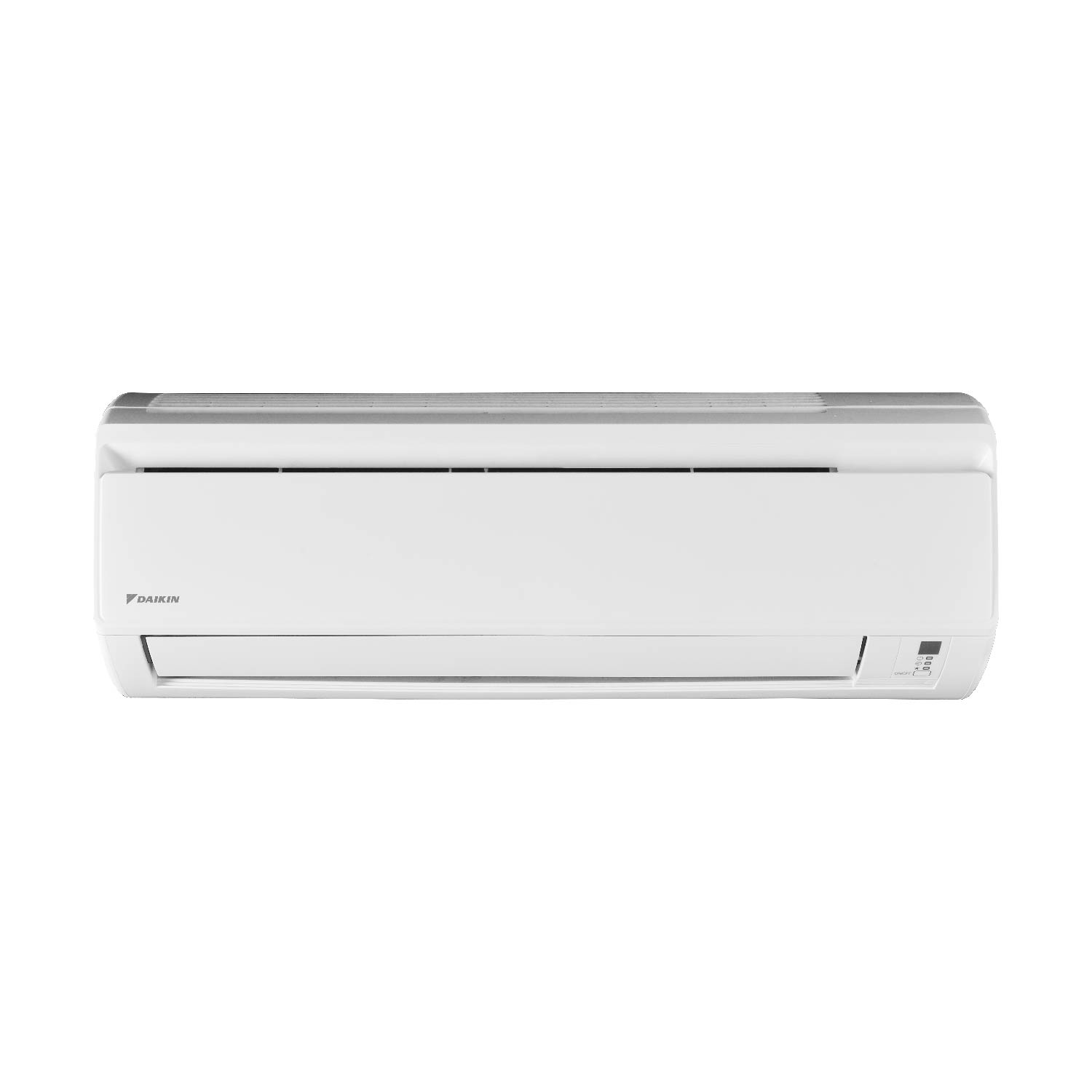

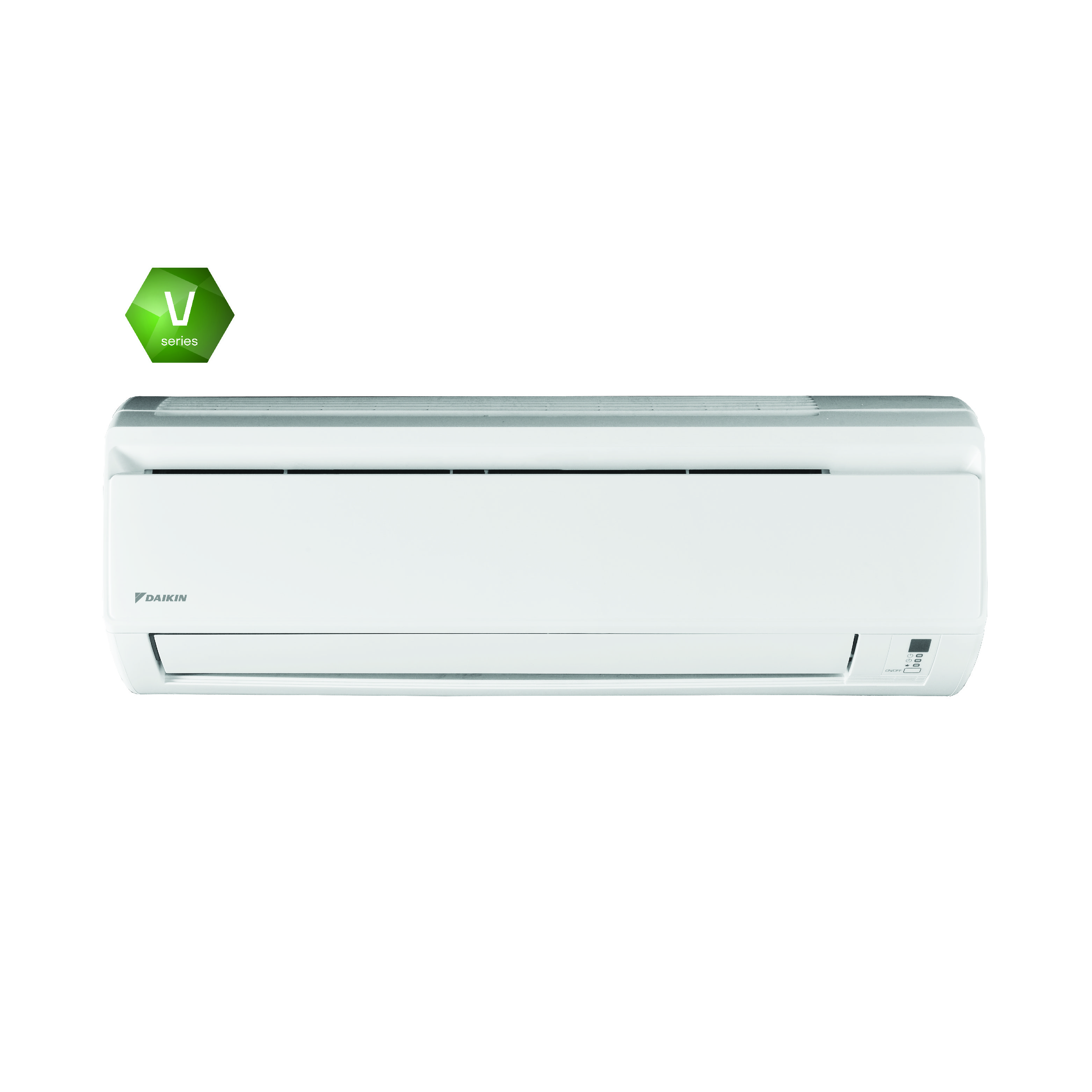

Indoor Unit
FTV25CV19
Cooling Capacity
2.64 kW
9,000 Btu/h
Power Supply
1Ø, 220-240V, 50Hz

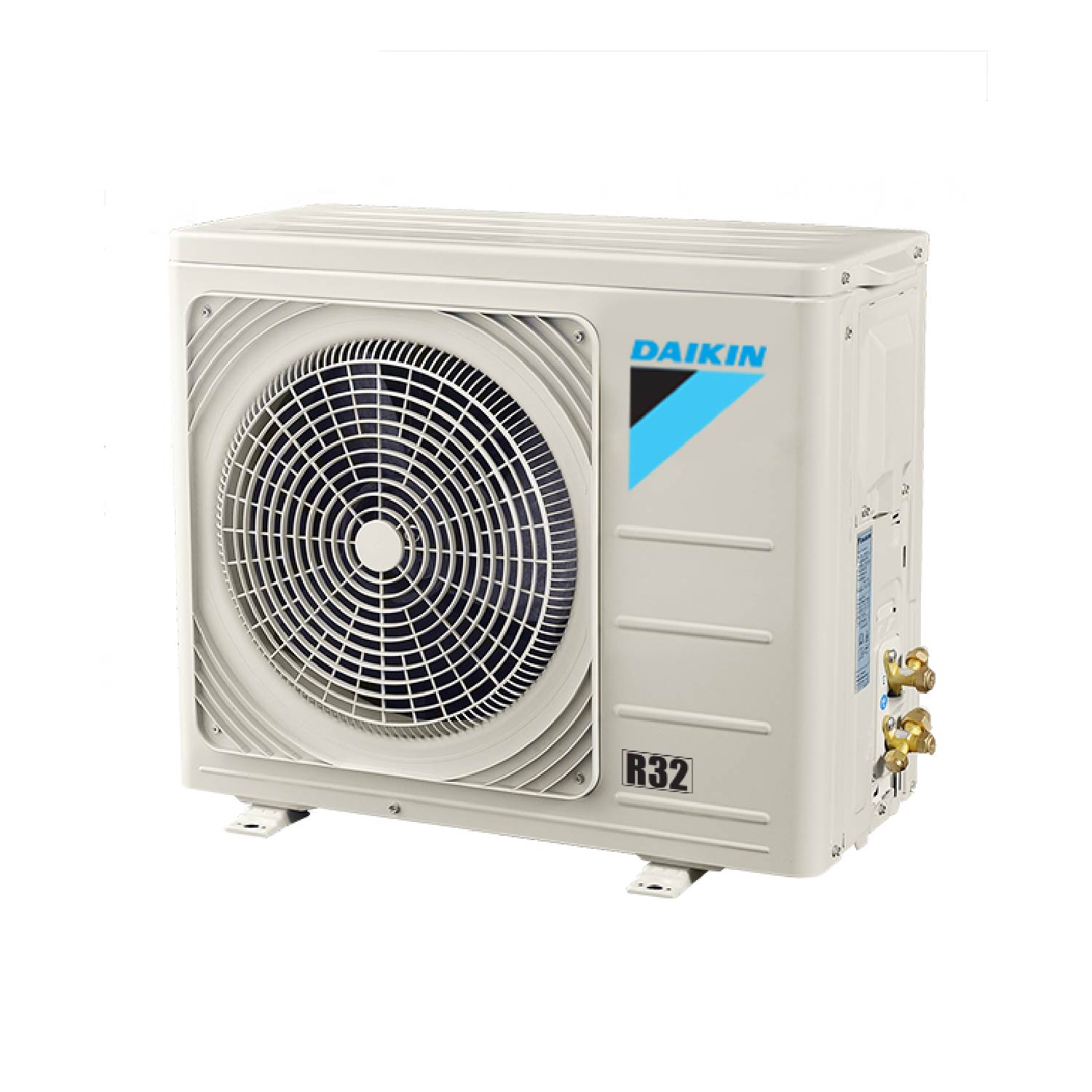

Outdoor Unit
RV25CV19
Power Consumption
Cooling: 780 W
Indoor Unit
Airflow Rate
Cooling: 6.37 - 9.68 (3 steps) m³/min
Dimensions (H x W x D)
288 x 800 x 206 mm
Sound Level
Cooling: 27 - 37 dB(A)
Weight
9 kg
Outdoor Unit
Dimensions (H x W x D)
485 x 566 x 256 mm
Piping Connections
Gas: Ø9.52 mm
Liquid: Ø6.35 mm
Max. Height Difference
12 m
Weight
21 kg
Max. Piping Length
20 m
Accessories/Functions

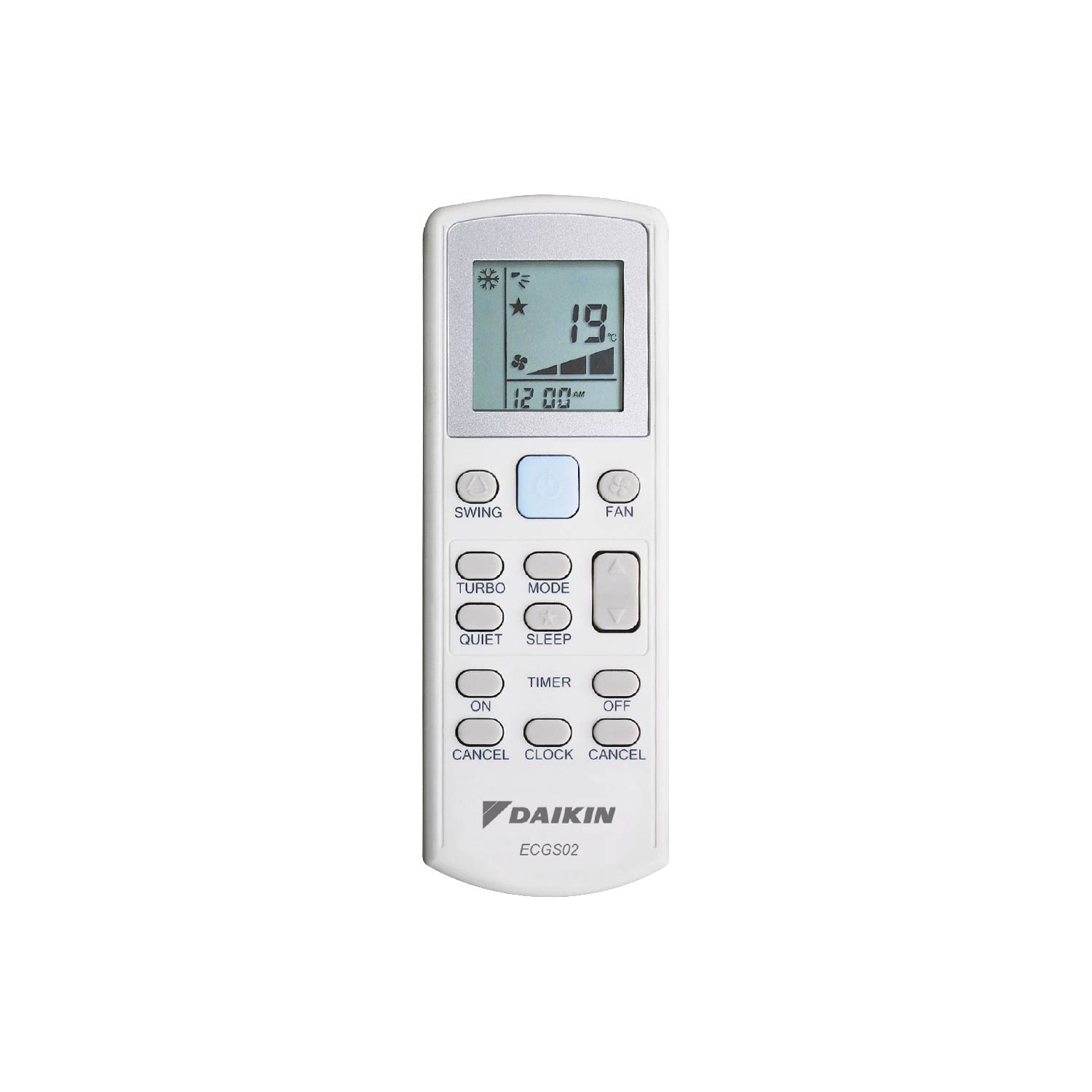

Remote Controller Model (Wireless)
BRC52A62
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
R32 is classified as mildly flammable refrigerant. Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation.
