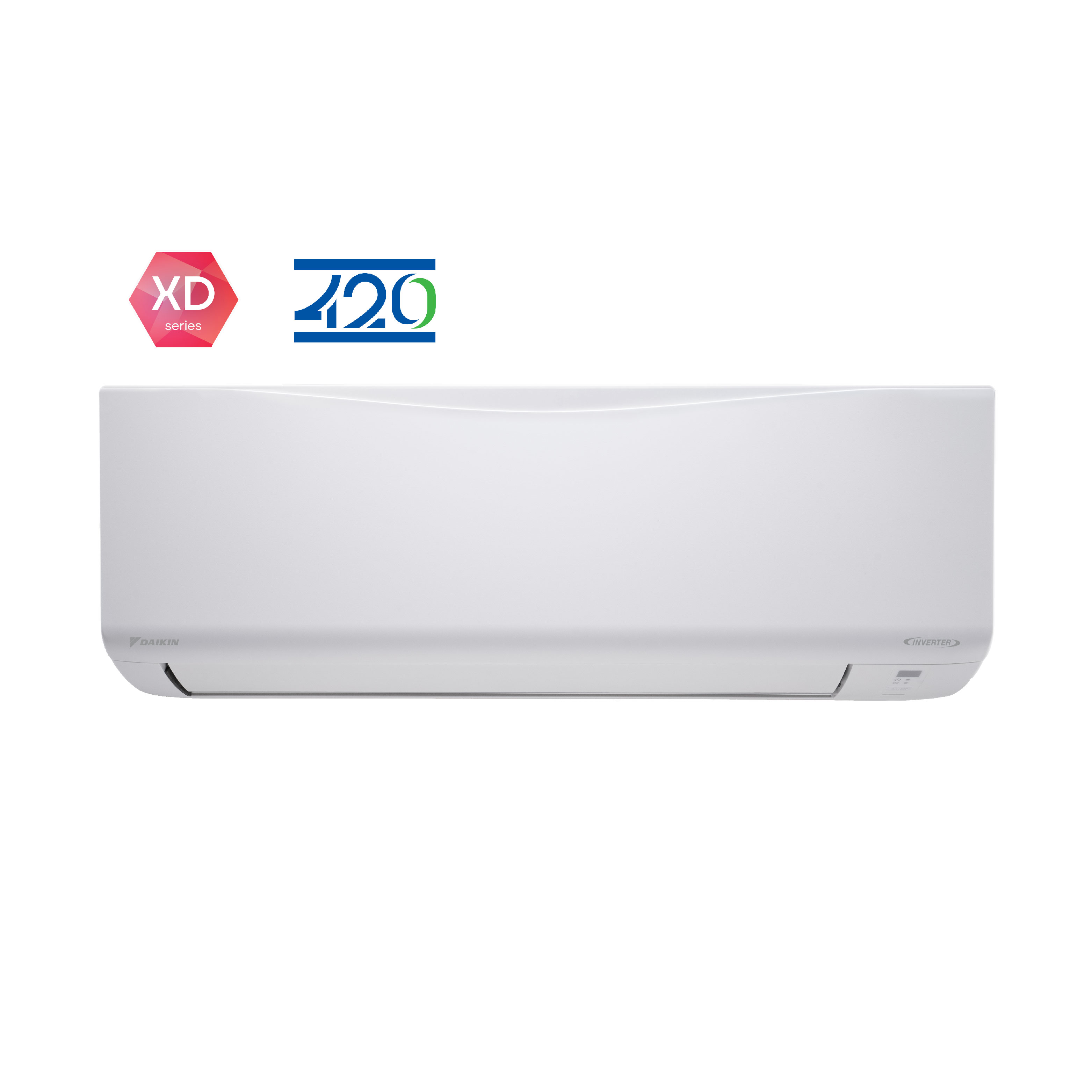

FTXD R32 Inverter Heat Pump Wall Mounted Split Type (R32 420 Series)
  • New Product
  • Best Seller
  • Heat pump
  • Inverter

Daikin R32 420 Series features a compact outdoor unit with a height of 420mm or less, perfectly designed for Hong Kong's narrow window ledges.

  • Petite outdoor unit, freeing you from the need for scaffolding at the time of installation*.
  • 3D Air, evenly distributing air to every corner.
  • Gin-ION filter, effectively decomposes viruses.
  • Exclusive Streamer technology, effectively eliminates bacteria and odours
  • Built-in smart control, enabling remote control of the air conditioner with a mobile device via Daikin Mobile Controller

*Depends on the circumstances of the site

Select hp/model
Paired model:

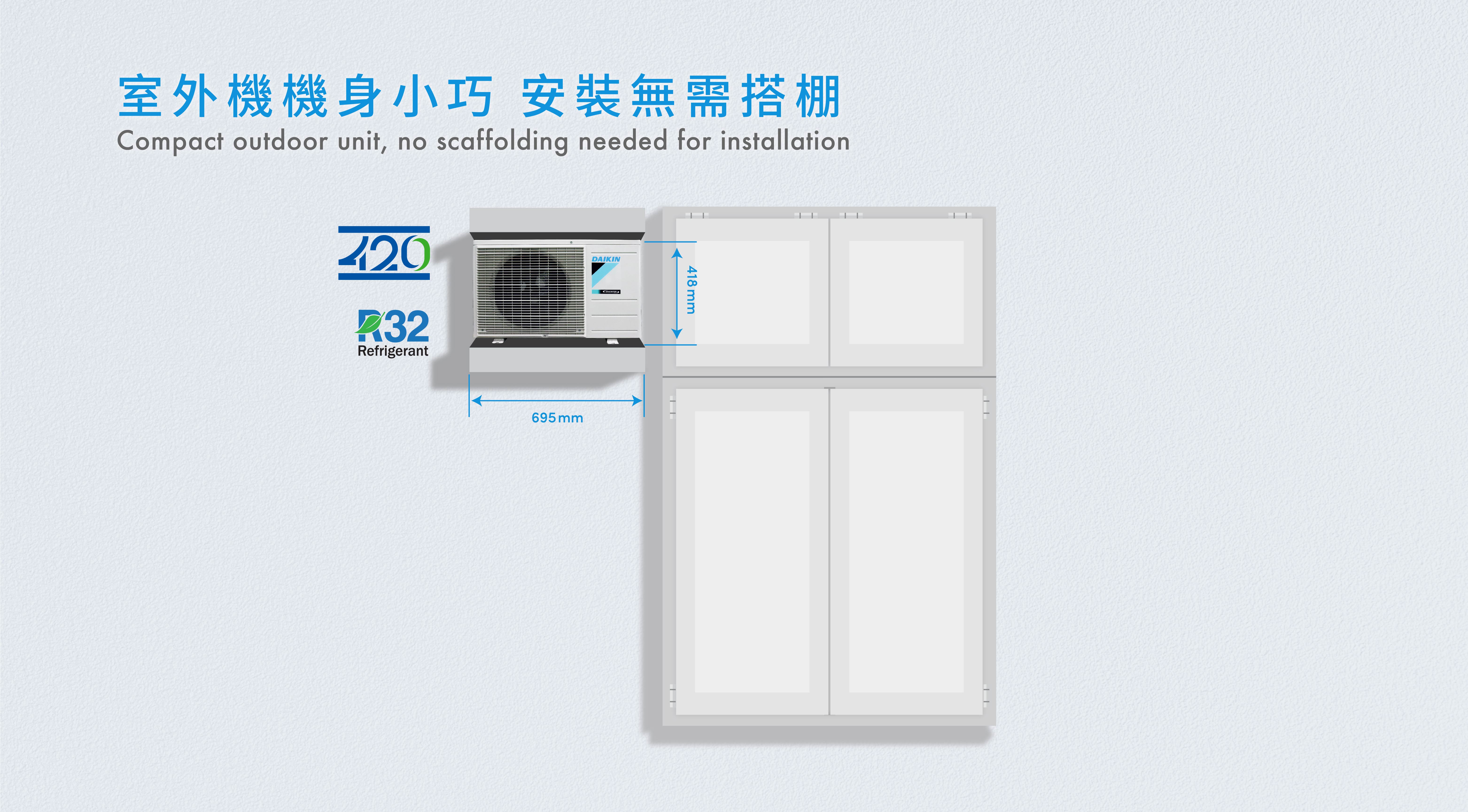

Compact Outdoor Unit, Installation Without Scaffolding

The outdoor unit is compact, with a height of only 420mm or less. You can utilise the existing window air conditioner ledge outside your unit by installing the delicate and slim outdoor unit at the window position.


The piping and electrical connection ports of the outdoor unit are located at the back, allowing for convenient pipe connections and other installation work from indoors.This eliminates the need for scaffolding*, greatly reducing space occupation.


*Note: Installation without scaffolding may depend on building structure and local regulations.

Replace Traditional Window Air Conditioners

Comfortable Airflow Angle: Traditional window air conditioners have a narrow airflow angle. The R32 420 Series features 3D Air that evenly distributes air to every corner, ensuring comfort throughout the entire room.


Elegantly Integrates into Your Home: The R32 420 Series boasts a simple and elegant design that easily blends into various interior styles, enhancing the aesthetic appeal of your home.


The R32 420 Series not only outperforms traditional window air conditioners in functionality but also adds beauty and comfort to your living space with its stylish design, making it the ideal choice to replace traditional window units.

Gin-ION Filter: Effectively Inactivates Viruses

The Gin-ION Filter effectively decomposes and inactivates viruses on the filter surface, enhancing indoor air quality.


Silver ions have oxidative properties and are commonly used for disinfection and sterilisation. The Gin-ION Filter employs silver ion antibacterial technology to effectively inactivate and decompose viruses on the filter surface. It filters harmful substances in the air, destroys bacterial cell membranes, inhibits their growth, and improves indoor air quality.


The Gin-ION Filter can effectively filter dust, pollen, allergens, and other harmful substances in the air, and can actively decompose viruses, enhancing indoor air quality.

Exclusive Streamer Technology, Effectively Eliminates Bacteria and Odours

The Streamer technology developed by Daikin Industries is an epoch-making air purification technology that continuously cleans the air. Streamer discharge is a type of plasma discharge that releases high-speed electrons with oxidative decomposition power. Compared to general plasma discharge, the oxidative decomposition power of Streamer discharge is over 1,000 times greater.

Control Your Air Conditioner Remotely with the Daikin Mobile Controller Mobile App

Download the Daikin Mobile Controller app to turn your mobile device into a remote controller, allowing you to control your Daikin air conditioner anytime, anywhere, helping you create a comfortable environment while saving energy.


Through this app, you can perform basic operations such as turning the unit ON/OFF, setting the operating mode, and adjusting the temperature. You can even preset weekly schedules. You can also remotely monitor your air conditioning system, so no matter where you are, you can adjust your indoor environment at any time to ensure your air conditioner runs smoothly.

Specifications
Model

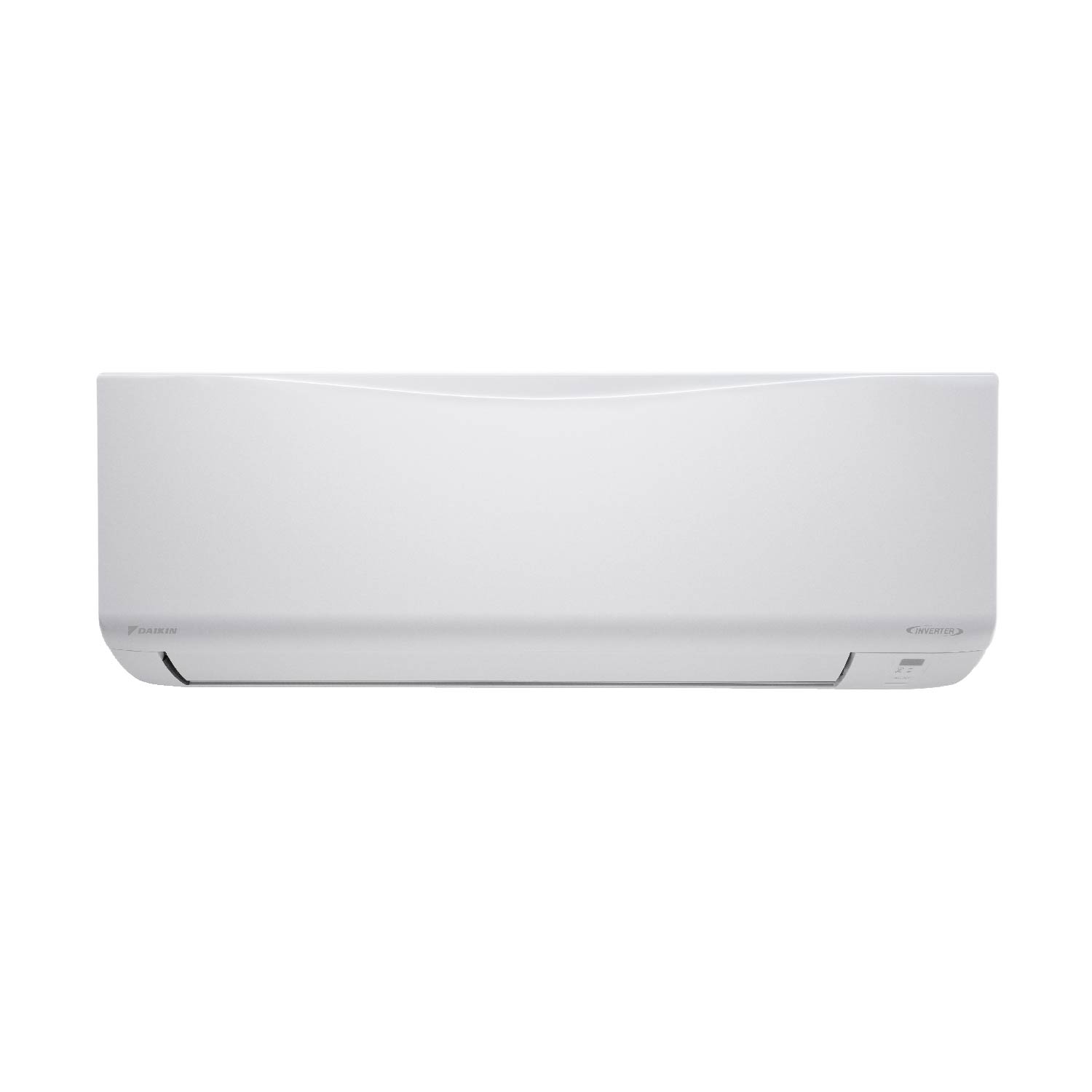

Indoor Unit
FTXD35AV1H
Cooling Capacity
3.22 kW
11,000 Btu/h
Power Consumption
Cooling: 1,075 W
Heating: 1,449 W
Energy Label
1
Heating Seasonal Performance Factor (HSPF)
4.3277

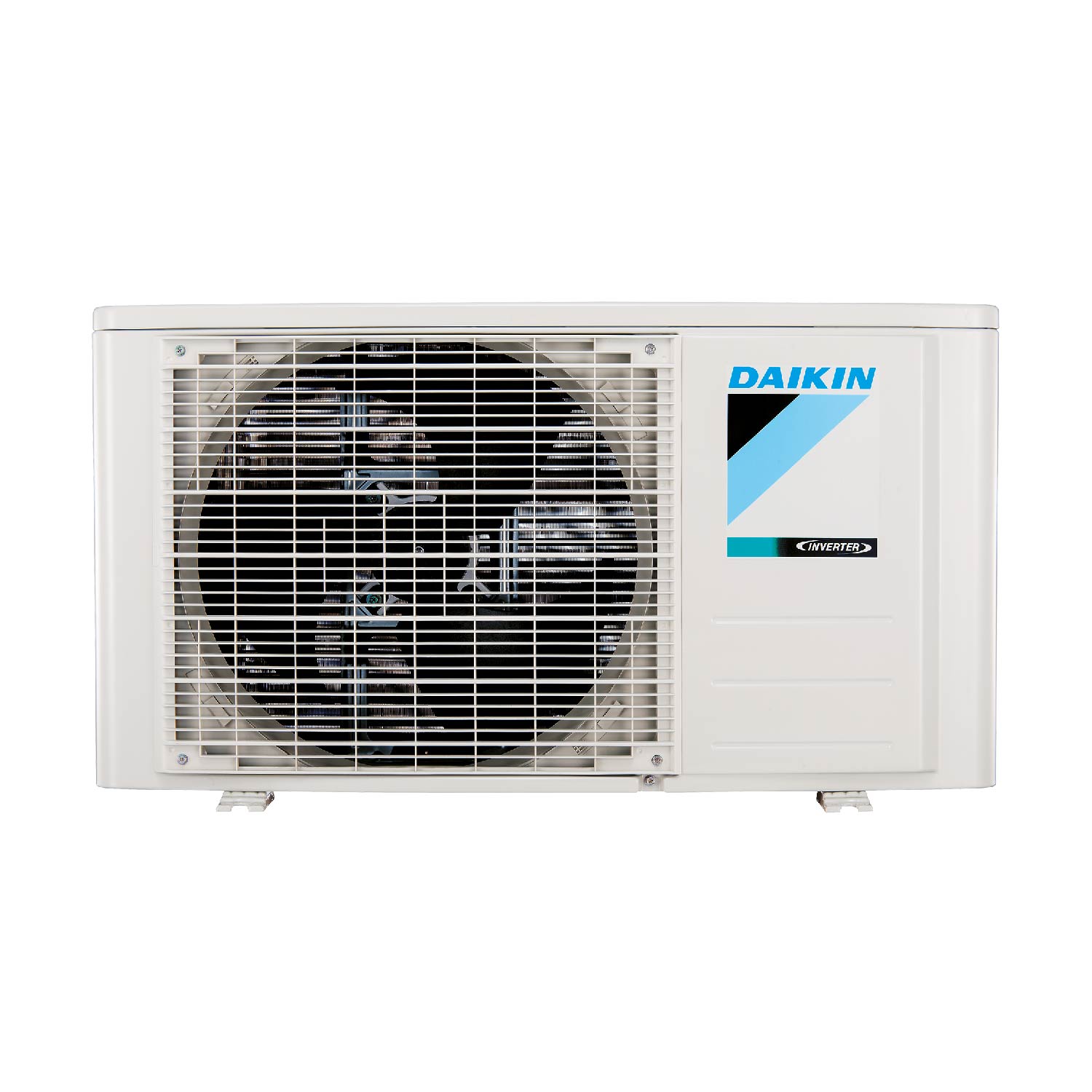

Outdoor Unit
RXD35AV1H
Heating Capacity
4.22 kW
14,400 Btu/h
Power Supply
1Ø, 220V, 50Hz
Cooling Seasonal Performance Factor (CSPF)
5.0194
Indoor Unit
Airflow Rate
Cooling: 6.37 - 10.19 (5 steps) m³/min
Heating: (5 steps)7.36 - 10.19 m³/min
Dimensions (H x W x D)
288 x 785 x 250 mm
Sound Level
Cooling: 31 - 41 dB(A)
Heating: 31 - 41 dB(A)
Weight
9.5 kg
Outdoor Unit
Dimensions (H x W x D)
420 x 765 x 291 mm
Piping Connections
Gas: Ø9.5 mm
Liquid: Ø6.4 mm
Max. Height Difference
10 m
Weight
24 kg
Max. Piping Length
20 m
Accessories/Functions

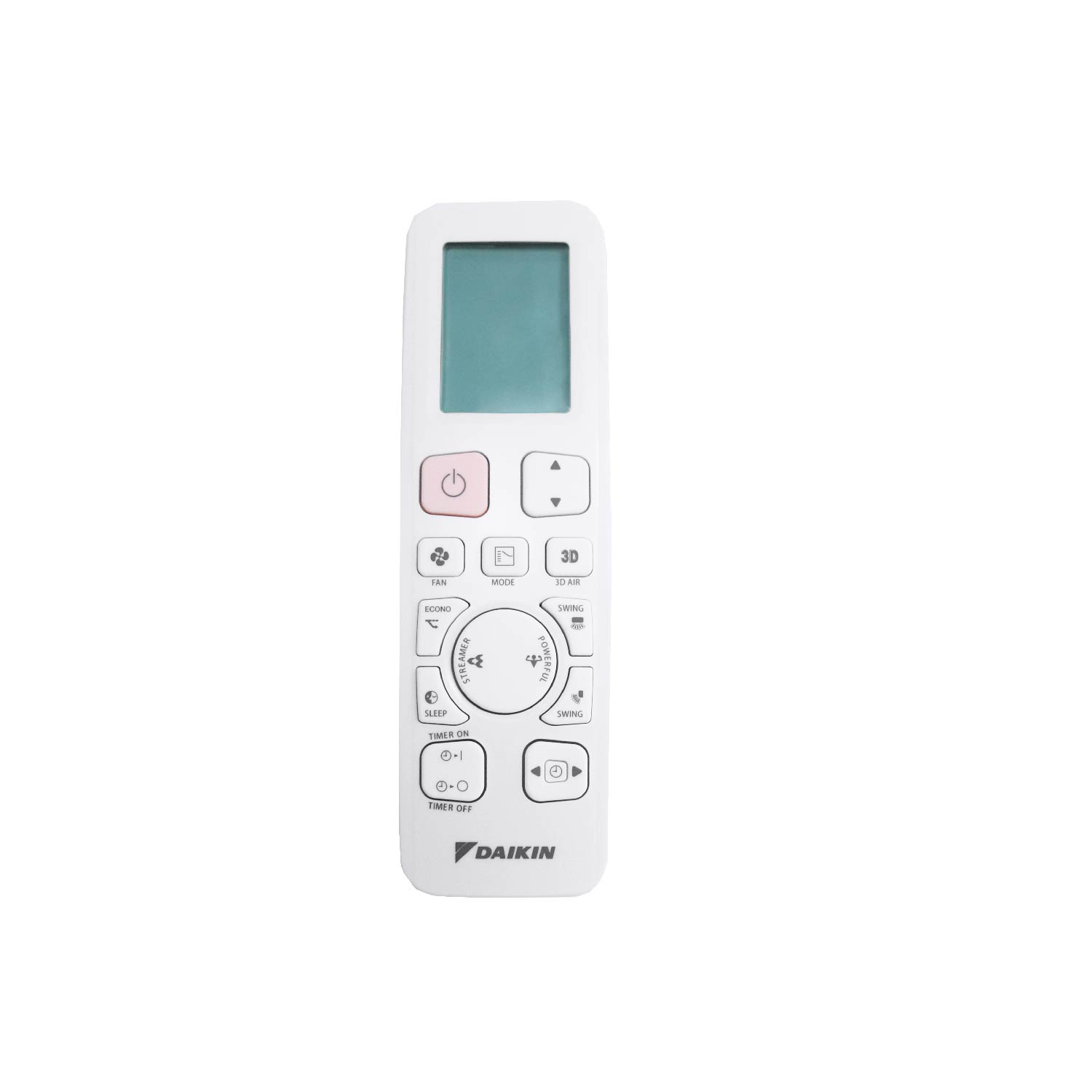

Remote Controller Model (Wireless)
ARC485B2
Comfort Airflow
Power-Airflow Flap / Wide-Angle Louvers / Vertical Auto-Swing (up and down) / Horizontal Auto-Swing (left and right) / 3D Air
Cleanliness
Gin-ION Filter / Streamer
Timers
Comfort Sleep Operation / 24 Hour On/Off Timer / Weekly Timer (optional function)
Smart Control
Daikin Mobile Controller (built-in function)
Lifestyle Convenience
Inverter Powerful Operation / Econo Mode / Wireless Remote Controller with Luminous Button / Smart Control
Comfort Control
Indoor Unit Quiet Operation / Automatic Operation / Programme Dry Function / Auto Fan Speed
Worry Free
Auto-Restart after Power Failure / Self-Diagnosis with Remote Controller / Anti-Corrosion Treatment of Outdoor Heat

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 7.5m

R32 is classified as mildly flammable refrigerant. Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation.
