FFQ Inverter Cassette Split Type (Compact Series)

Back

Select hp/model

Paired model:

Outdoor unit - RXS25EBVMA

Specifications

Model

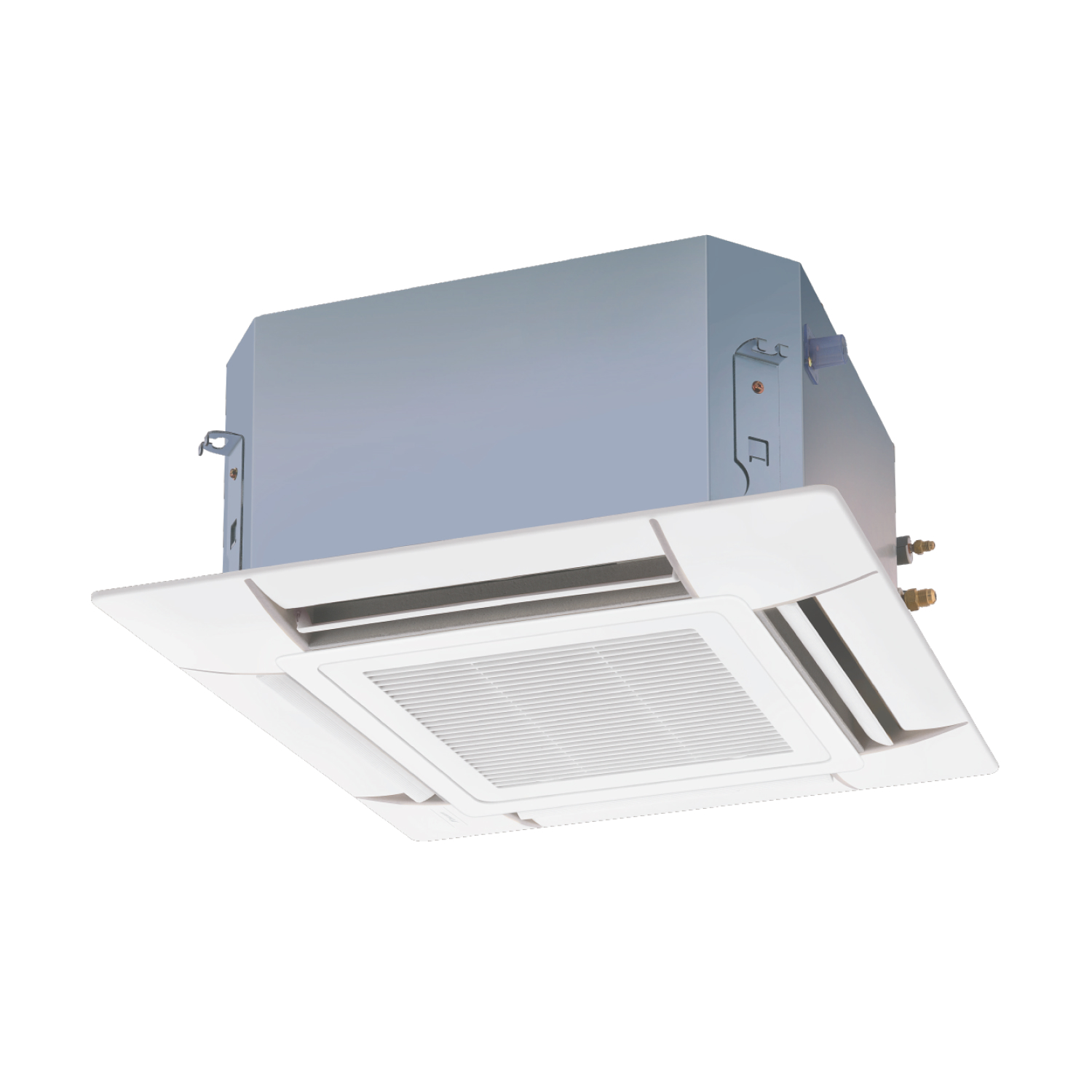

Indoor Unit

FFQ25BV1B9

Cooling Capacity

2.5 kW

8,550 Btu/h

Power Consumption

Cooling: 0.73 kW

Heating: 0.92 kW

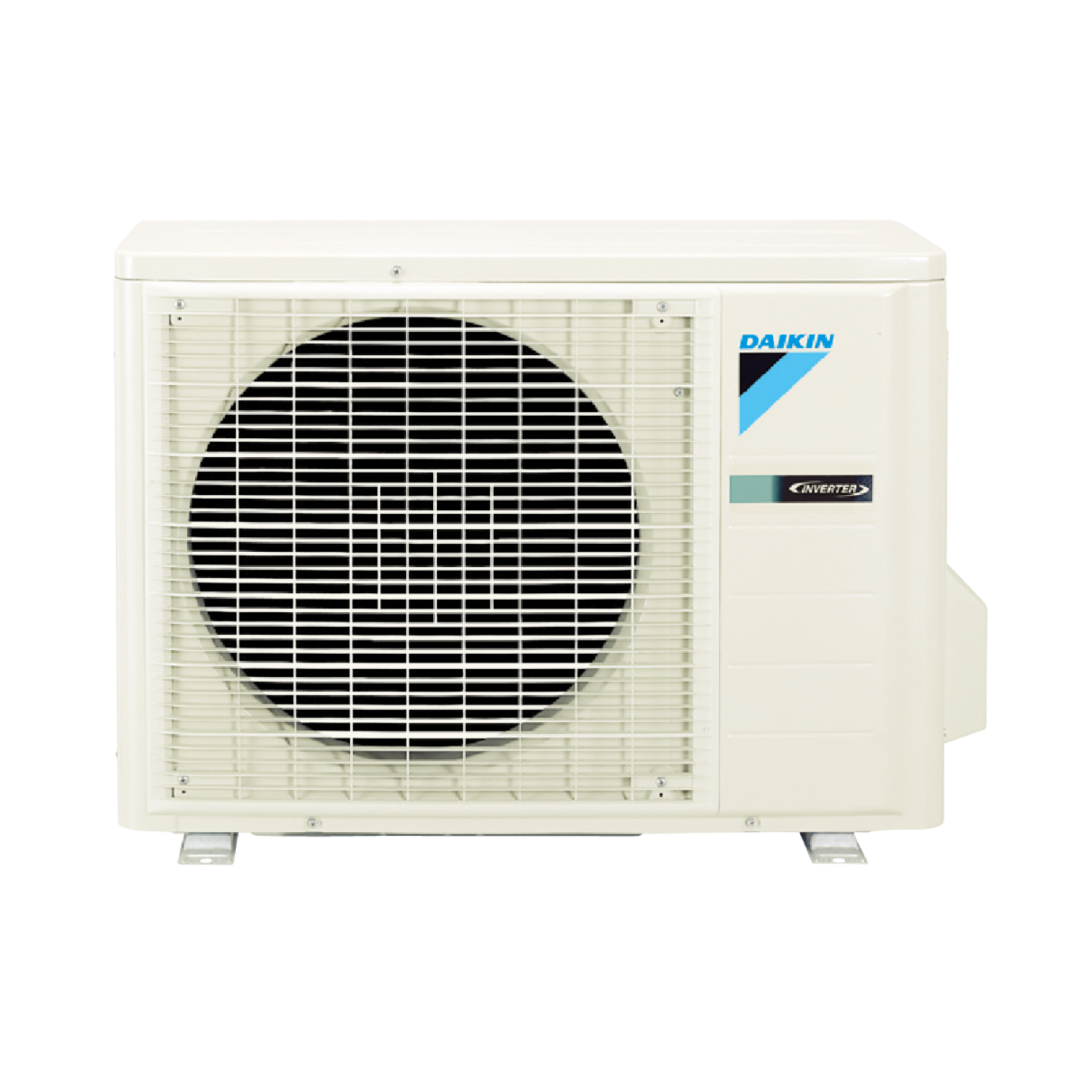

Outdoor Unit

RXS25EBVMA

Heating Capacity

3.2 kW

10,900 Btu/h

Power Supply

1Ø, 220-240V, 50Hz

Indoor Unit

Airflow Rate

Cooling: 6.5 - 9 (2 steps) m³/min

Heating: 6.5 - 9 (2 steps) m³/min

Dimensions (H x W x D)

Panel: 55 x 700 x 700 mm

Body: 286 x 575 x 575 mm

Sound Level

Cooling: 24.5 - 29.5 dB(A)

Heating: 24.5 - 29.5 dB(A)

Weight

Panel: 2.7 kg

Body: 17.5 kg

Outdoor Unit

Dimensions (H x W x D)

550 x 765 x 285 mm

Piping Connections

Gas: Ø9.5 mm

Liquid: Ø6.4 mm

Max. Height Difference

15 m

Weight

34 kg

Max. Piping Length

20 m

Accessories/Functions

Remote Controller Model (Wired)

BRC2E61 (optional)

Remote Controller Model (Wireless)

BRC7E530W (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 7.5m
