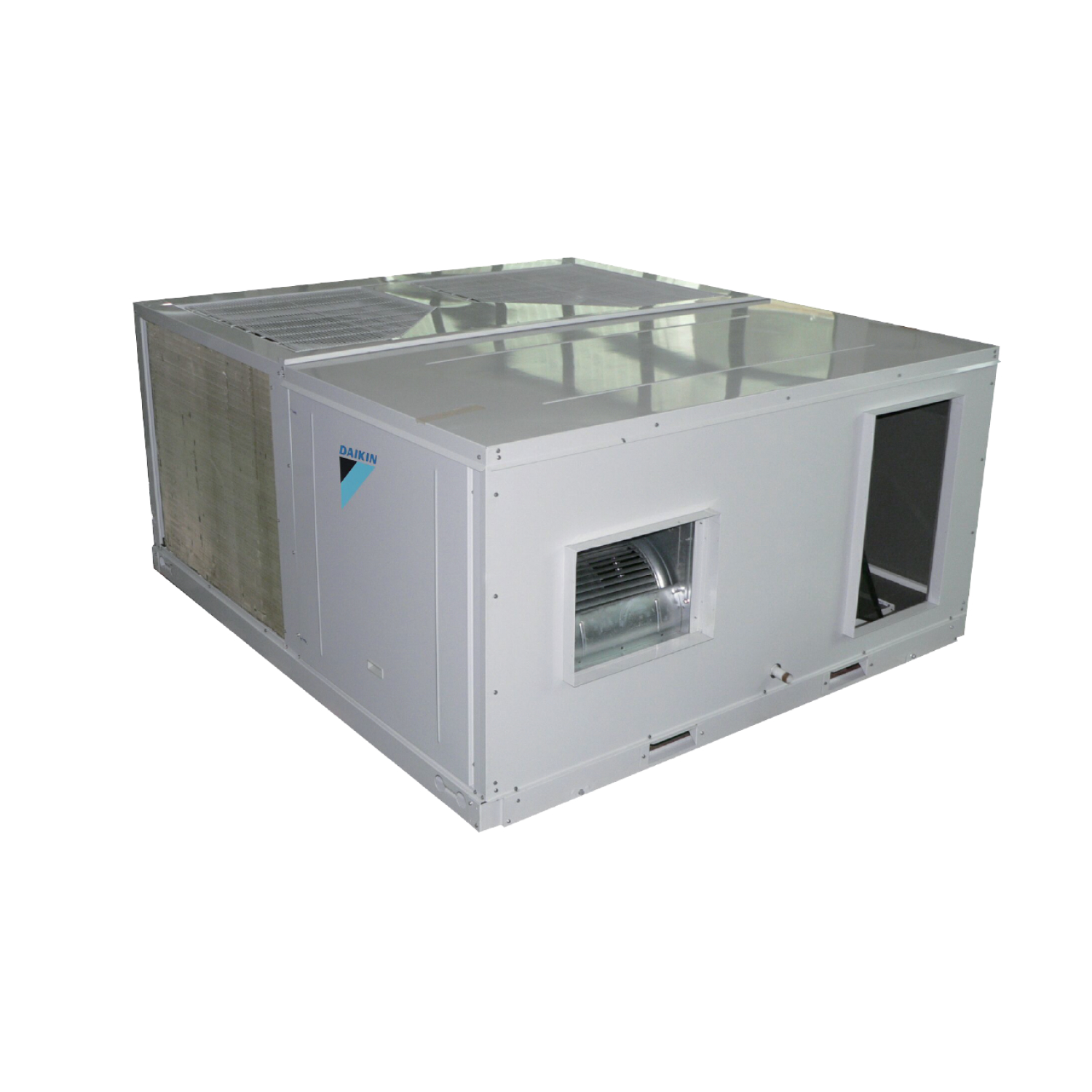

UATYQ Non-inverter Rooftop Split Type
Select hp/model
Specifications
Model
Indoor Unit
UATYQ250MCY19
Heating Capacity
24.91 kW
85,000 Btu/h
Power Supply
3Ø, 380-415V, 50Hz
Cooling Capacity
27.34 kW
93,300 Btu/h
Power Consumption
Cooling: 8.14 kW
Heating: 7.33 kW
Indoor Unit
Airflow Rate
Cooling: 93.4 m³/min
Heating: 93.4 m³/min
Sound Level
Cooling: 68 dB(A)
Heating: 68 dB(A)
Weight
445 kg
External Static Pressure
147 Pa
Dimensions (H x W x D)
1,150 x 1,638 x 2,063 mm
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Heating: indoor temp. 20°CDB; outdoor temp. 8°CDB/6°CWB
