MXM R32 Inverter Heat Pump Multi Split Type (Multi NX Series)
Specifications
Model

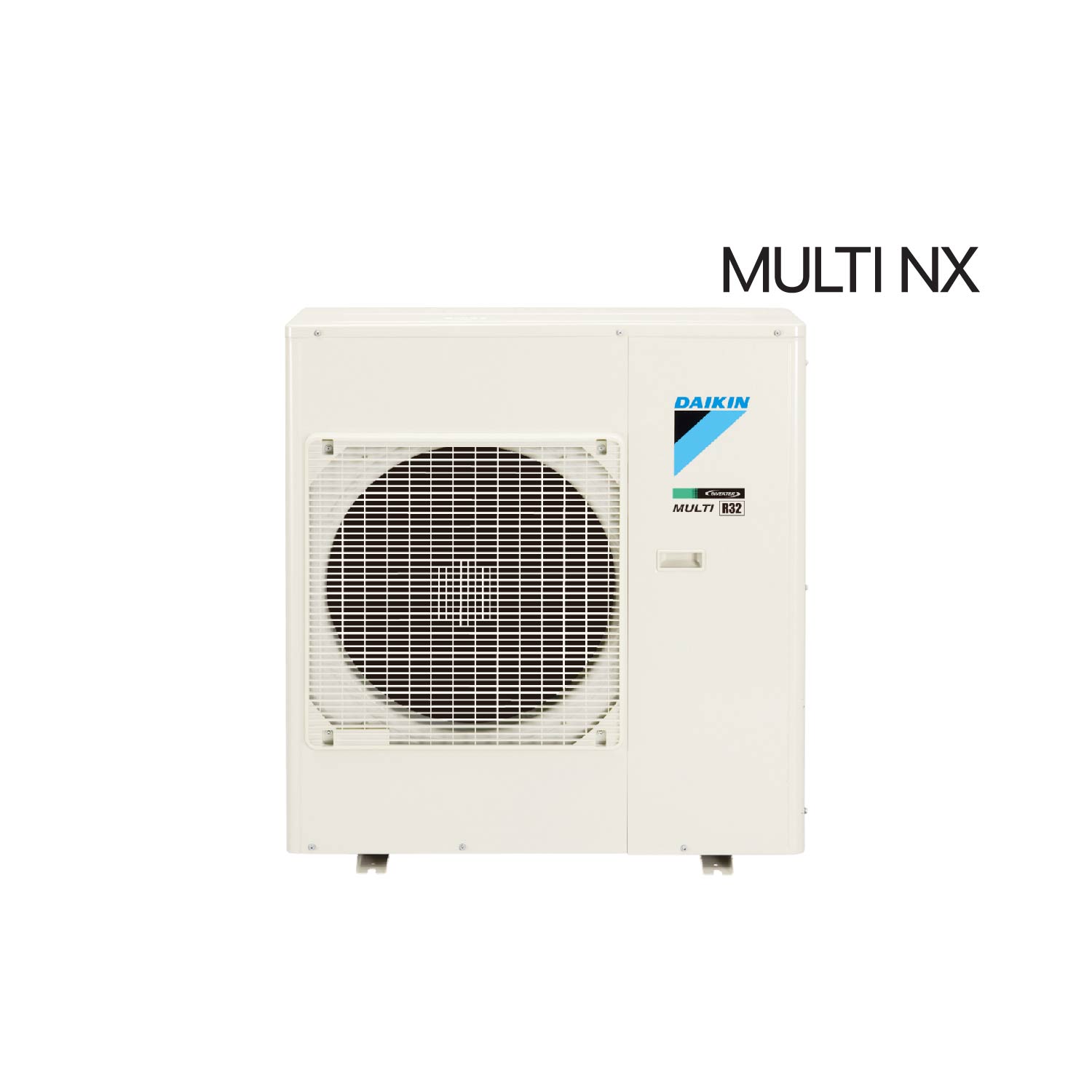

Outdoor Unit
3MXM52RVMA / 4MXM68RVMA / 4MXM80RVMA / 5MXM100RVMA
Heating Capacity
3MXM52RVMA: 6.8 / 4MXM68RVMA: 8.6 / 4MXM80RVMA: 9.6 / 5MXM100RVMA: 11 kW
Cooling Capacity
3MXM52RVMA: 5.2 / 4MXM68RVMA: 6.8 / 4MXM80RVMA: 8 / 5MXM100RVMA: 10 kW
Power Supply
1Ø, 220-240V, 50Hz
Outdoor Unit
Dimensions (H x W x D)
3MXM52RVMA: 695 x 930 x 350 / 4MXM68RVMA: 695 x 930 x 350 / 4MXM80RVMA: 695 x 930 x 350 / 5MXM100RVMA: 990 x 940 x 320 mm
Weight
3MXM52RVMA: 53 / 4MXM68RVMA: 56 / 4MXM80RVMA: 61 / 5MXM100RVMA: 83 kg
Remarks:
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 5m
R32 is classified as mildly flammable refrigerant. Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation.
For the selection of model and connection method, please refer to product catalogue.
