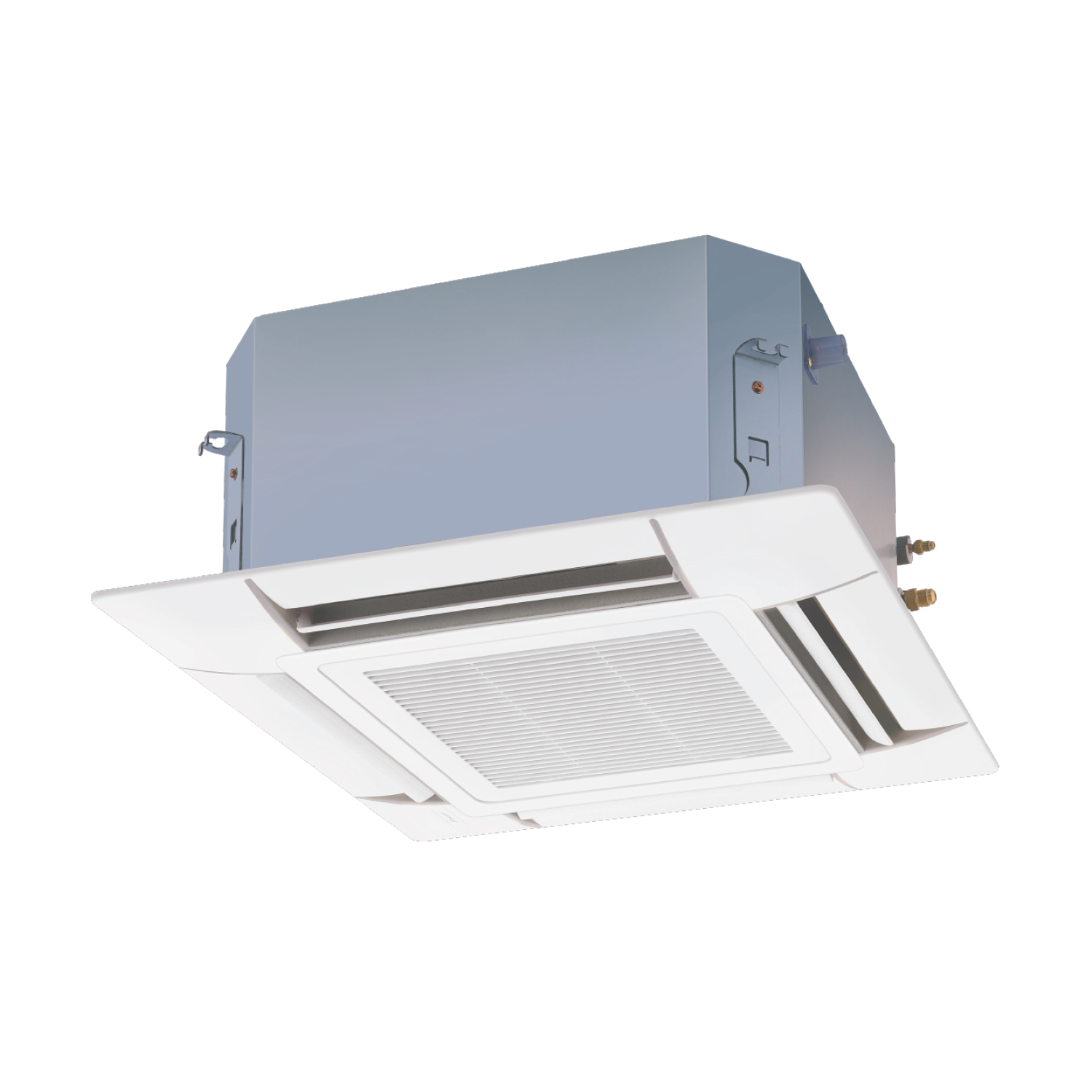

FFQ Inverter Cassette Split Type (Compact Series)

Back

Select hp/model

Paired model:

Outdoor unit - RKS35EBVMA

Specifications

Model

Indoor Unit

FFQ35BV1B9

Cooling Capacity

3.4 kW

11,600 Btu/h

Power Supply

1Ø, 220-240V, 50Hz

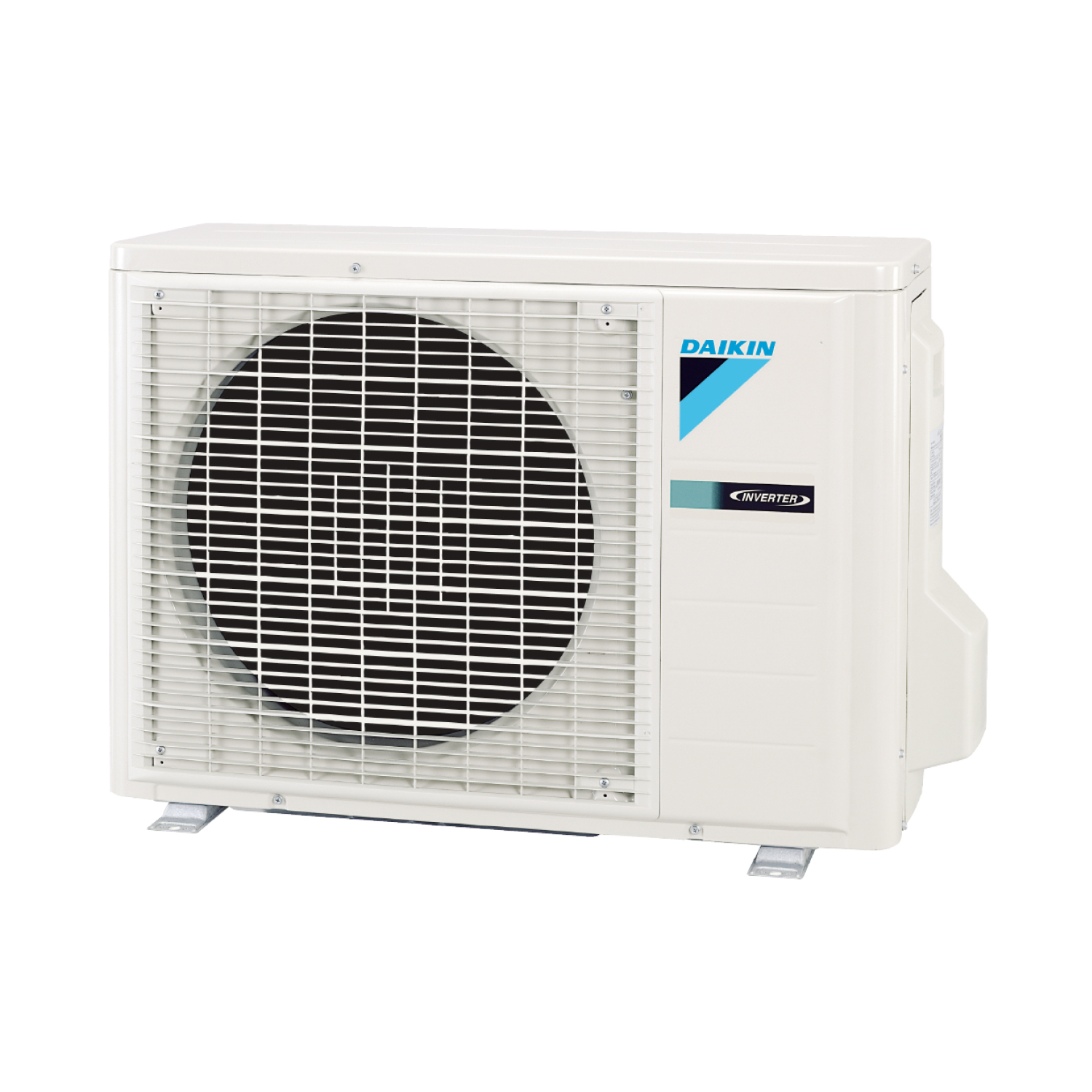

Outdoor Unit

RKS35EBVMA

Power Consumption

Cooling: 1.1 kW

Indoor Unit

Airflow Rate

Cooling: 6.5 - 10 (2 steps) m³/min

Dimensions (H x W x D)

Panel: 55 x 700 x 700 mm

Body: 286 x 575 x 575 mm

Sound Level

Cooling: 25 - 32 dB(A)

Weight

Panel: 2.7 kg

Body: 17.5 kg

Outdoor Unit

Dimensions (H x W x D)

550 x 765 x 285 mm

Piping Connections

Gas: Ø9.5Ø9.5 mm

Liquid: Ø6.4 mm

Max. Height Difference

15 m

Weight

34 kg

Max. Piping Length

20 m

Accessories/Functions

Remote Controller Model (Wired)

BRC2E61 (optional)

Remote Controller Model (Wireless)

BRC7E531W (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
