FDMR Non-inverter Middle Static Pressure Duct Split Type (Metal Blower Series)
Specifications
Model

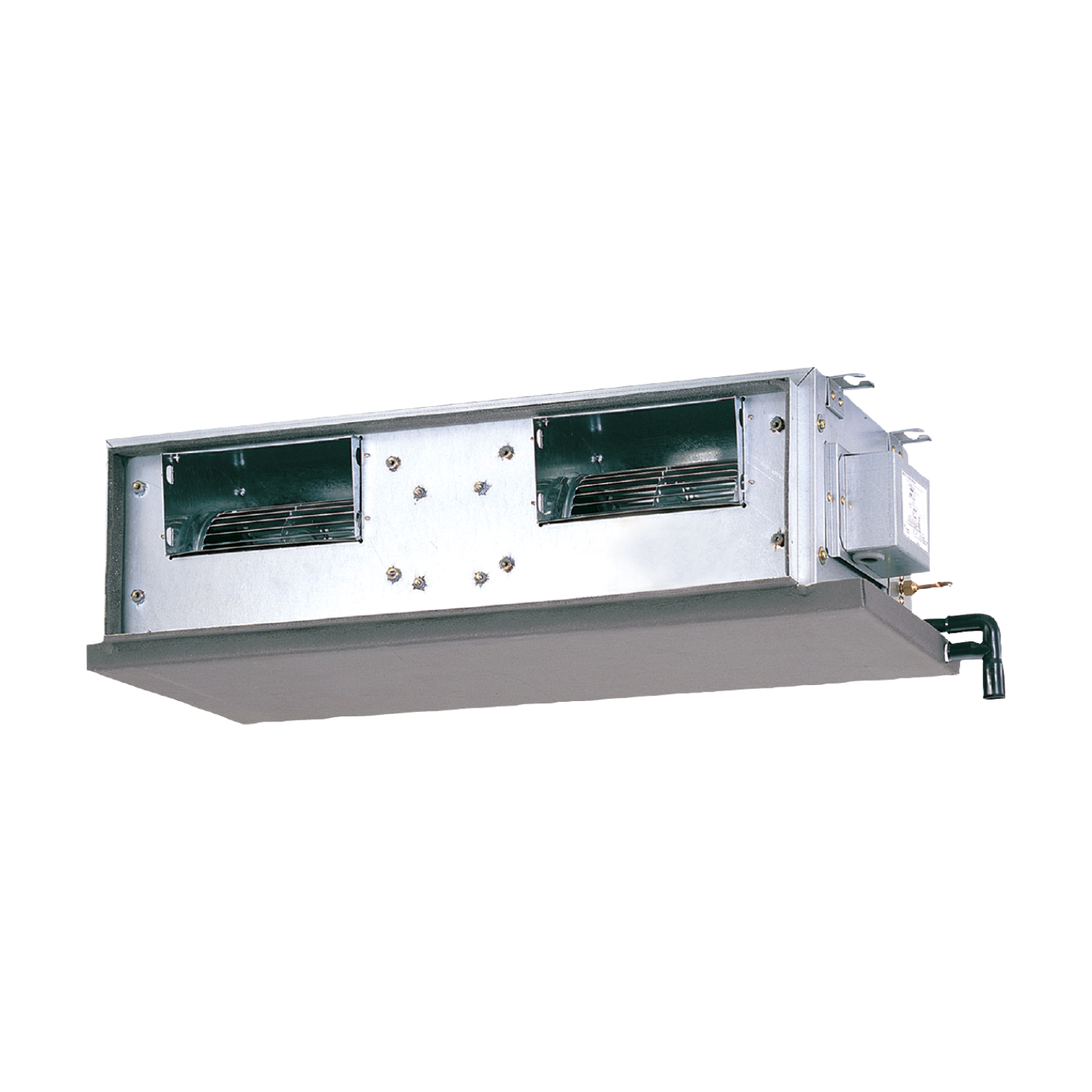

Indoor Unit
FDMR100AXV1H
Cooling Capacity
10.55 kW
36,000 Btu/h
Power Supply
3Ø, 380-415V, 50Hz

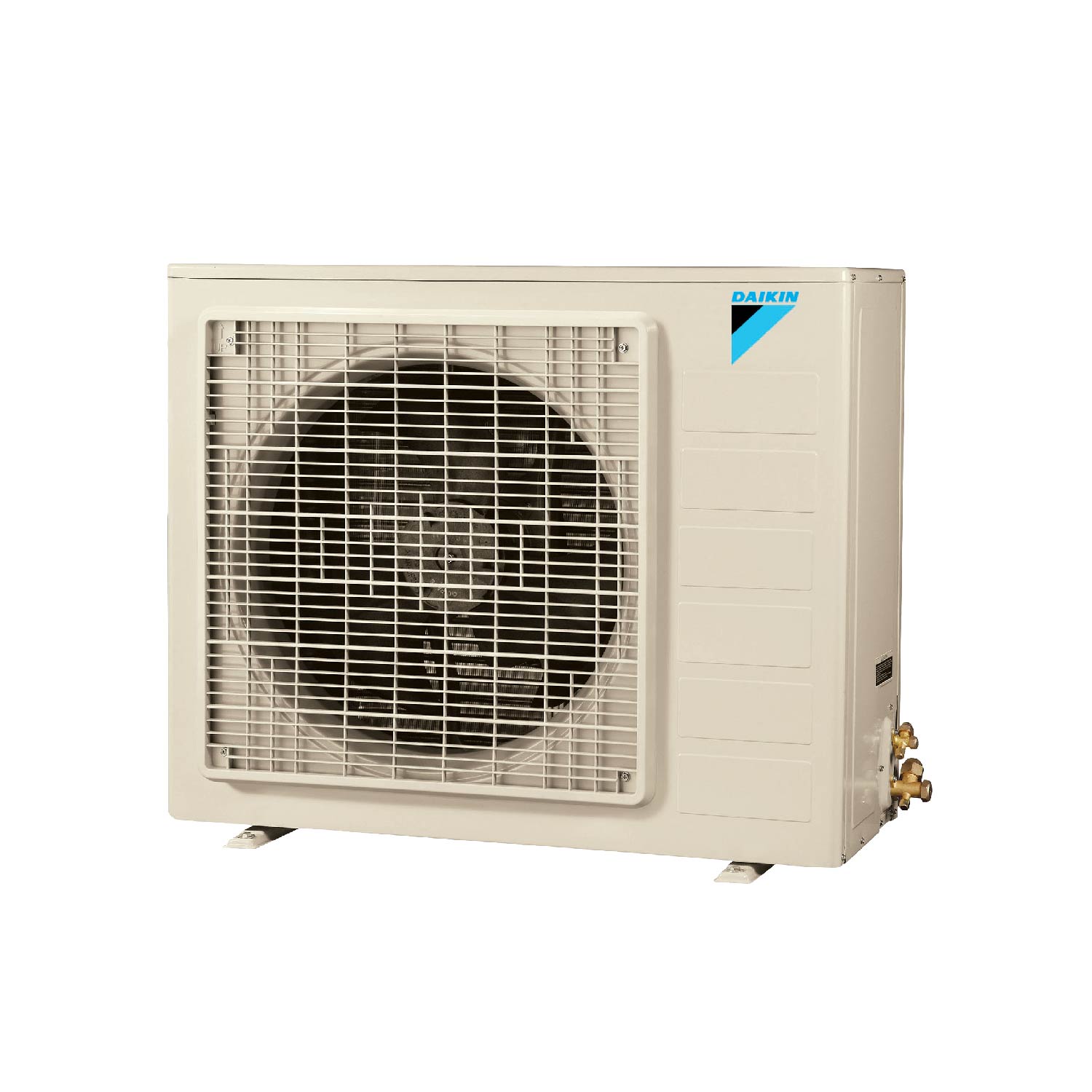

Outdoor Unit
RR100BY19
Power Consumption
Cooling: 3.8 kW
Indoor Unit
Airflow Rate
Cooling: 26.0 - 32.8 (3 steps) m³/min
Sound Level
Cooling: 45 - 49 dB(A)
Weight
49 kg
External Static Pressure
36 - 70 Pa
Dimensions (H x W x D)
305 x 1,306 x 638 mm
Outdoor Unit
Dimensions (H x W x D)
852 x 1,030 x 428 mm
Piping Connections
Gas: Ø15.88 mm
Liquid: Ø9.52 mm
Max. Height Difference
30 m
Weight
71 kg
Max. Piping Length
50 m
Accessories/Functions
Remote Controller Model (Wired)
included
Remote Controller Model (Wireless)
BRC52A62 (optional)
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
Suitable for industrial and commercial use
