FDBR Non-inverter Low Static Pressure Duct Split Type (Metal Blower Series)
Specifications
Model
Indoor Unit
FDBR35BV1H
Cooling Capacity
3.66 kW
12,500 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Outdoor Unit
RN35BV1H
Power Consumption
Cooling: 1.295 kW

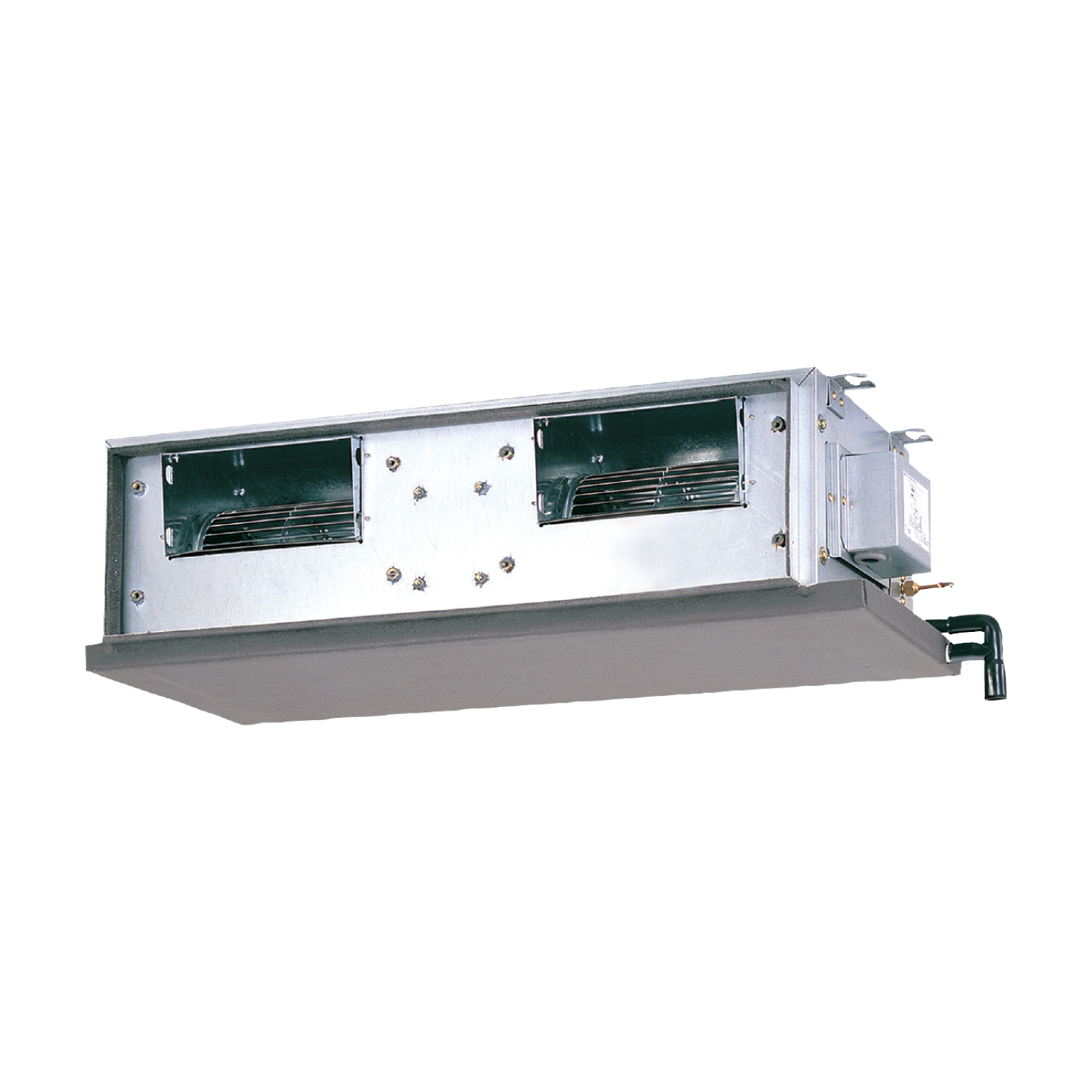

Indoor Unit
Airflow Rate
Cooling: 9.9 - 11.6 (3 steps) m³/min
Sound Level
Cooling: 21 - 31 dB(A)
Weight
22 kg
External Static Pressure
10 - 29 Pa
Dimensions (H x W x D)
261 x 905 x 411 mm

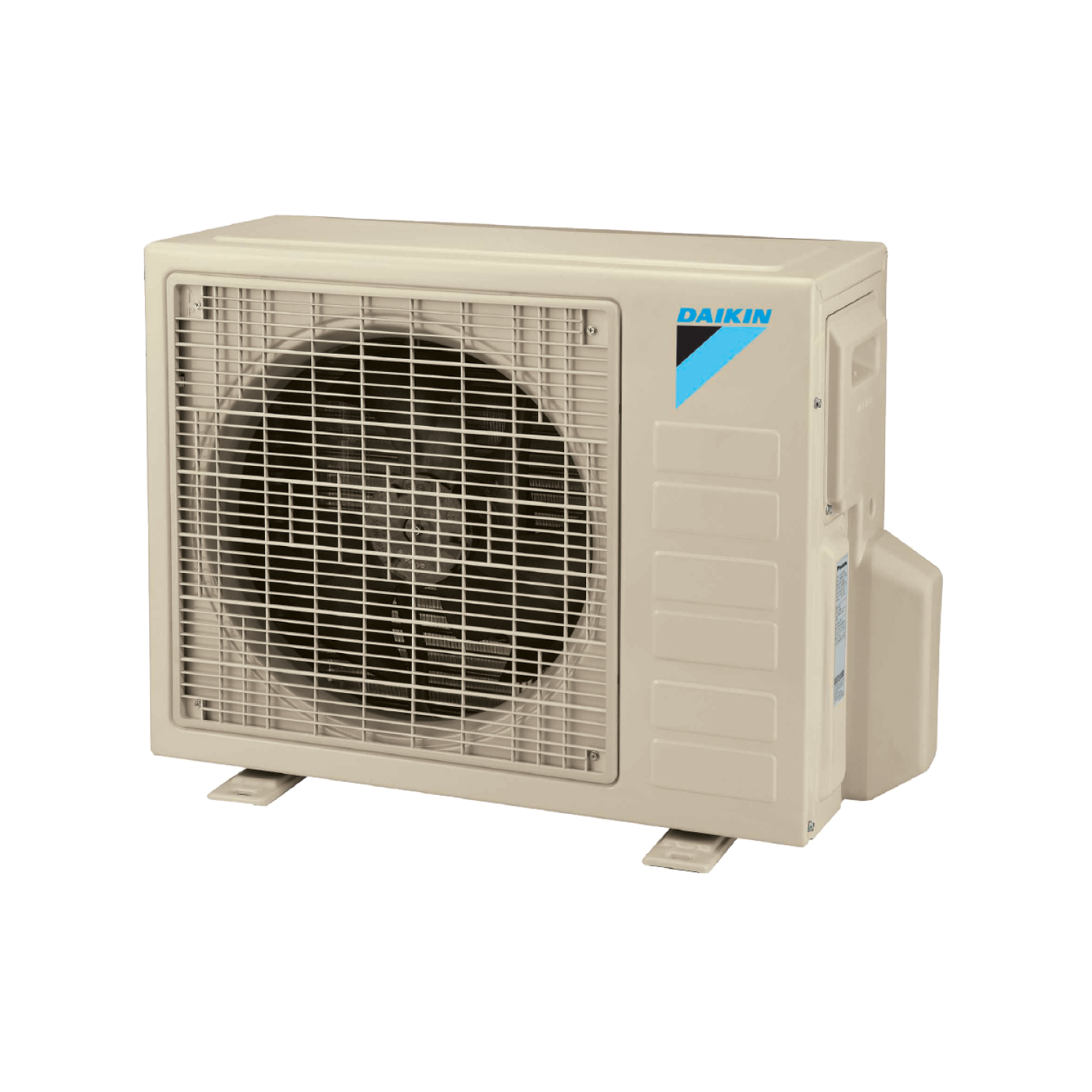

Outdoor Unit
Dimensions (H x W x D)
550 x 658 x 273 mm
Piping Connections
Gas: Ø12.7 mm
Liquid: Ø6.35 mm
Max. Height Difference
10 m
Weight
29 kg
Max. Piping Length
20 m
Accessories/Functions
Remote Controller Model (Wired)
included
Remote Controller Model (Wireless)
BRC52A62 (optional)
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
Suitable for industrial and commercial use
