FHNQ Non-inverter Ceiling Suspended Split Type

Back

Select hp/model

Paired model:

Specifications

Model

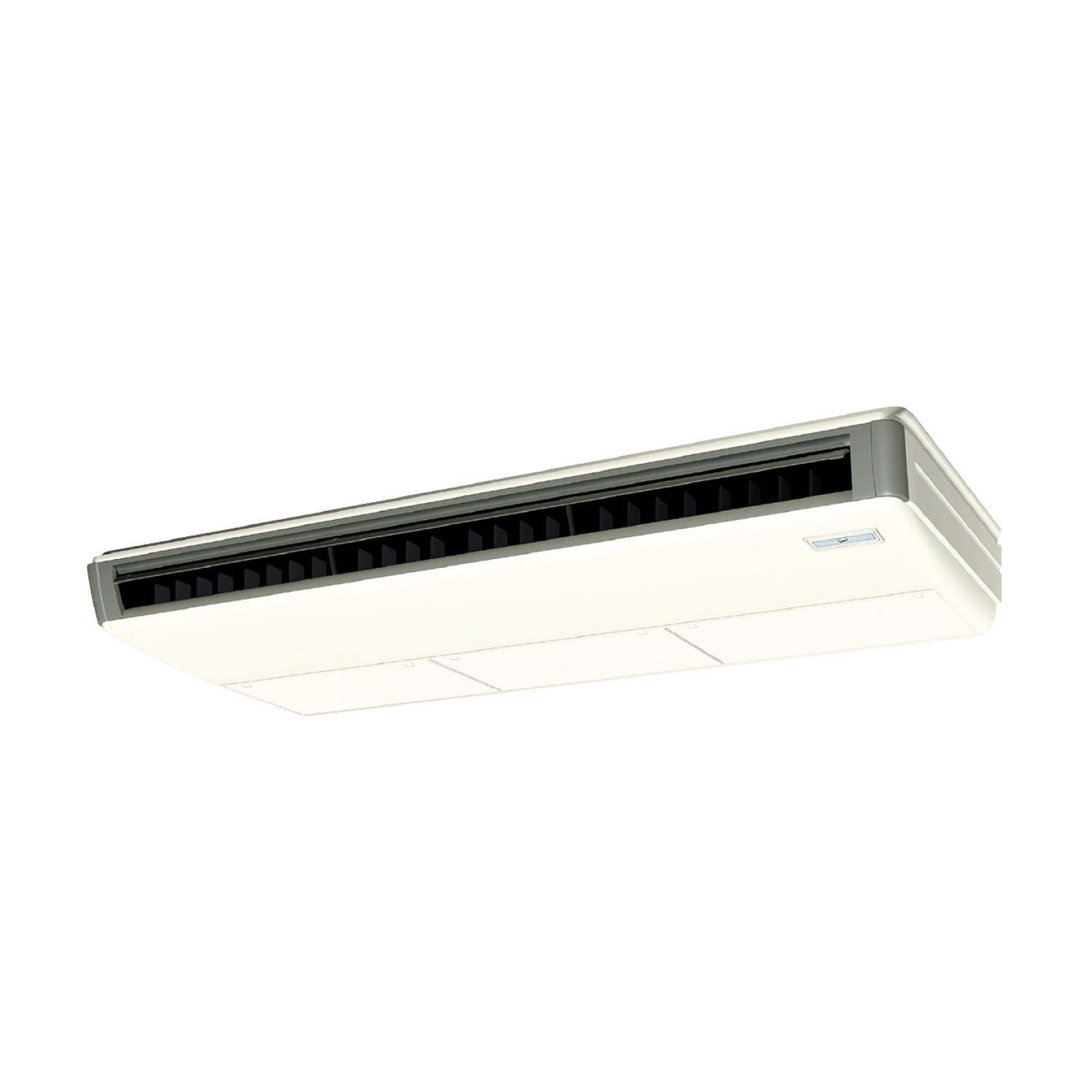

Indoor Unit

FHNQ140MV1

Cooling Capacity

14.1 kW

48,000 Btu/h

Power Supply

3Ø, 380-415V, 50Hz

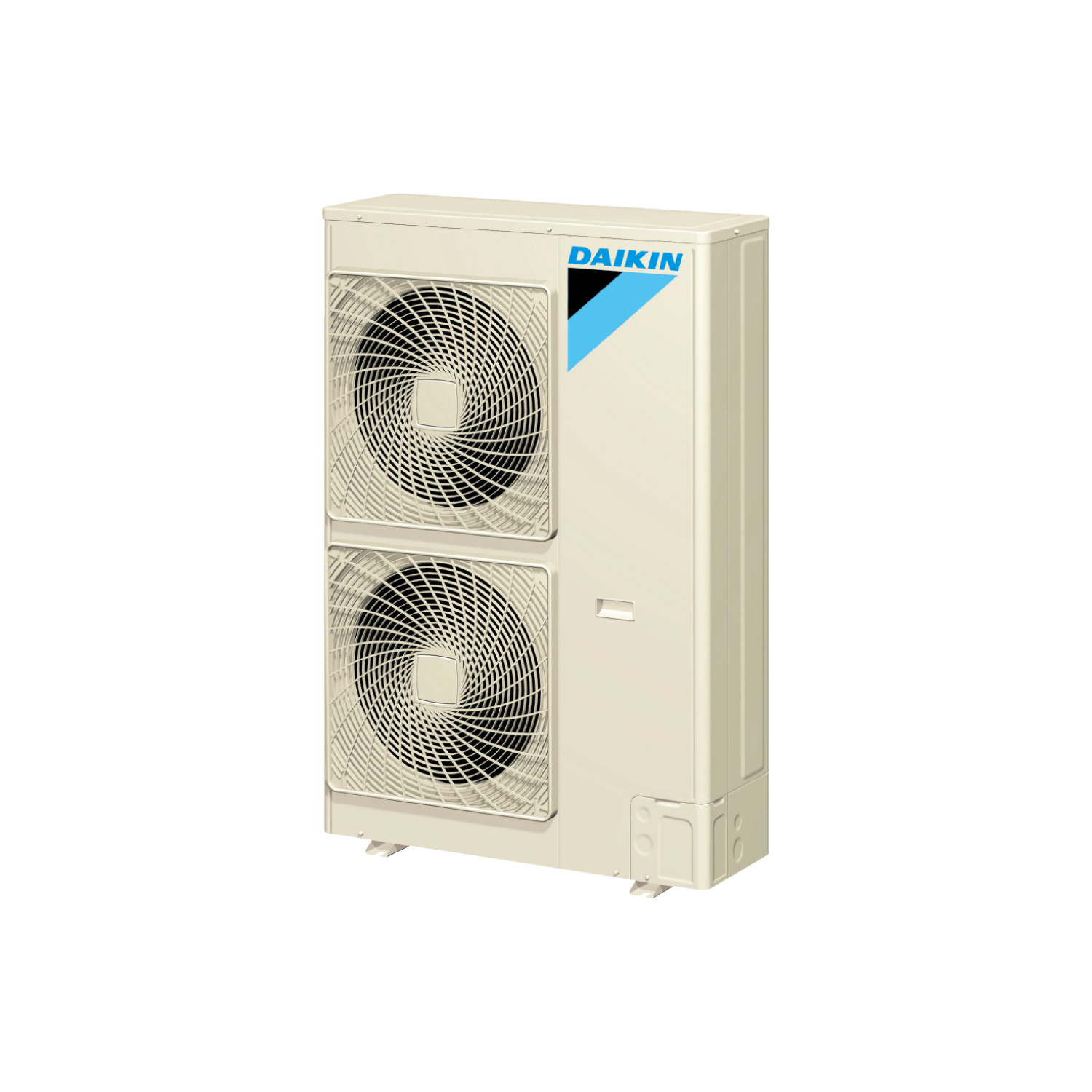

Outdoor Unit

RNQ140MY1

Power Consumption

Cooling: 5.51 kW

Indoor Unit

Airflow Rate

Cooling: 24 - 42 (2 steps) m³/min

Dimensions (H x W x D)

195 x 1,590 x 680 mm

Sound Level

Cooling: 43 - 49 dB(A)

Weight

35 kg

Outdoor Unit

Dimensions (H x W x D)

1,345 x 900 x 320 mm

Piping Connections

Gas: Ø15.9 mm

Liquid: Ø9.5 mm

Max. Height Difference

30 m

Weight

111 kg

Max. Piping Length

50 m

Accessories/Functions

Remote Controller Model (Wired)

BRC1NU61 (optional)

Remote Controller Model (Wireless)

BRC7NU66 (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m
