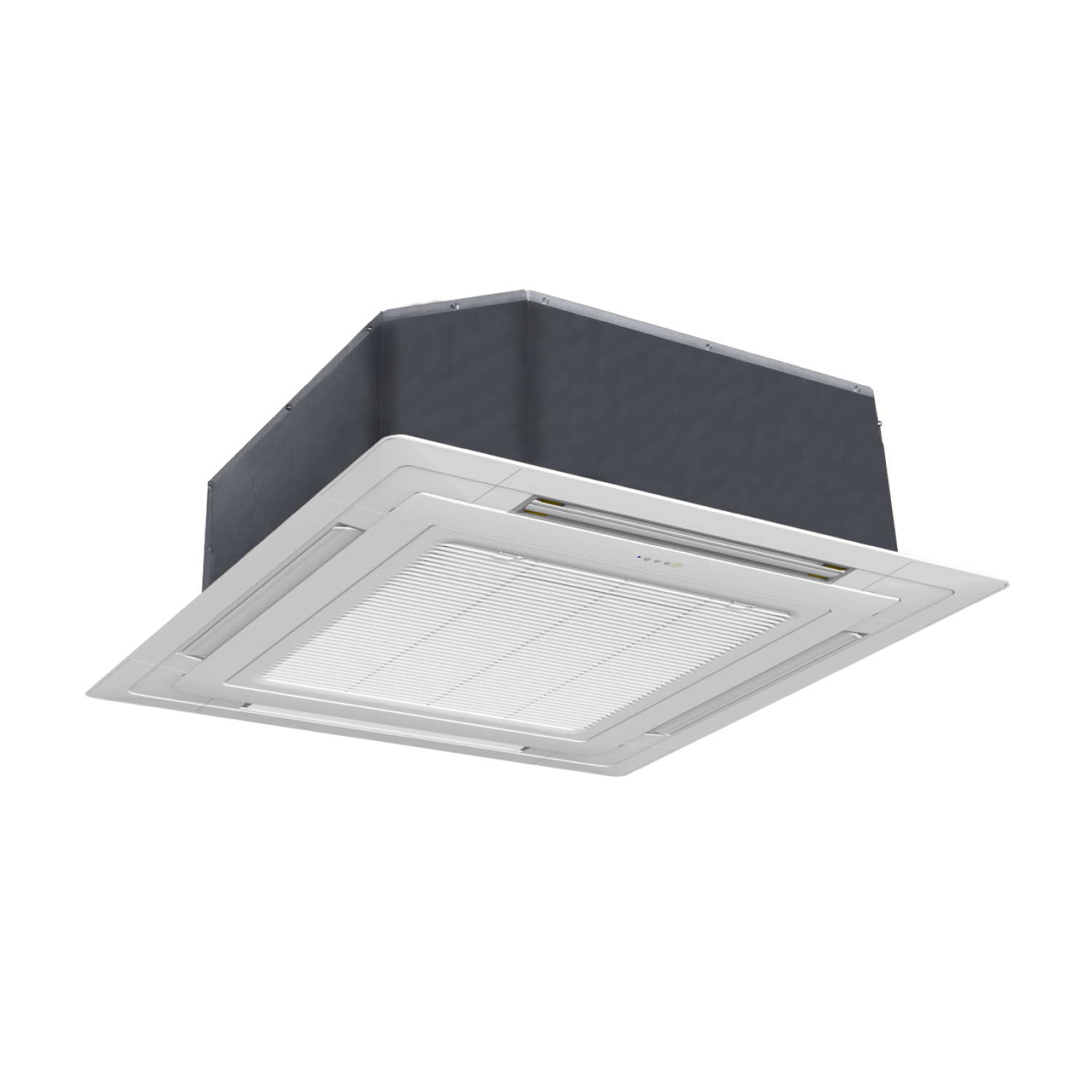

FCRN Non-inverter Cassette Split Type (Below 100kg Series)

Back

Select hp/model

Paired model:

Specifications

Model

Indoor Unit

FCRN140AV1

Cooling Capacity

13.2 kW

45,000 Btu/h

Power Supply

3Ø, 380-415V, 50Hz

Outdoor Unit

RR140BY19

Power Consumption

Cooling: 4.81 kW

Indoor Unit

Airflow Rate

Cooling: 25.2 - 31.7 (3 steps) m³/min

Weight

Panel: 5 kg

Body: 29 kg

Dimensions (H x W x D)

Panel: 55 x 950 x 950 mm

Body: 288 x 840 x 840 mm

Outdoor Unit

Dimensions (H x W x D)

852 x 1,030 x 428 mm

Piping Connections

Gas: Ø15.88 mm

Liquid: Ø9.52 mm

Max. Height Difference

30 m

Weight

98 kg

Max. Piping Length

50 m

Accessories/Functions

Remote Controller Model (Wired)

BRC51A62 (optional)

Remote Controller Model (Wireless)

included

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
