FCRN Non-inverter Cassette Split Type (Below 100kg Series)

Back

Select hp/model

Paired model:

Outdoor unit - RR71BV19 / RR71BY19

Specifications

Model

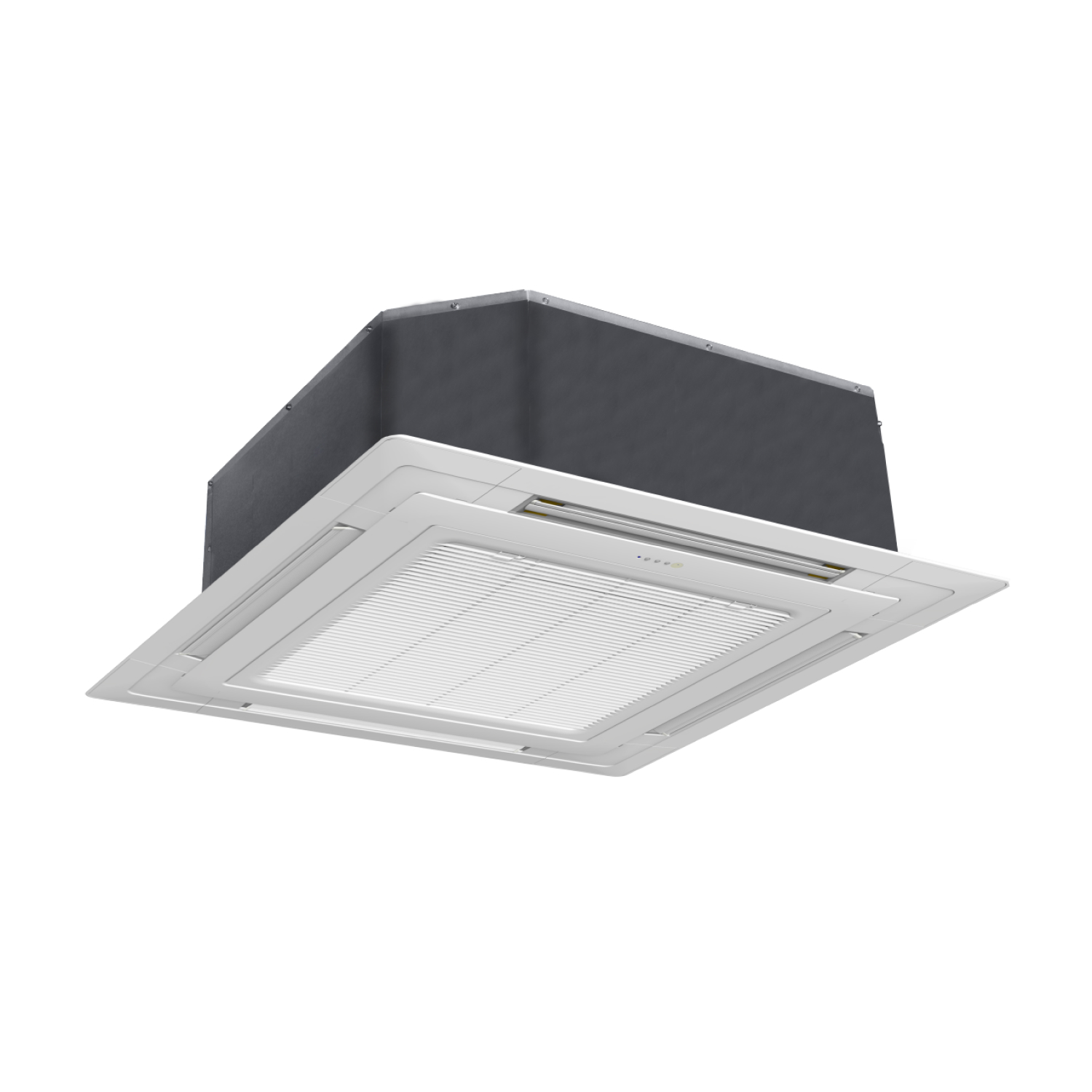

Indoor Unit

FCRN71AV1

Cooling Capacity

8.21 kW

28,000 Btu/h

Power Supply

RR71BV19: 1Ø, 220-240V, 50Hz / RR71BY19: 3Ø, 380-415V, 50Hz

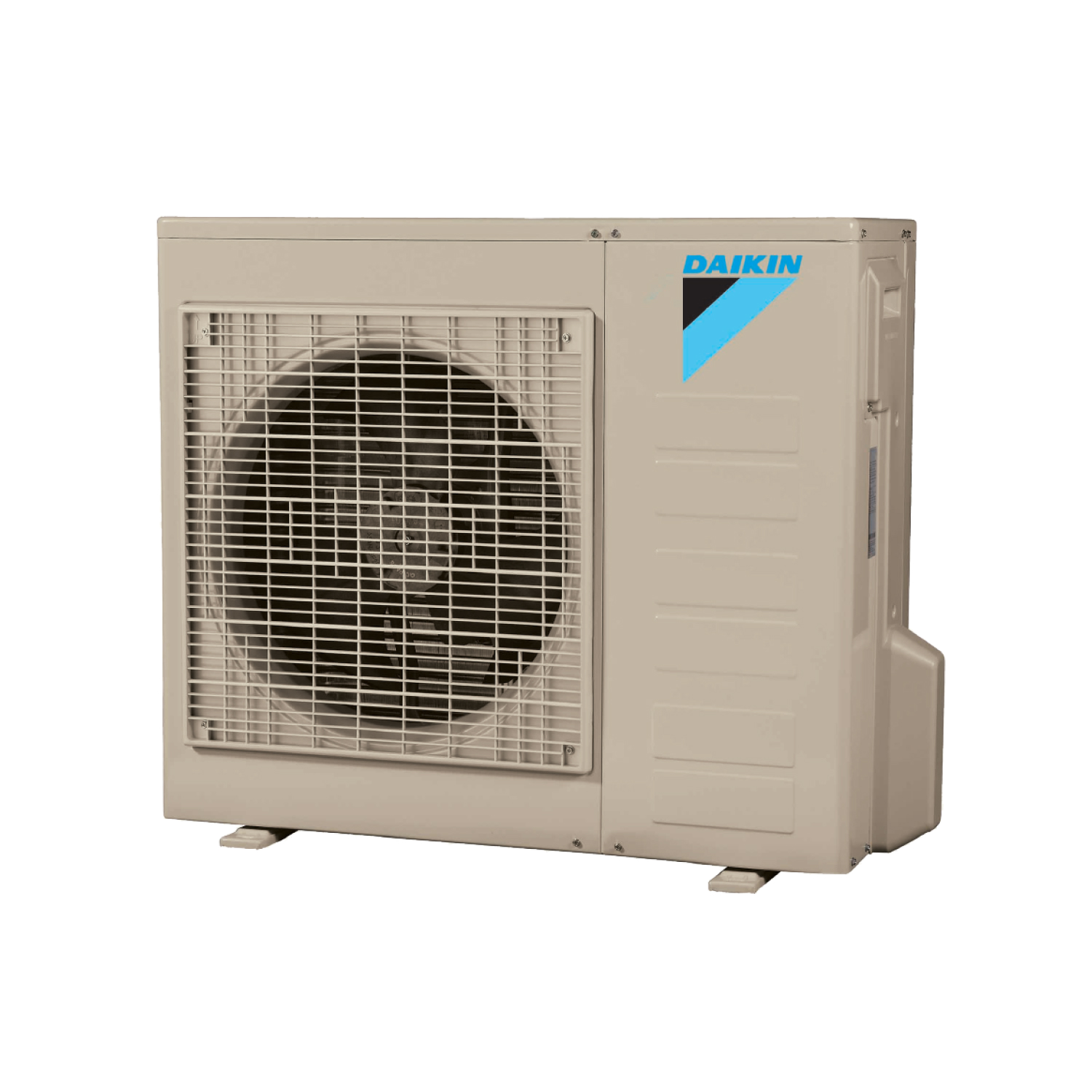

Outdoor Unit

RR71BV19 / RR71BY19

Power Consumption

Cooling: RR71BV19: 2.93 / RR71BY19: 2.9 kW

Indoor Unit

Airflow Rate

Cooling: 17.5 - 25.2 (3 steps) m³/min

Dimensions (H x W x D)

Panel: 55 x 950 x 950 mm

Body: 246 x 840 x 840 mm

Sound Level

Cooling: 32 - 41 dB(A)

Weight

25 kg

Body: 5 kg

Outdoor Unit

Dimensions (H x W x D)

753 x 855 x 328 mm

Piping Connections

Gas: Ø15.88 mm

Liquid: Ø9.52 mm

Max. Height Difference

25 m

Weight

RR71BV19: 57 / RR71BY19: 56 kg

Max. Piping Length

45 m

Accessories/Functions

Remote Controller Model (Wired)

BRC51A62 (optional)

Remote Controller Model (Wireless)

included

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
