FBQ Inverter Middle Static Pressure Duct Split Type (Plastic Blower E Series)
Specifications
Model

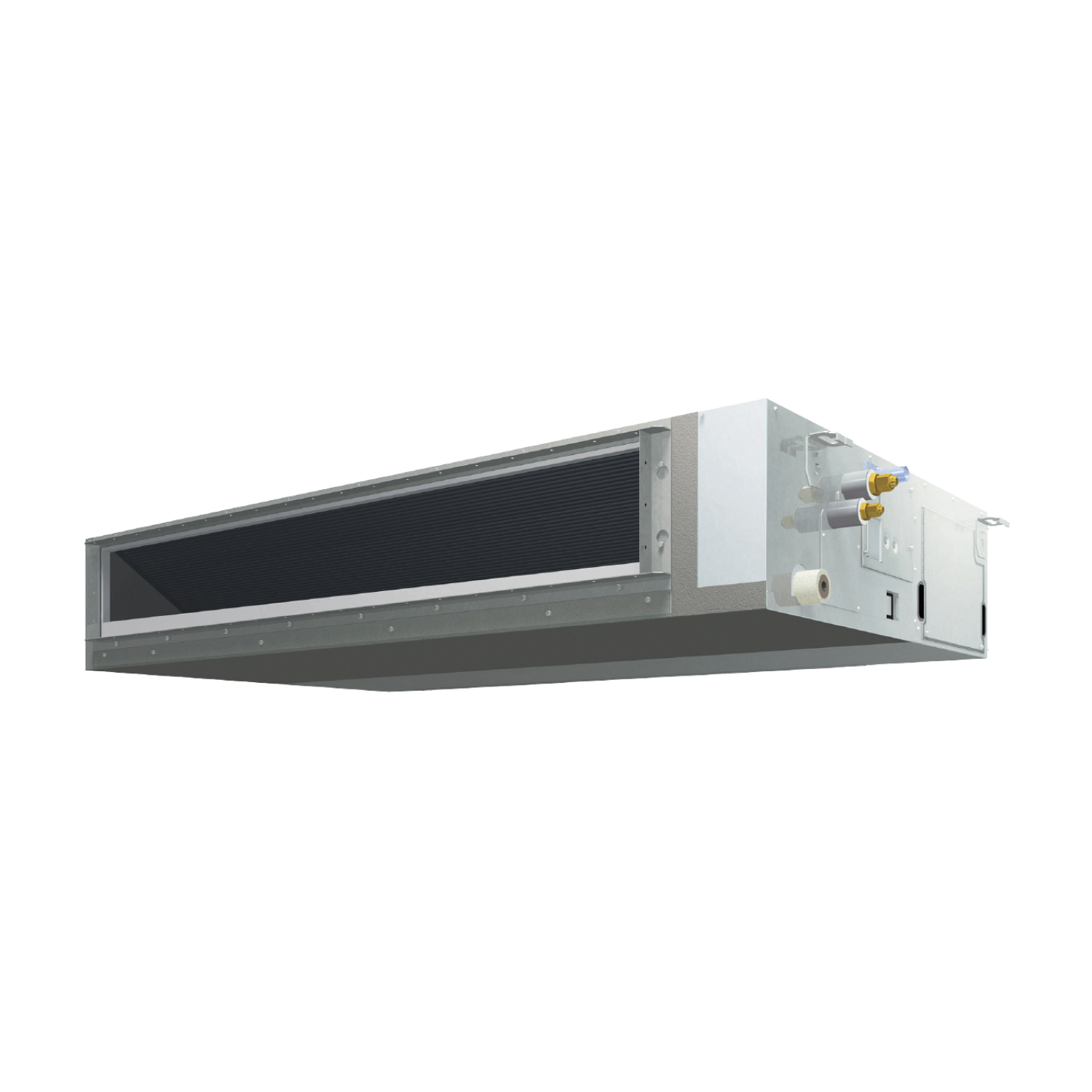

Indoor Unit
FBQ125EVE
Cooling Capacity
12.5 kW
42,700 Btu/h
Power Supply
3Ø, 380-415V, 50Hz

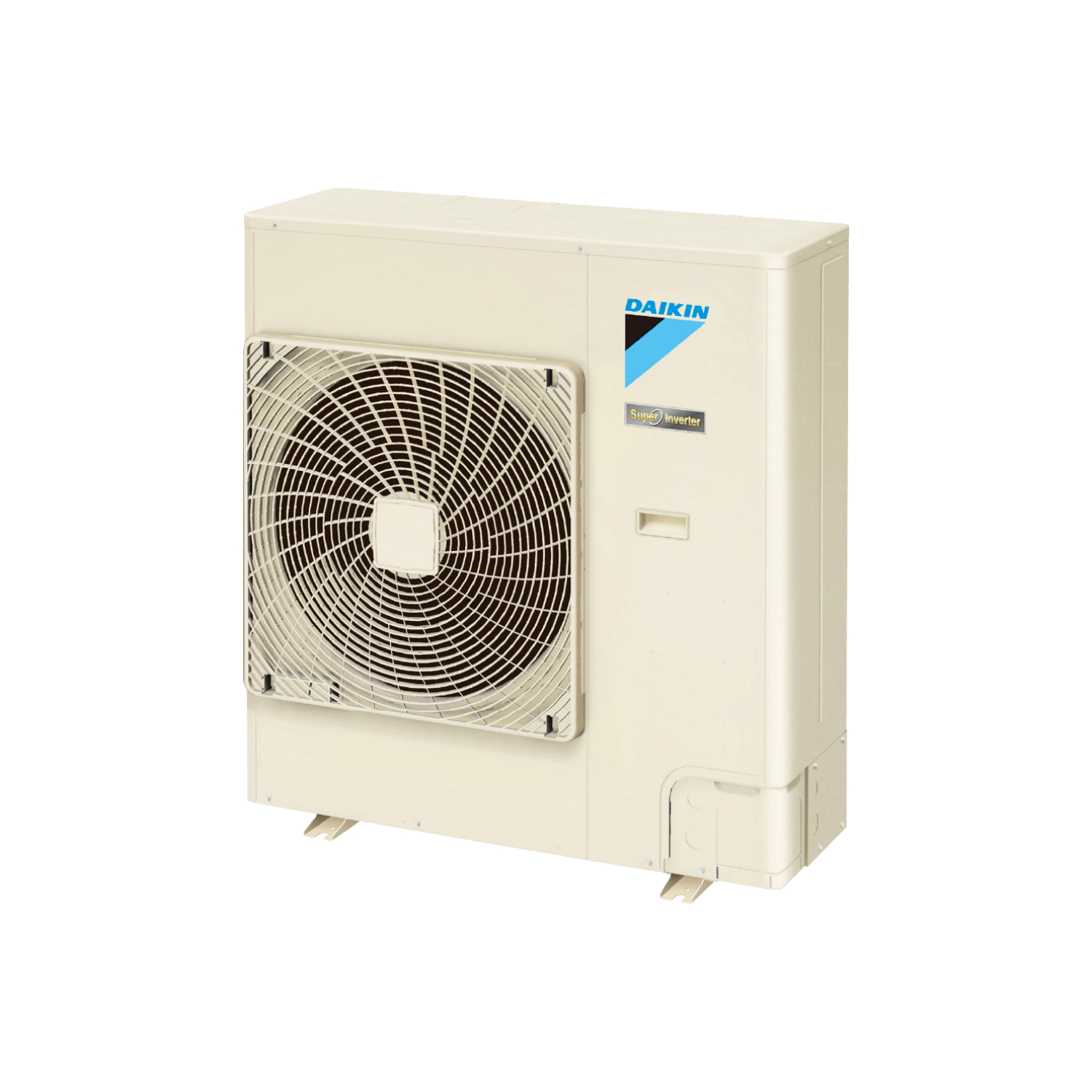

Outdoor Unit
RZR125MYM
Power Consumption
Cooling: 4.58 kW
Indoor Unit
Airflow Rate
Cooling: 25 - 36 (3 steps) m³/min
Sound Level
Cooling: 33 - 38 dB(A)
Weight
47 kg
External Static Pressure
50 - 150 Pa
Dimensions (H x W x D)
245 x 1,400 x 800 mm
Outdoor Unit
Dimensions (H x W x D)
990 x 940 x 320 mm
Piping Connections
Gas: Ø15.9 mm
Liquid: Ø9.5 mm
Max. Height Difference
30 m
Weight
73 kg
Max. Piping Length
50 m
Accessories/Functions
Remote Controller Model (Wired)
BRC2E61 (optional)
Remote Controller Model (Wireless)
BRC4C66 (optional)
Remarks
The data are based on the conditions below:Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
