FHQ Inverter Ceiling Suspended Split Type (B Series)

Back

Select hp/model

Paired model:

Specifications

Model

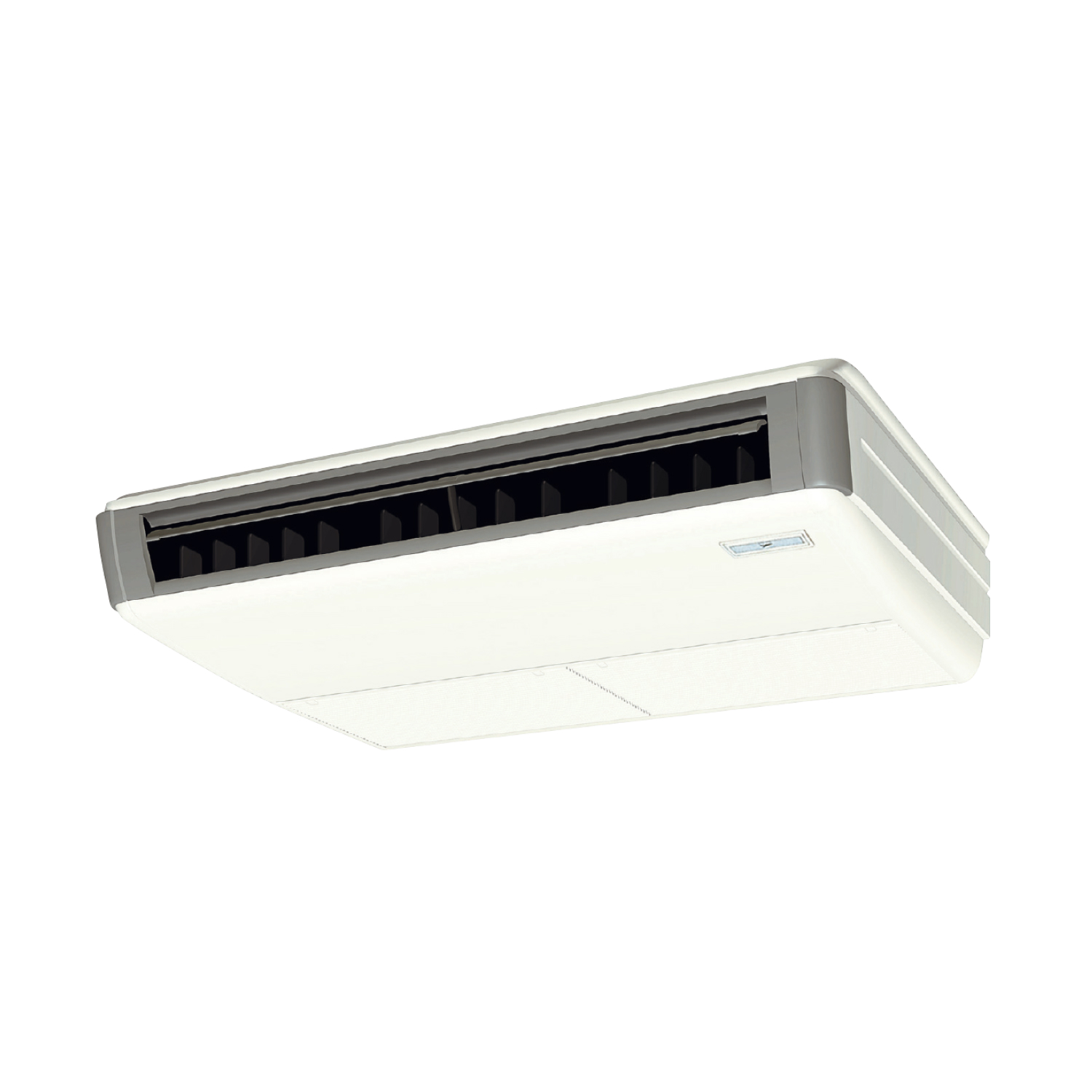

Indoor Unit

FHQ50BVV1B

Cooling Capacity

5 kW

17,100 Btu/h

Power Supply

1Ø, 220-240V, 50Hz

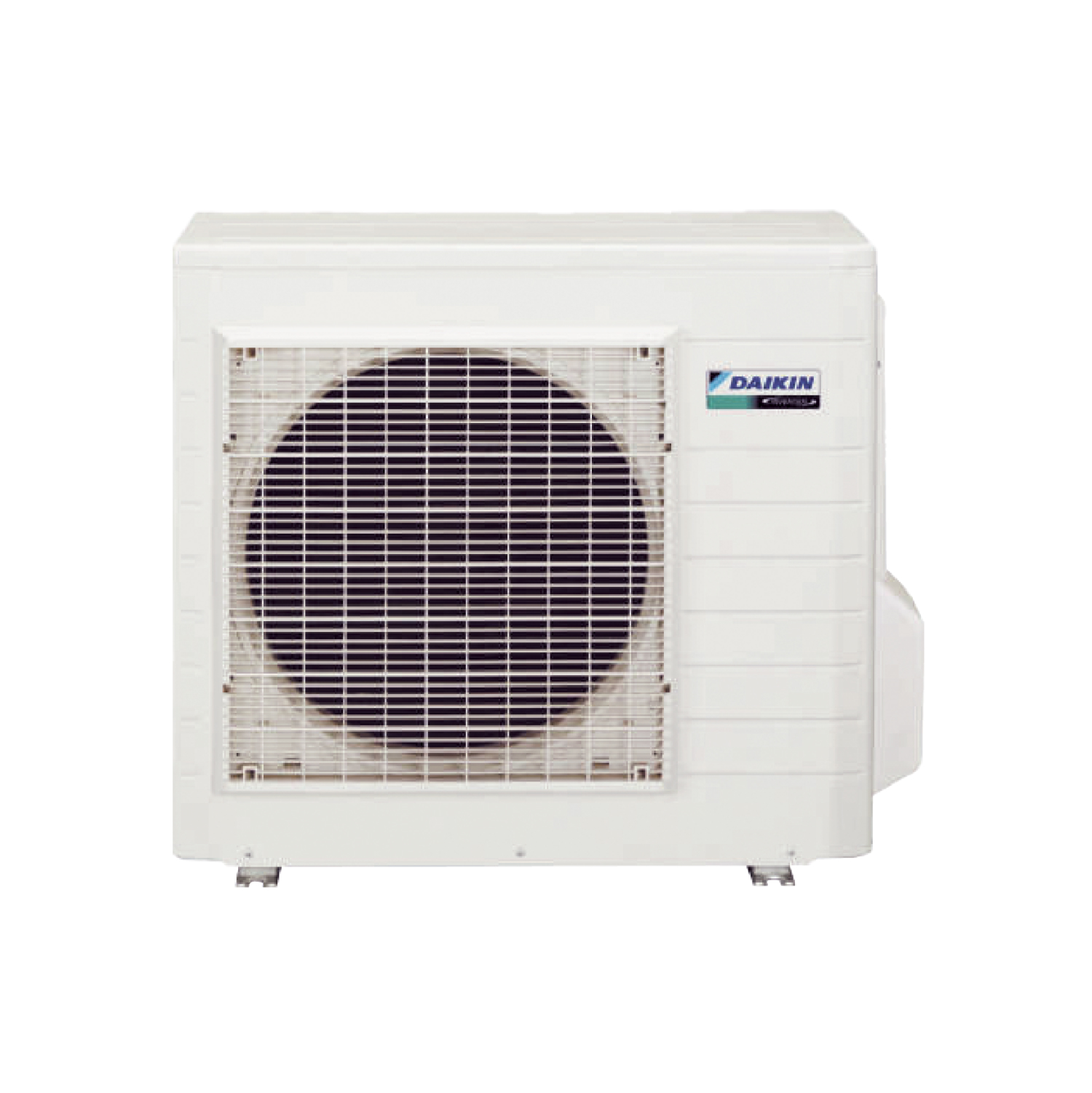

Outdoor Unit

RKS50FVMA

Power Consumption

Cooling: 1.72 kW

Indoor Unit

Airflow Rate

Cooling: 10 - 13 (2 steps) m³/min

Dimensions (H x W x D)

195 x 960 x 680 mm

Sound Level

Cooling: 33 - 38 dB(A)

Weight

25 kg

Outdoor Unit

Dimensions (H x W x D)

735 x 825 x 300 mm

Piping Connections

Gas: Ø12.7 mm

Liquid: Ø6.4 mm

Max. Height Difference

20 m

Weight

47 kg

Max. Piping Length

30 m

Accessories/Functions

Remote Controller Model (Wired)

BRC2E61 (optional)

Remote Controller Model (Wireless)

BRC7EA66 (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
