FCQ Inverter Cassette Split Type (Round Flow Series)
Specifications
Model

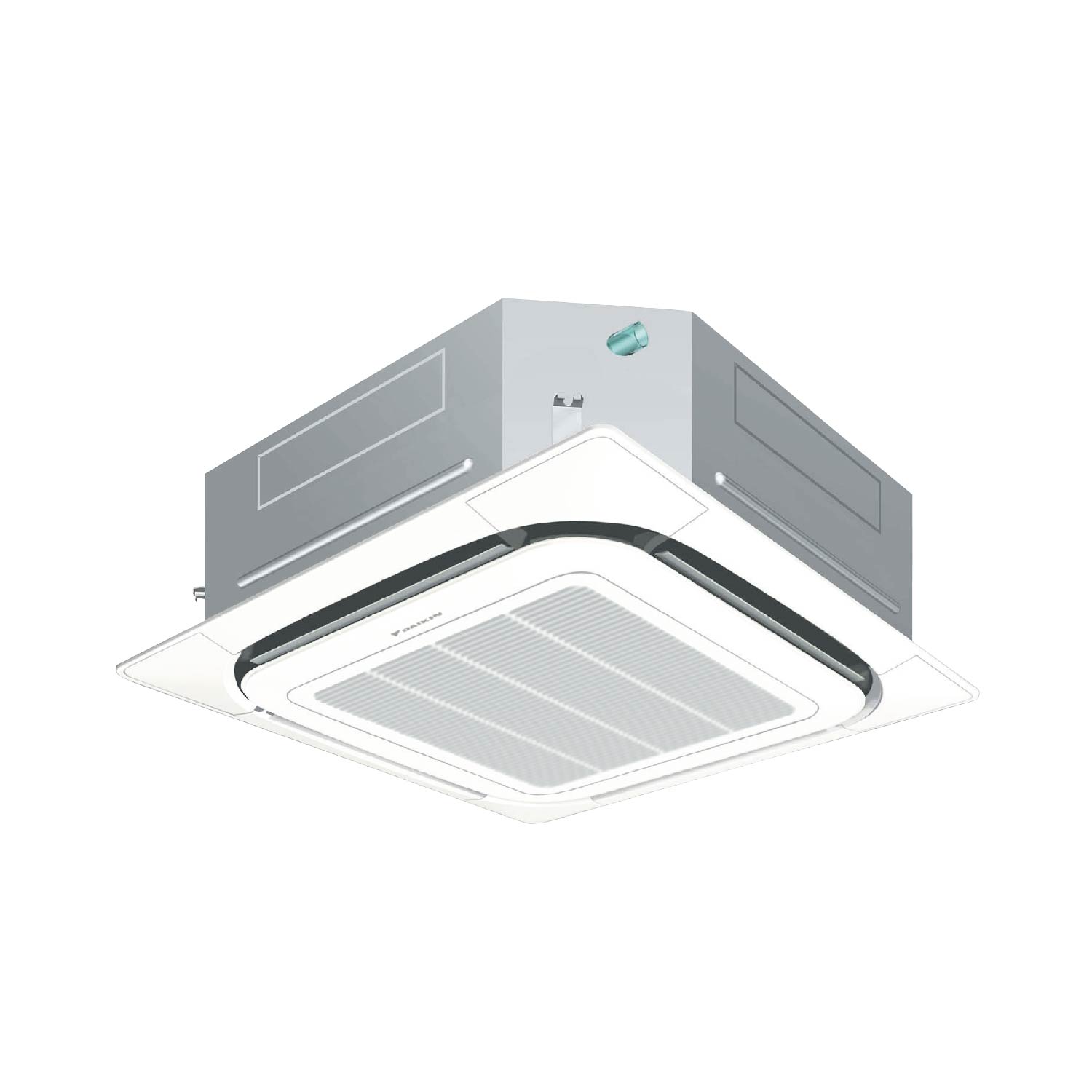

Indoor Unit
FCQ100KAVEA
Cooling Capacity
10 kW
34,100 Btu/h
Power Consumption
Cooling: 2.94 kW
Heating: 3.03 kW

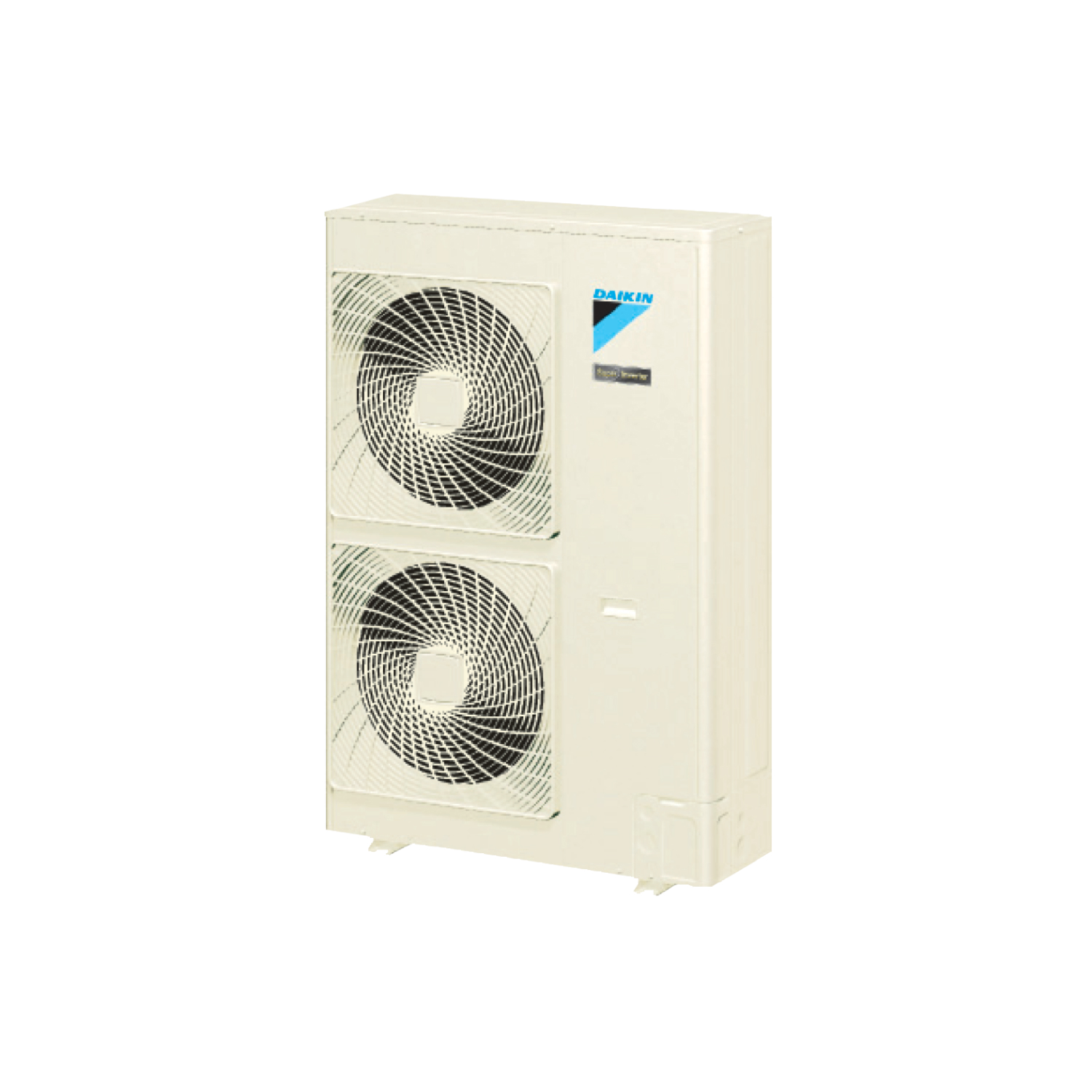

Outdoor Unit
RZQ100HAY4A
Heating Capacity
11.2 kW
38,200 Btu/h
Power Supply
3Ø, 415V, 50Hz
Indoor Unit
Airflow Rate
Cooling: 20 - 32 (3 steps) m³/min
Heating: 20 - 32 (3 steps) m³/min
Dimensions (H x W x D)
Panel: 50 x 950 x 950 mm
Body: 298 x 840 x 840 mm
Sound Level
Cooling: 32 - 43 dB(A)
Heating: 32 - 43 dB(A)
Weight
Panel: 5.5 kg
Body: 24 kg
Outdoor Unit
Dimensions (H x W x D)
1,345 x 900 x 320 mm
Piping Connections
Gas: Ø15.9 mm
Liquid: Ø9.5 mm
Max. Height Difference
30 m
Weight
108 kg
Max. Piping Length
75 m
Accessories/Functions
Remote Controller Model (Wired)
BRC2E61 (optional)
Remote Controller Model (Wireless)
BRC7F634F (optional)
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Heating: indoor temp. 20°CDB/15°CWB; outdoor temp. 7°CDB/6°CWB
Piping length: 7.5m
