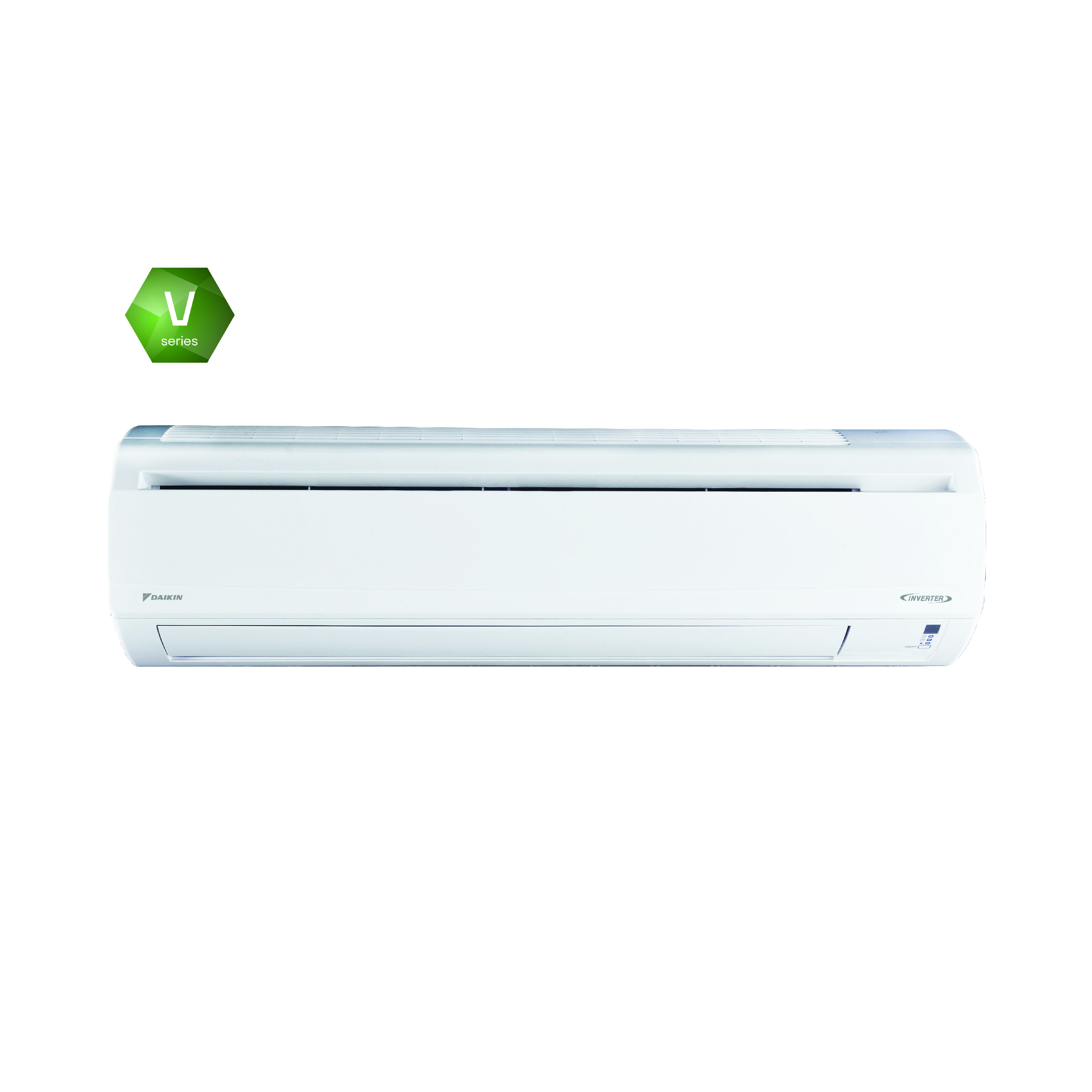

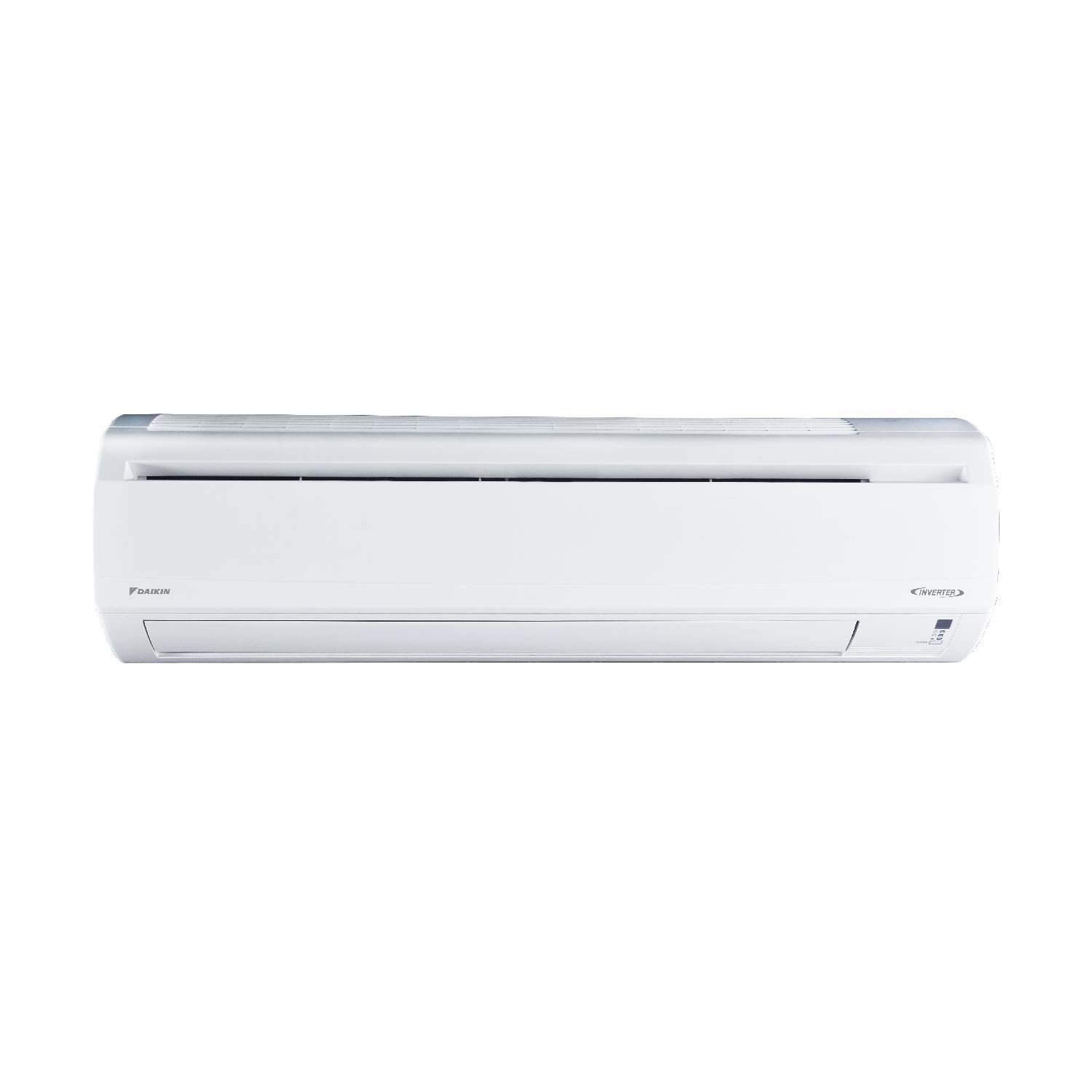

FTV R32 Cooling Only Wall Mounted Split Type (For Macau Market)
- Cooling only
Specifications
Model
Indoor Unit
FTV50CV19
Cooling Capacity
5.28 kW
18,000 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Outdoor Unit
RV50CV19
Power Consumption
Cooling: 1,660 W
Indoor Unit
Airflow Rate
Cooling: 13.02 - 15.03 (3 steps) m³/min
Dimensions (H x W x D)
310 x 1,065 x 224 mm
Sound Level
Cooling: 36 - 42 dB(A)
Weight
14 kg

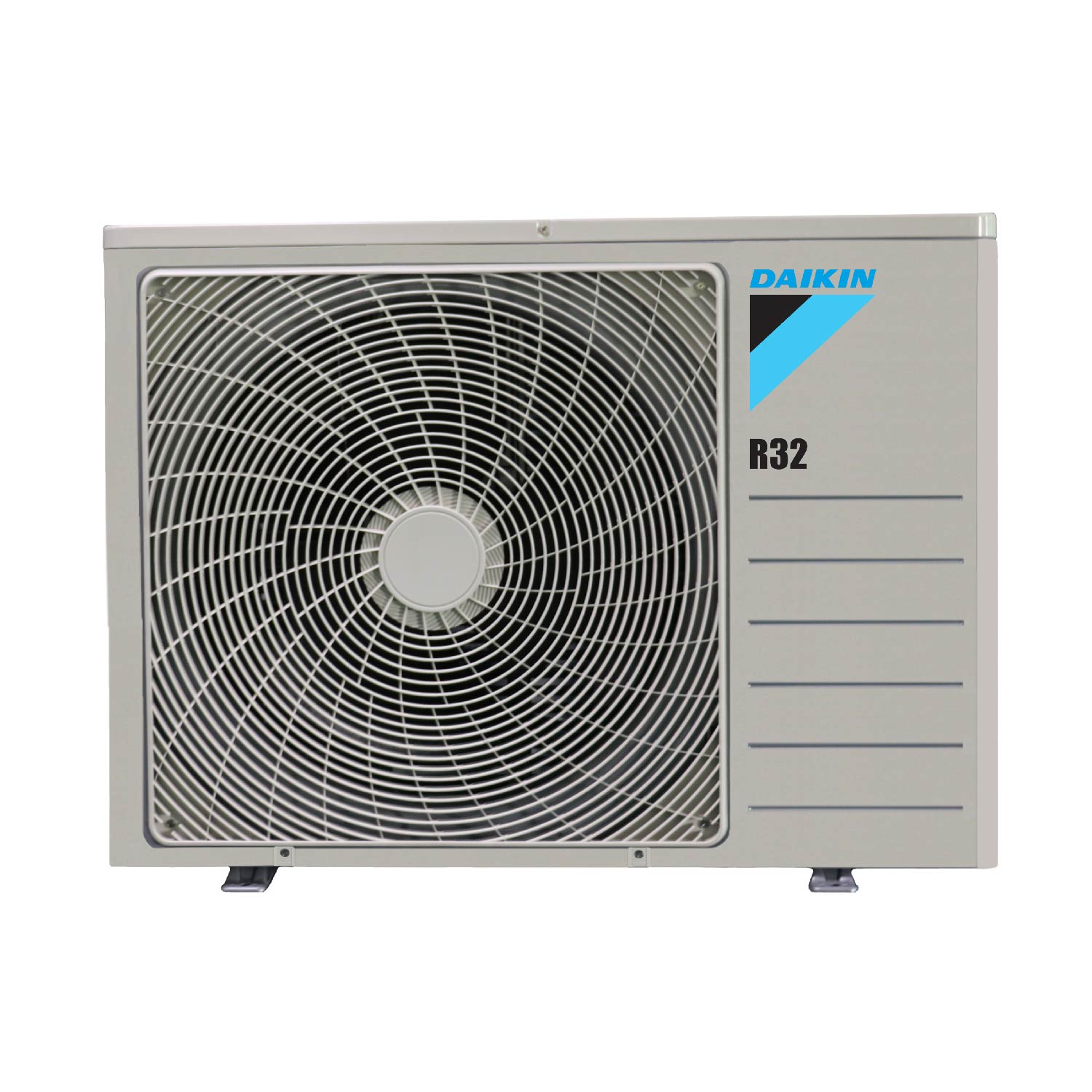

Outdoor Unit
Dimensions (H x W x D)
615 x 845 x 300 mm
Piping Connections
Gas: Ø12.7 mm
Liquid: Ø6.35 mm
Max. Height Difference
15 m
Weight
40 kg
Max. Piping Length
30 m
Accessories/Functions
Remote Controller Model (Wireless)
BRC52A62
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
R32 is classified as mildly flammable refrigerant. Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation.
