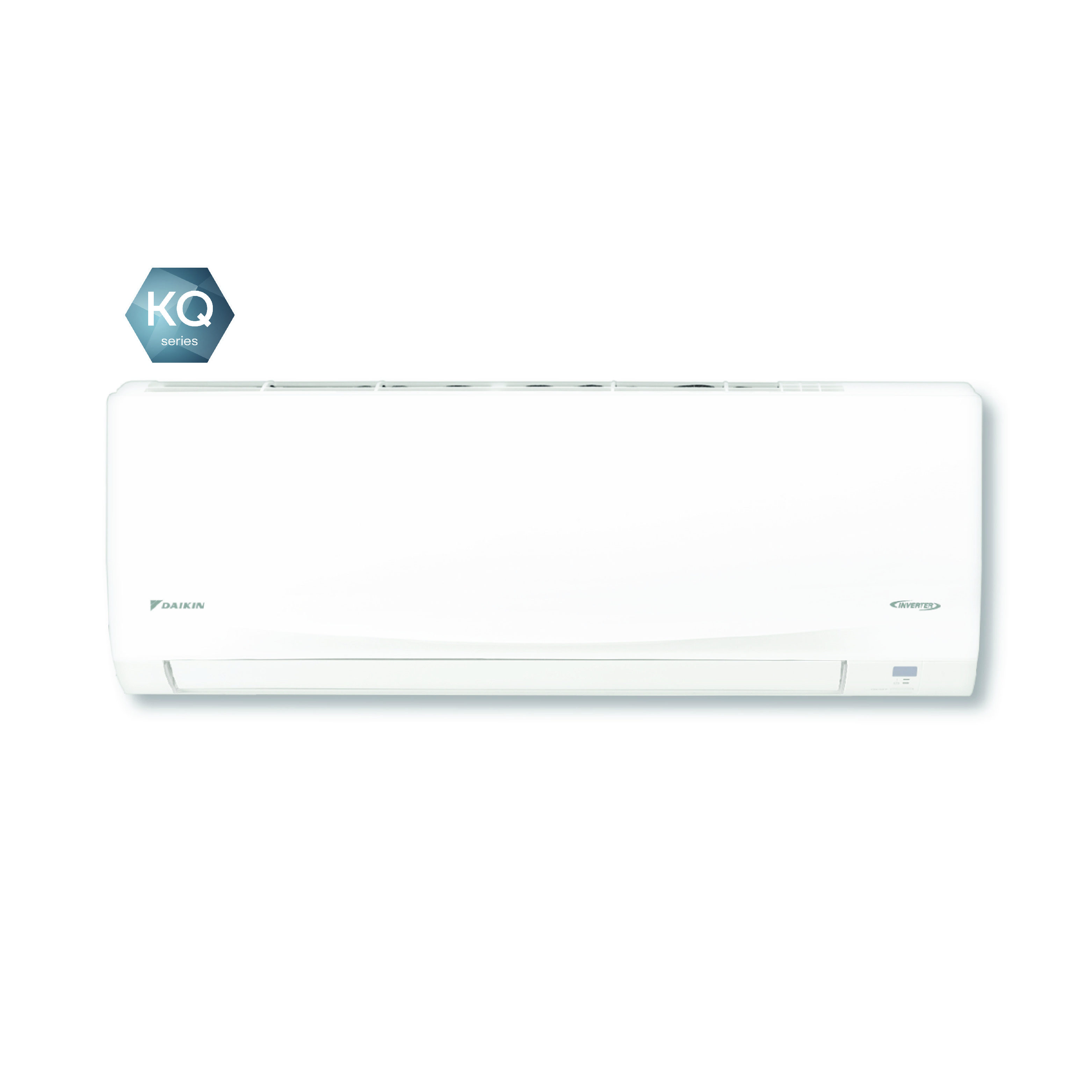

FTKQ R32 Inverter Cooling Only Wall Mounted Split Type (For Macau Market)
Specifications
Model

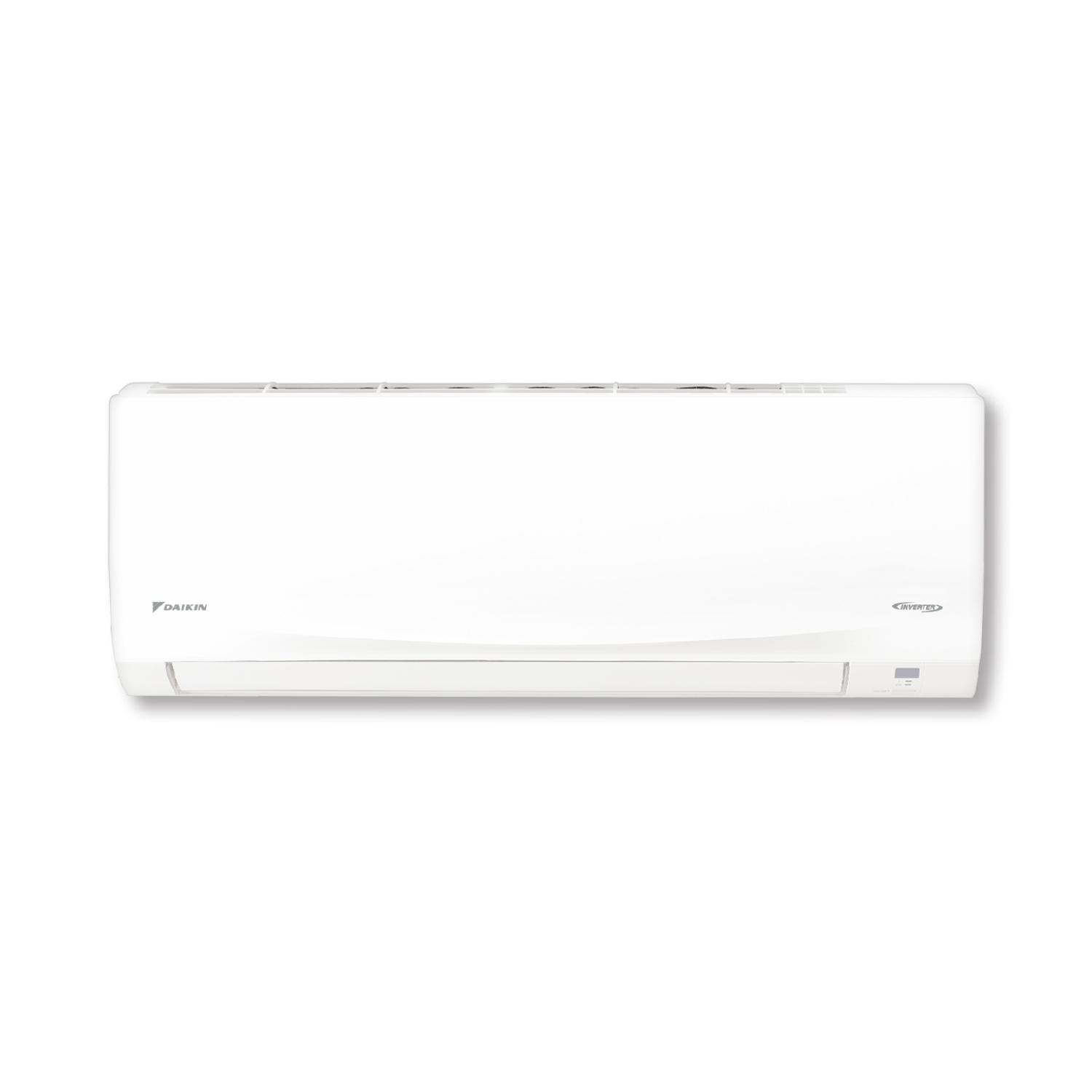

Indoor Unit
FTKQ60TVM
Cooling Capacity
6 kW
20,500 Btu/h
Power Supply
1Ø, 220-240V, 50Hz

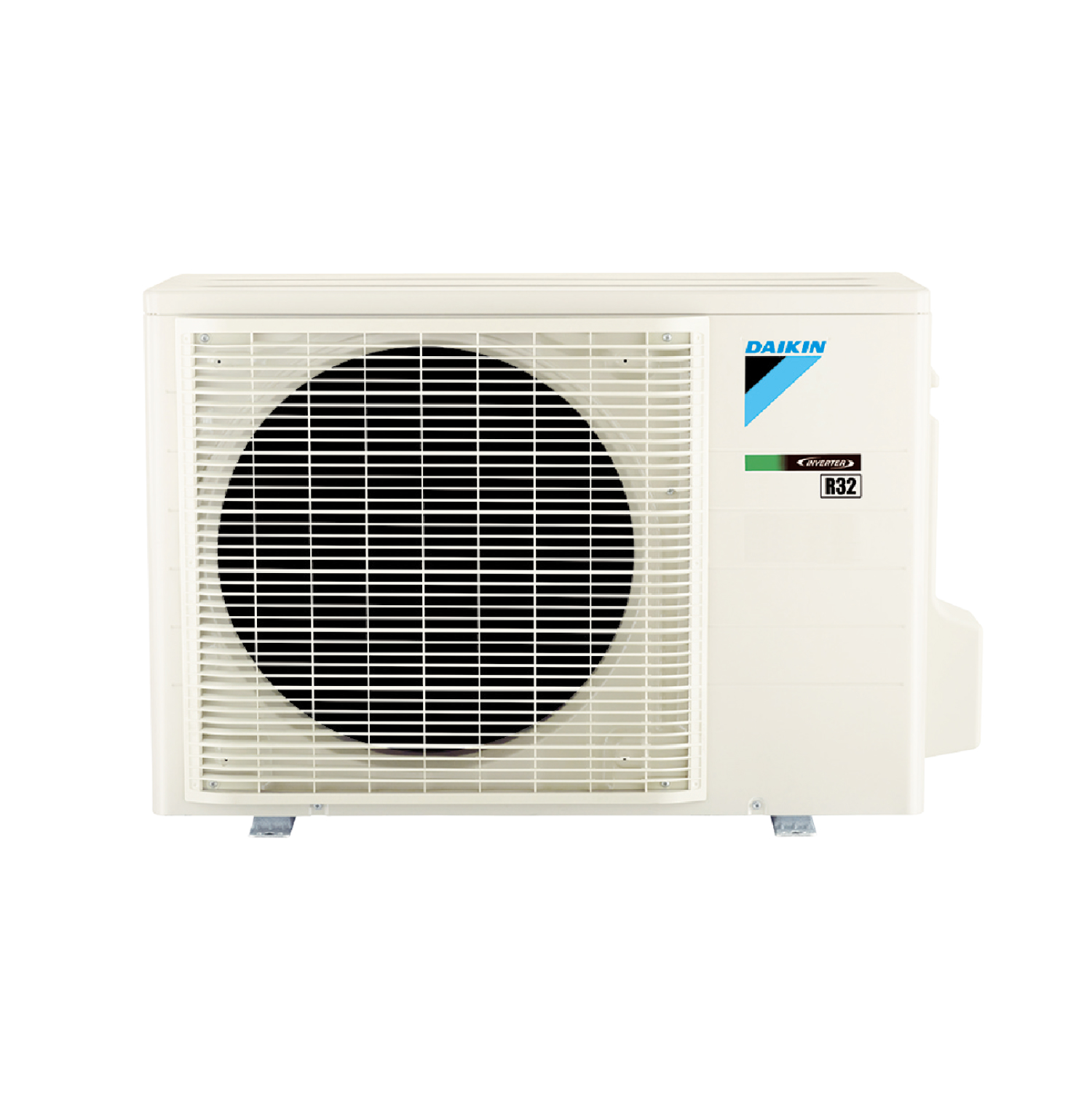

Outdoor Unit
RKQ60TVM
Power Consumption
Cooling: 2,210 W
Indoor Unit
Airflow Rate
Cooling: 7.5 - 13.2 (5 steps) m³/min
Dimensions (H x W x D)
285 x 770 x 223 mm
Sound Level
Cooling: 31 - 45 dB(A)
Weight
8 kg
Outdoor Unit
Dimensions (H x W x D)
595 x 845 x 300 mm
Piping Connections
Gas: Ø12.7 mm
Liquid: Ø6.35 mm
Max. Height Difference
20 m
Weight
40 kg
Max. Piping Length
30 m
Accessories/Functions

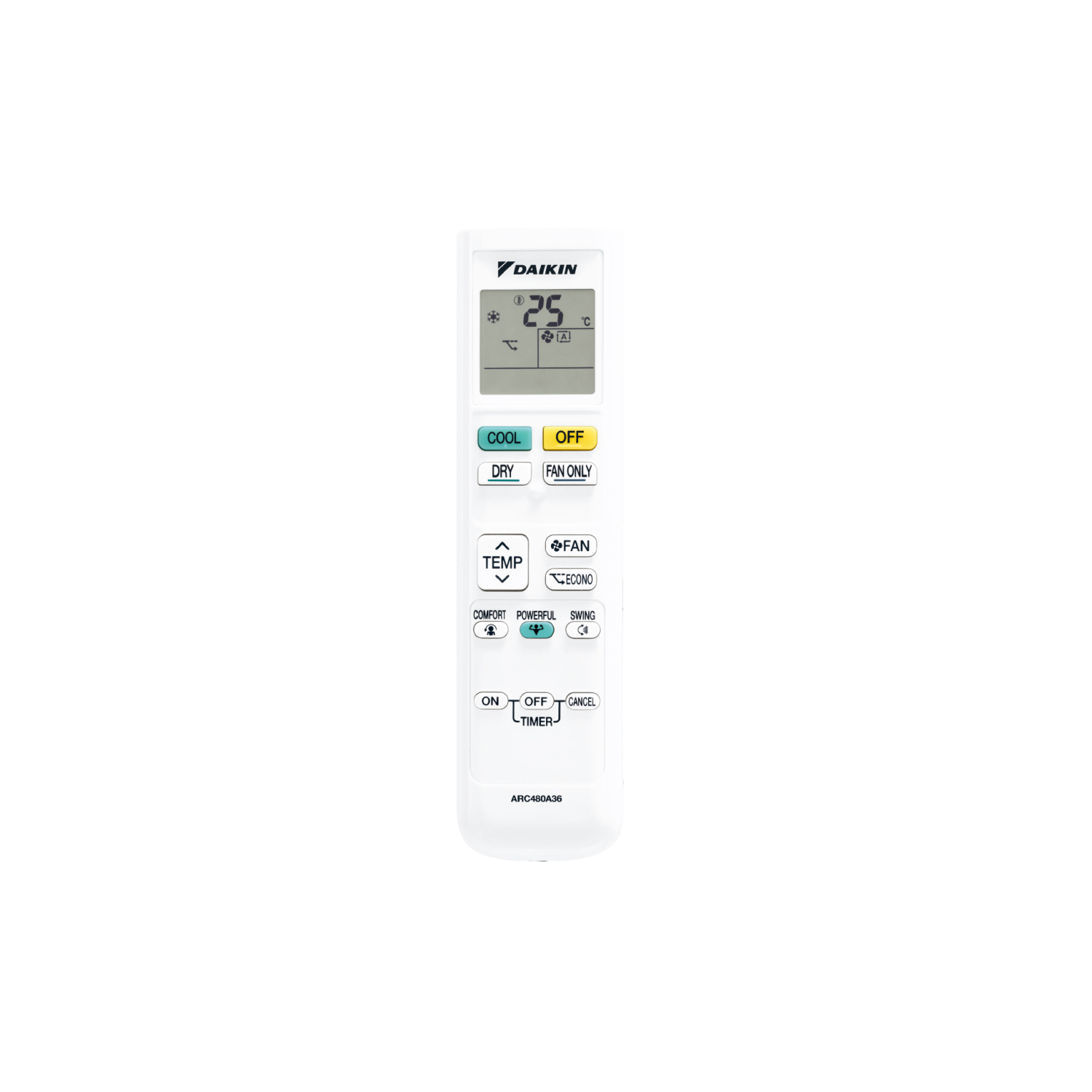

Remote Controller Model (Wireless)
ARC480A36
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m
R32 is classified as mildly flammable refrigerant. Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation.
×
