FTHM R32 Inverter Heat Pump Wall Mounted Split Type (Coanda Series)

Select hp/model

Applying the Coanda effect, the Daikin Coanda Series comes with a specially designed panel that adjusts airflow direction, creating a gentle and balanced air circulation for ultimate comfort.

Coanda panel, quickly achieving a comfortable temperature with a gentle airflow
Up to 9-metre airflow, delivering air evenly to every corner in the room*
Intelligent Eye controlling air conditioner operation according to human movement in the room
Titanium Apatite Deodorising Filter absorbing odours and allergens

*Depends on installation circumstances and operation

Paired model:

Outdoor unit - RHM25RAV1N

Specifications

Model

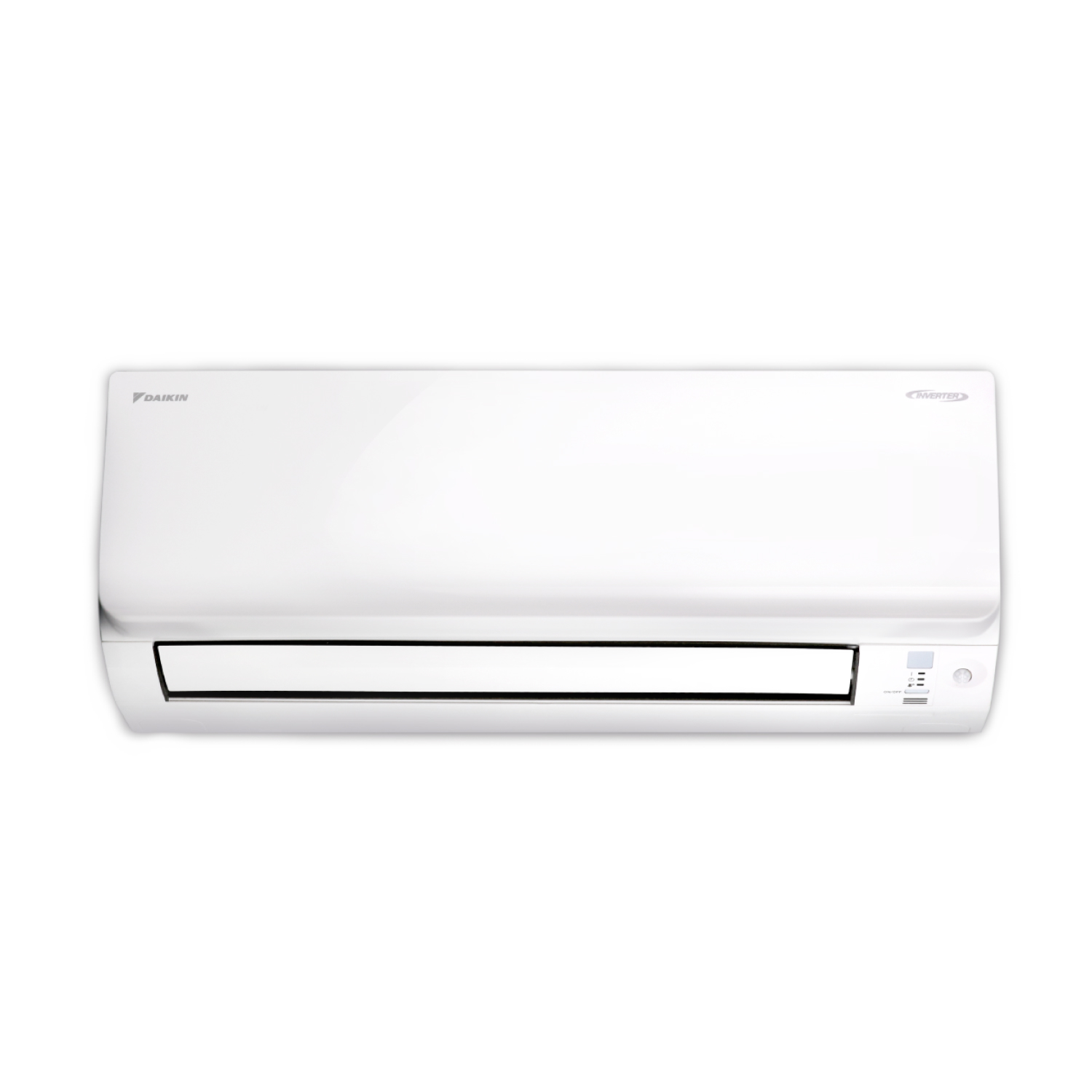

Indoor Unit

FTHM25RAV1N

Cooling Capacity

2.5 kW

8,500 Btu/h

Power Consumption

Cooling: 610 W

Heating: 610 W

Energy Label

Heating Seasonal Performance Factor (HSPF)

4.8560

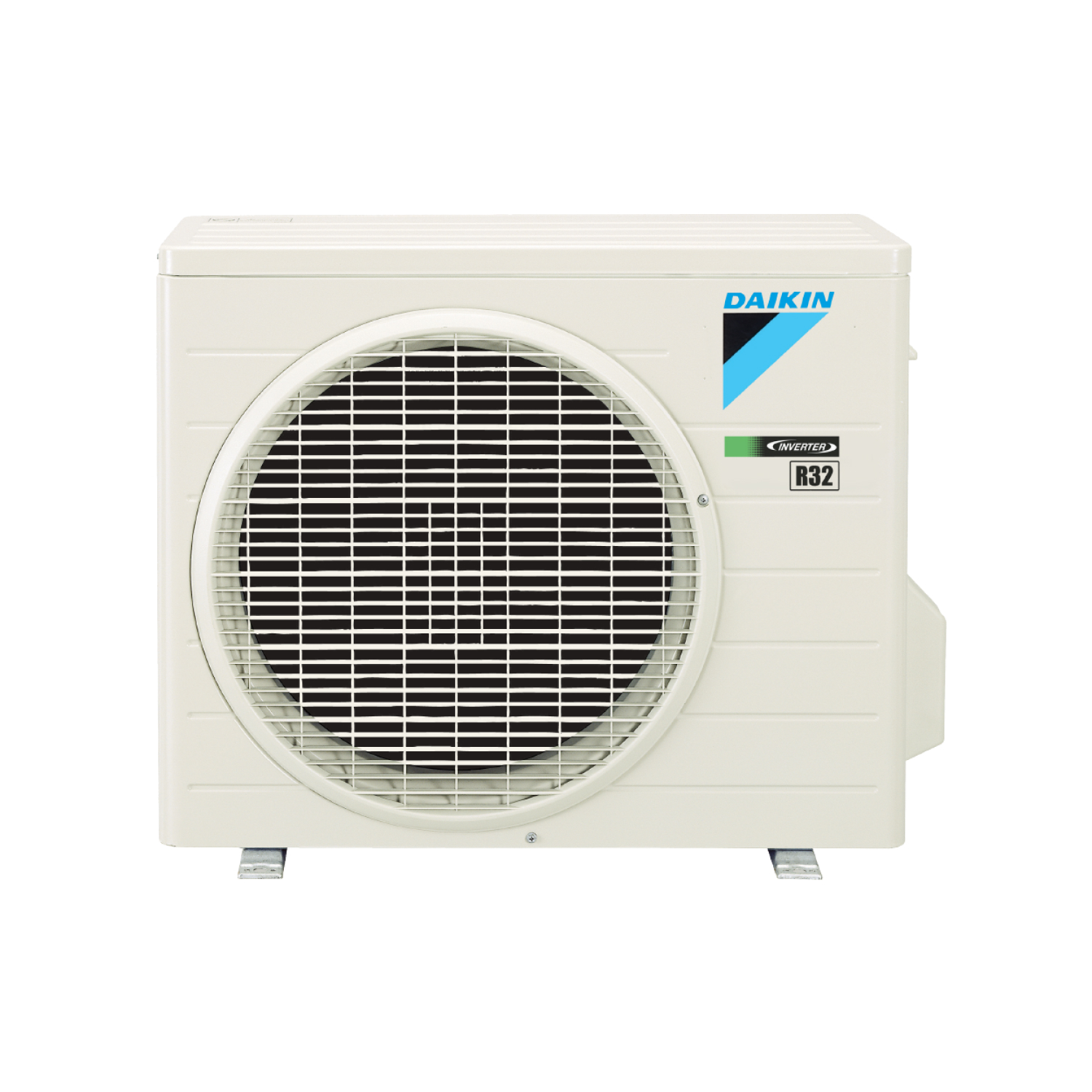

Outdoor Unit

RHM25RAV1N

Heating Capacity

2.5 kW

8,500 Btu/h

Power Supply

1Ø, 220-240V, 50Hz

Cooling Seasonal Performance Factor (CSPF)

6.6993

Indoor Unit

Airflow Rate

Cooling: 3.1 - 10.2 (5 steps) m³/min

Heating: 5.9 - 10.3 (5 steps) m³/min

Dimensions (H x W x D)

285 x 770 x 226 mm

Sound Level

Cooling: 25 - 40 dB(A)

Heating: 27 - 40 dB(A)

Weight

8 kg

Outdoor Unit

Dimensions (H x W x D)

550 x 658 x 275 mm

Piping Connections

Gas: Ø9.5 mm

Liquid: Ø6.4 mm

Max. Height Difference

12 m

Weight

27 kg

Max. Piping Length

15 m

Accessories

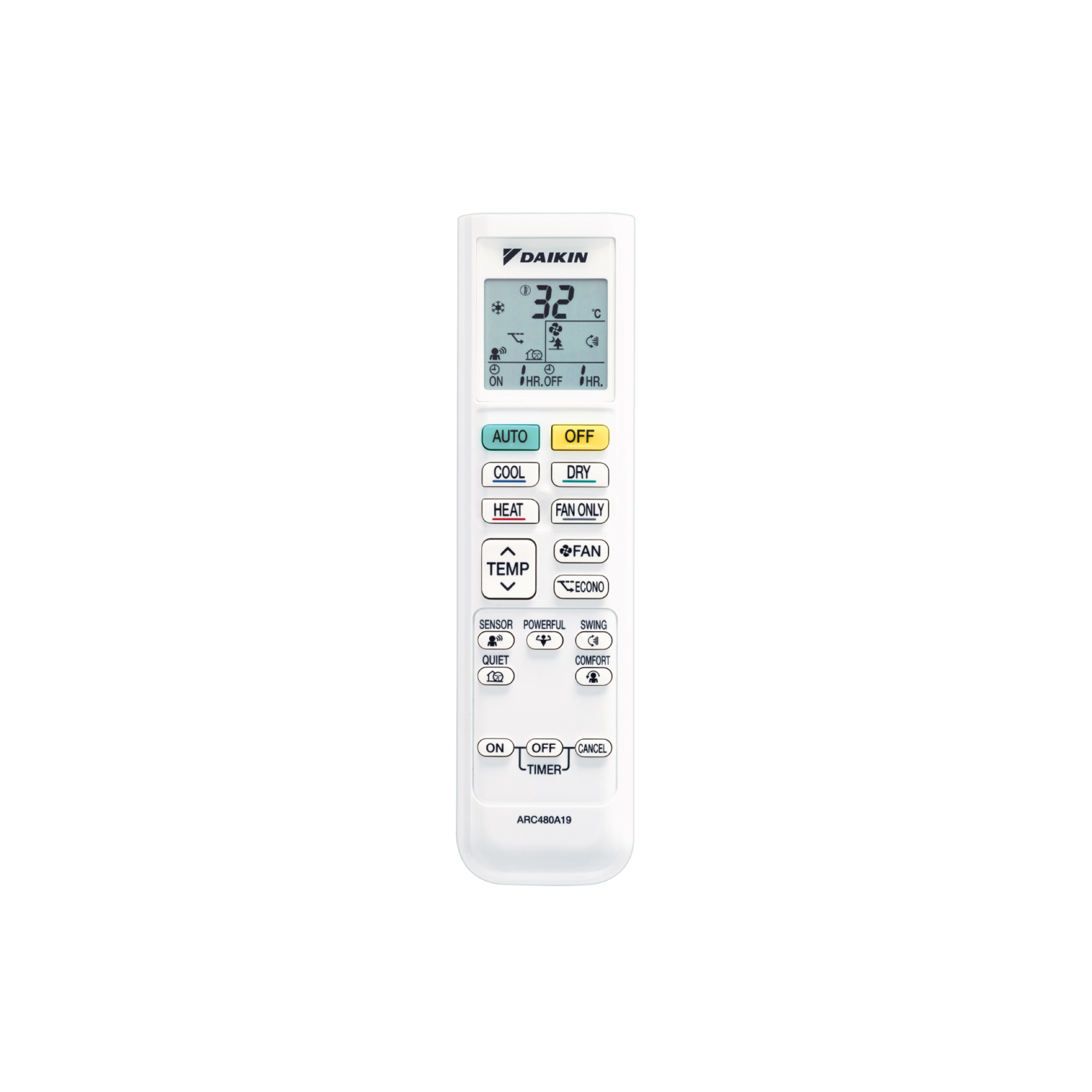

Remote Controller Model (Wireless)

ARC480A19

Comfort Airflow

Power-Airflow Flap / Wide-Angle Louvers / Comfort Airflow Mode / Vertical Auto-Swing (up and down)

Cleanliness

Titanium Apatite Deodorising Filter / Dust Collection Filter (PM2.5) (optional function) / Mould-Proof Air Filter / Odour Removal

Timers

Comfort Sleep Operation / On/Off Timer

Smart Control

Daikin Mobile Controller (optional function)

Lifestyle Convenience

Inverter Powerful Operation / Standby Electricity Saving / Econo Mode / Wireless Remote Controller with Luminous Button / Smart Control (optional function)

Comfort Control

Indoor Unit Quiet Operation / Outdoor Unit Quiet Operation / Intelligent Eye (auto energy saving) / Automatic Operation / Programme Dry Function / Auto Fan Speed

Worry Free

Auto-Restart after Power Failure / Self-Diagnosis with Remote Controller / Anti-Corrosion Treatment of Outdoor Heat

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Heating: indoor temp. 20°CDB/15°CWB; outdoor temp. 7°CDB/6°CWB
Piping length: 7.5m

R32 is classified as mildly flammable refrigerant. Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation.
