FTKA Inverter Cooling Only Wall Mounted Split Type (420 Series)
Select hp/model
Daikin 420 series, the petite and sleek outdoor unit has a height of only 420mm is the perfect fit for your tiny window platform.
- Petite outdoor unit, freeing you from the need for scaffolding at the time of installation*
- Catechin Air Filter, deactivating bacteria and virus
- 3D Air, evenly distributing air to every corner
*Depends on the circumstances of the site
Paired model:
Specifications
Model

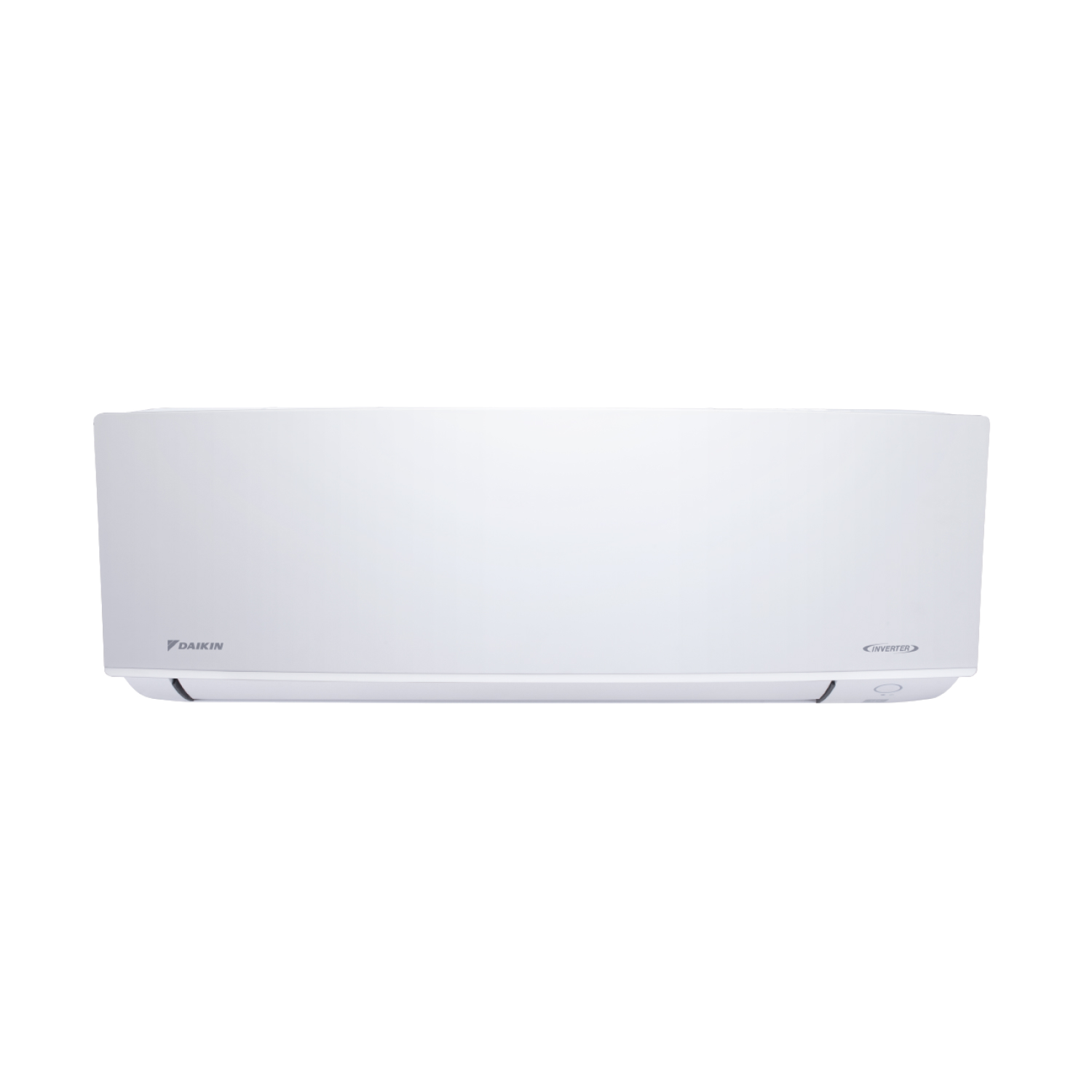

Indoor Unit
FTKA20BV1H
Cooling Capacity
2 kW
6,800 Btu/h
Power Supply
1Ø, 220V, 50Hz
Cooling Seasonal Performance Factor (CSPF)
5.2336

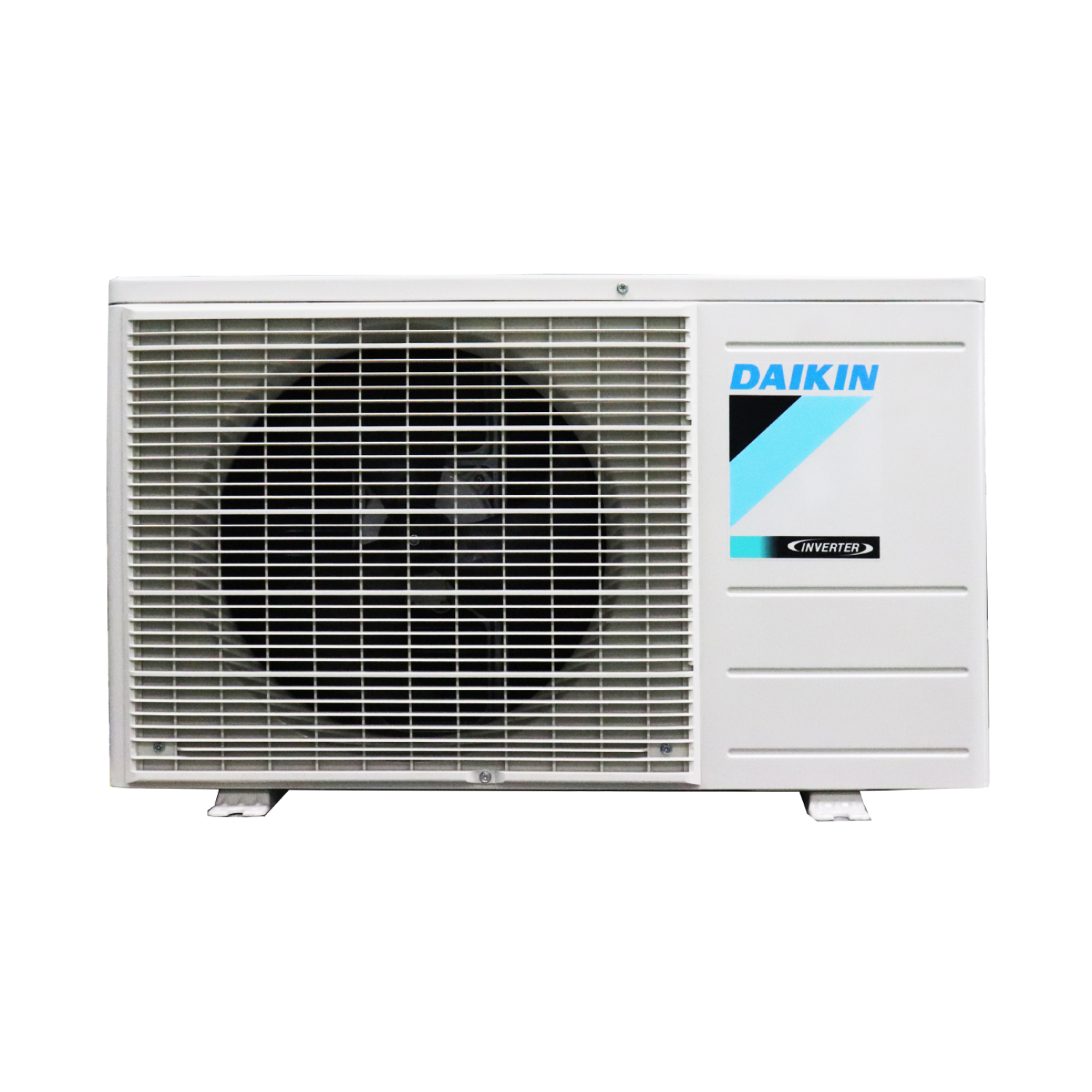

Outdoor Unit
RKA20BV1H
Power Consumption
Cooling: 570 W
Energy Label
1
Indoor Unit
Airflow Rate
Cooling: 5.8 - 8.4 (3 steps) m³/min
Dimensions (H x W x D)
288 x 785 x 250 mm
Sound Level
Cooling: 25 - 34 dB(A)
Weight
9 kg
Outdoor Unit
Dimensions (H x W x D)
418 x 695 x 244 mm
Piping Connections
Gas: Ø9.5 mm
Liquid: Ø6.4 mm
Max. Height Difference
10 m
Weight
18.5 kg
Max. Piping Length
20 m
Accessories

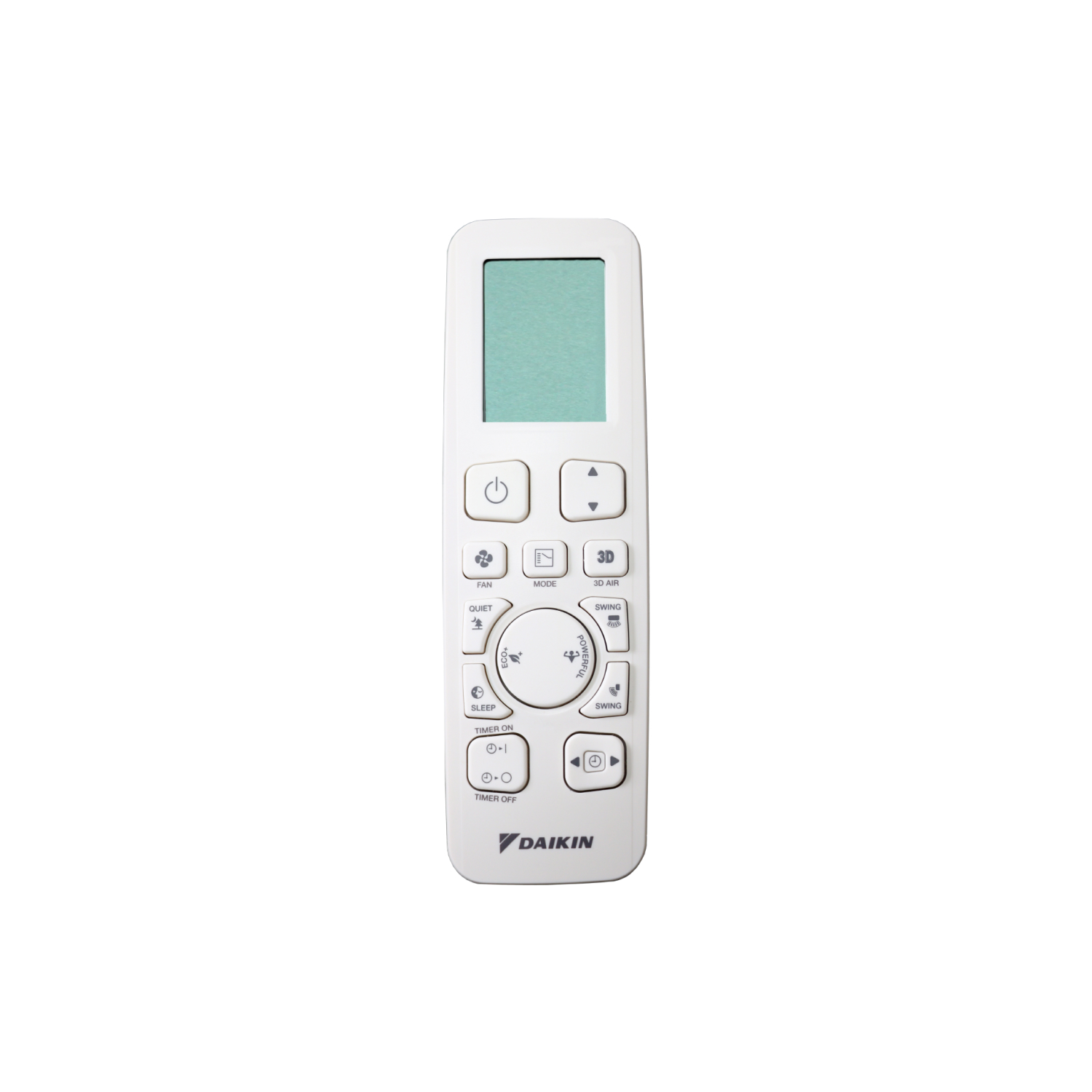

Remote Controller Model (Wireless)
ARC485A5
Comfort Airflow
Power-Airflow Flap / Wide-Angle Louvers / Vertical Auto-Swing (up and down) / Horizontal Auto-Swing (left and right) / 3D Air
Cleanliness
Titanium Apatite Deodorising Filter / Catechin Air Filter
Timers
Comfort Sleep Operation / 24 Hour On/Off Timer
Smart Control
Daikin Mobile Controller (optional function)
Lifestyle Convenience
Inverter Powerful Operation / Econo Mode / Wireless Remote Controller with Luminous Button / Smart Control (optional function)
Comfort Control
Indoor Unit Quiet Operation / Programme Dry Function / Auto Fan Speed
Worry Free
Auto-Restart after Power Failure / Self-Diagnosis with Remote Controller / Anti-Corrosion Treatment of Outdoor Heat
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
