FCQ Inverter Cassette Split Type (Round Flow Series)
Specifications
Model
Indoor Unit
FCQ60KAVEA
Cooling Capacity
6 kW
20,500 Btu/h
Power Supply
1Ø, 220-240V, 50Hz
Outdoor Unit
RZR60MVM
Power Consumption
Cooling: 1.58 kW

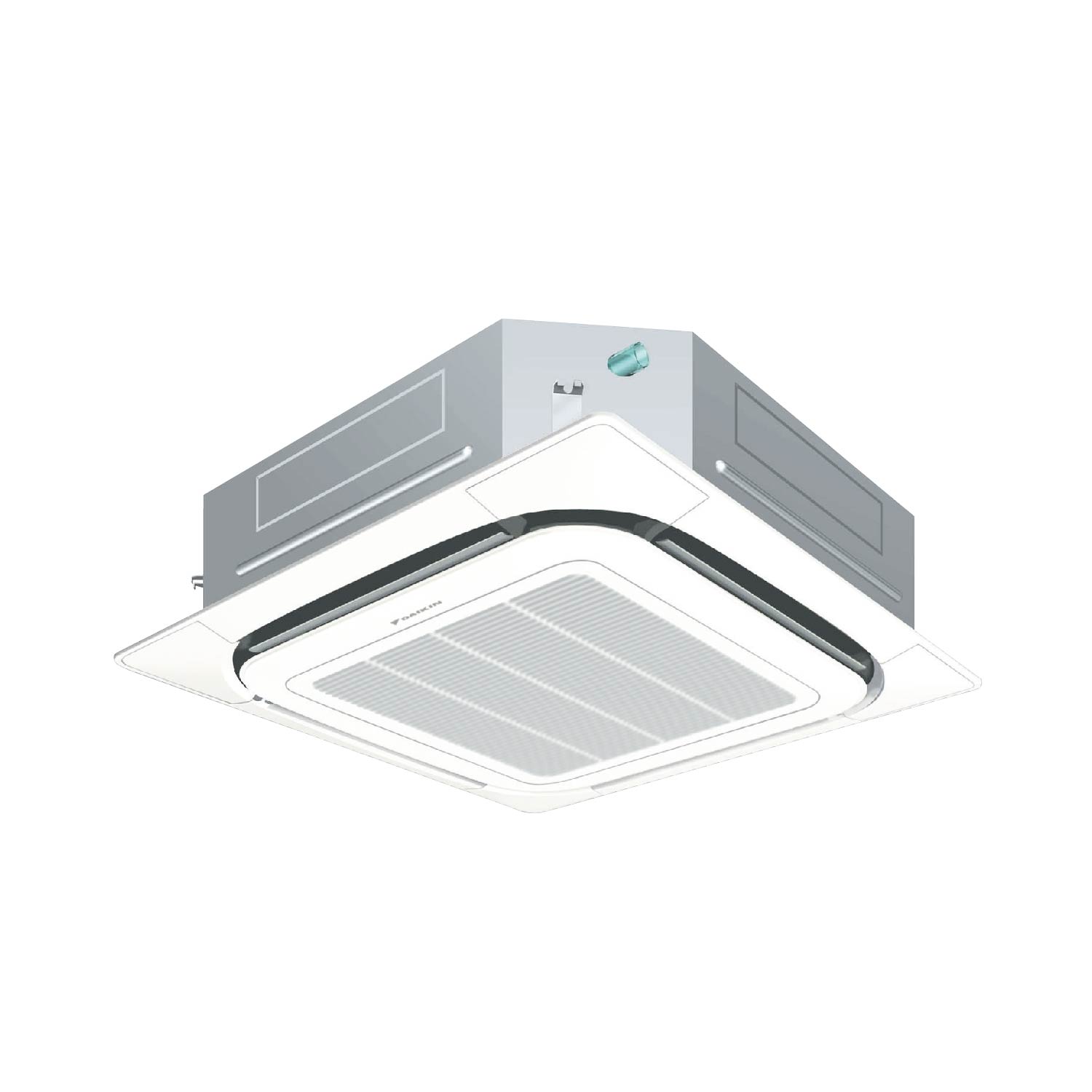

Indoor Unit
Airflow Rate
Cooling: 13.5 - 21 (3 steps) m³/min
Dimensions (H x W x D)
Panel: 50 x 950 x 950 mm
Body: 256 x 840 x 840 mm
Sound Level
Cooling: 28 - 35 dB(A)
Weight
Panel: 5.5 kg
Body: 21 kg

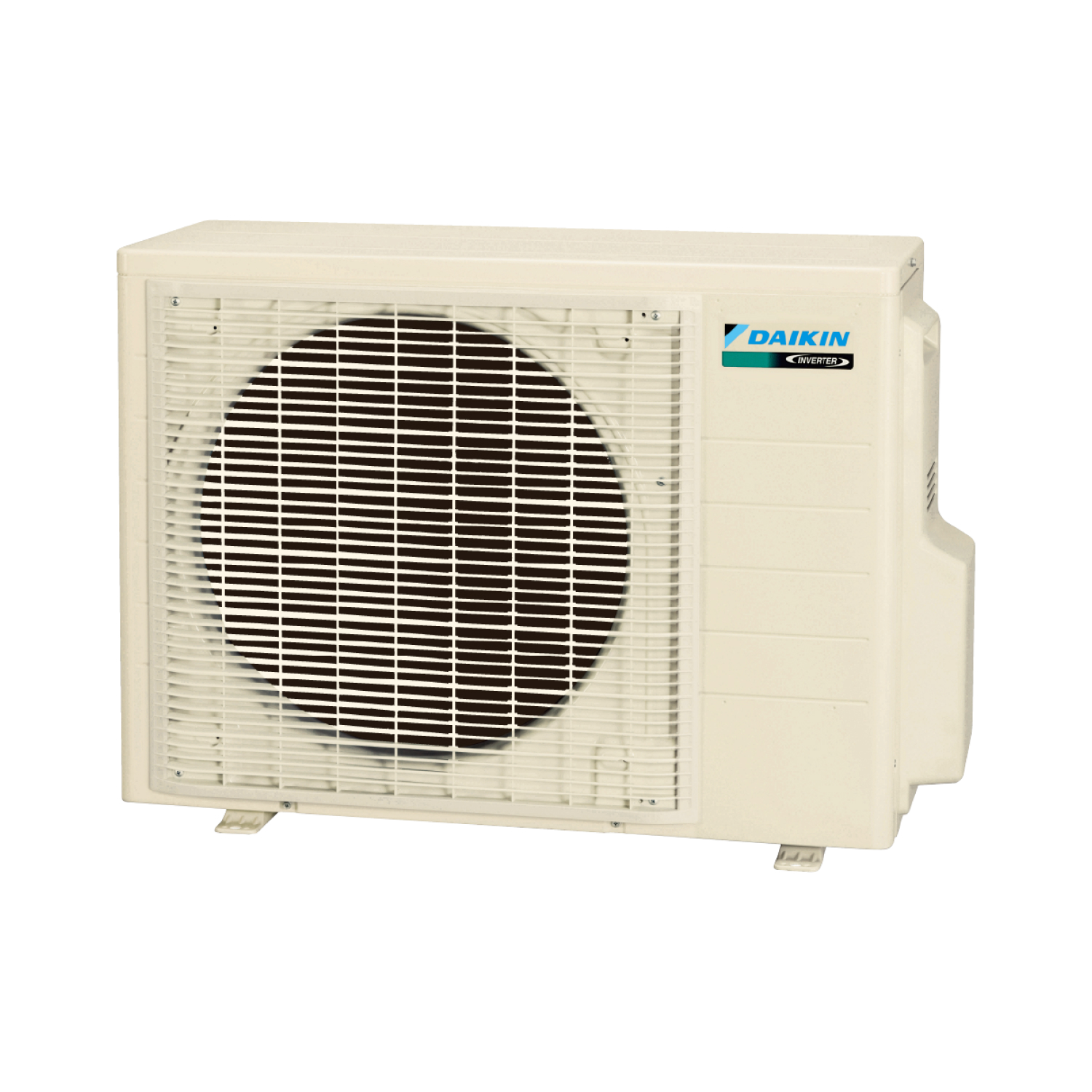

Outdoor Unit
Dimensions (H x W x D)
595 x 845 x 300 mm
Piping Connections
Gas: Ø15.9 mm
Liquid: Ø9.5 mm
Max. Height Difference
30 m
Weight
43 kg
Max. Piping Length
50 m
Accessories/Functions
Remote Controller Model (Wired)
BRC2E61 (optional)
Remote Controller Model (Wireless)
BRC7F635F (optional)
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB
Piping length: 7.5m
