Super Multi NX Multi Series - FFQ Compact Cassette Multi-Split Type
Select hp/model
Specifications
Model

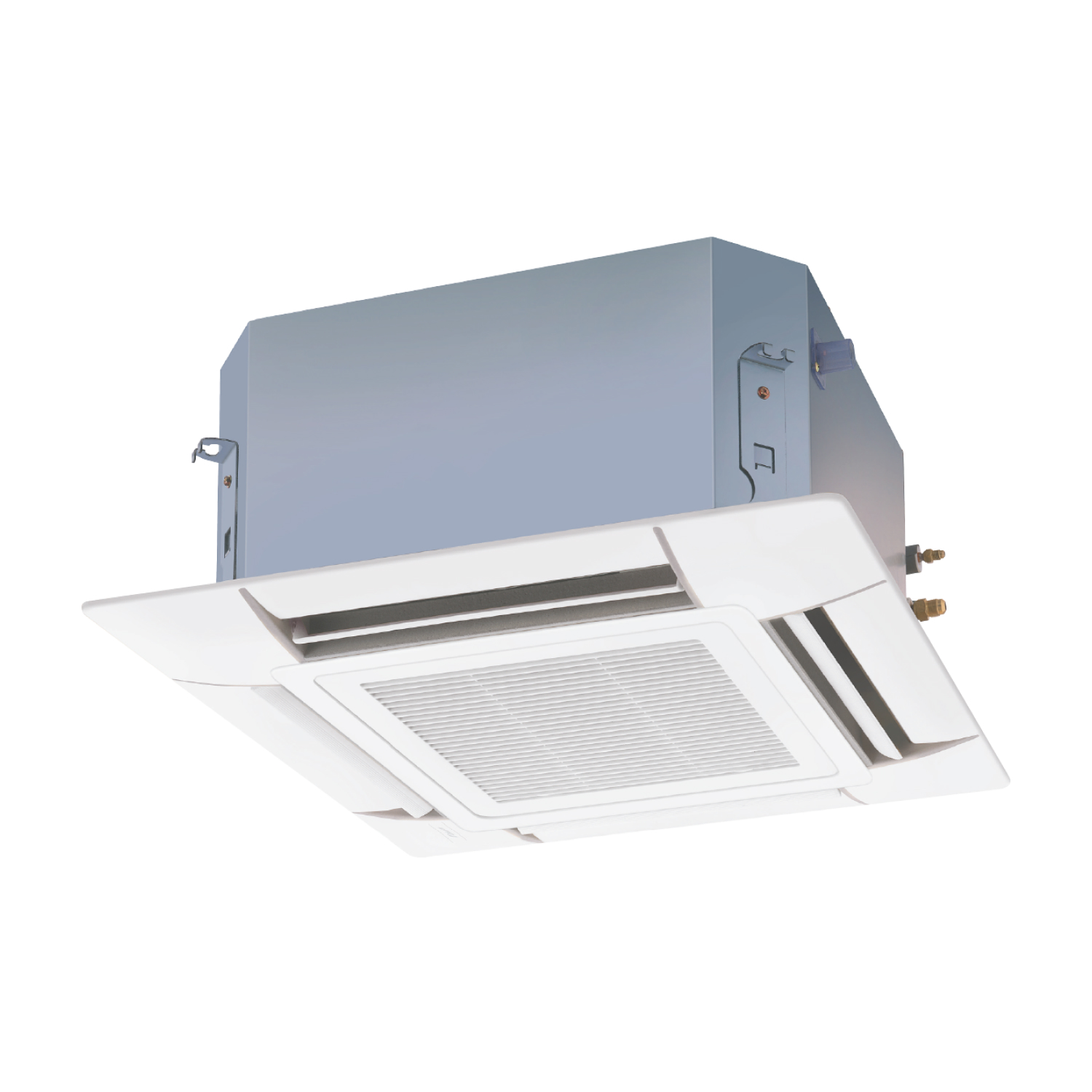

Indoor Unit
FFQ50BV1B9

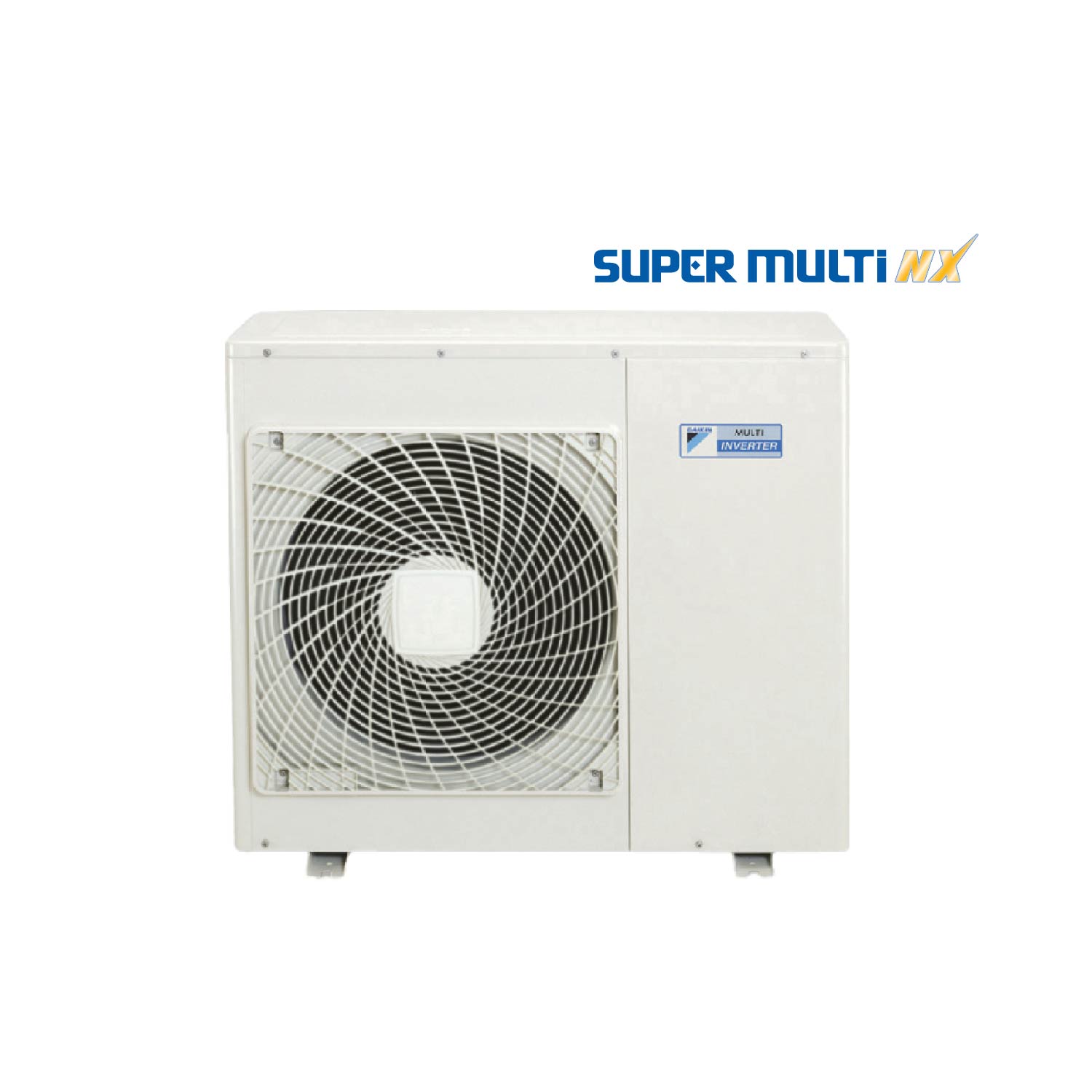

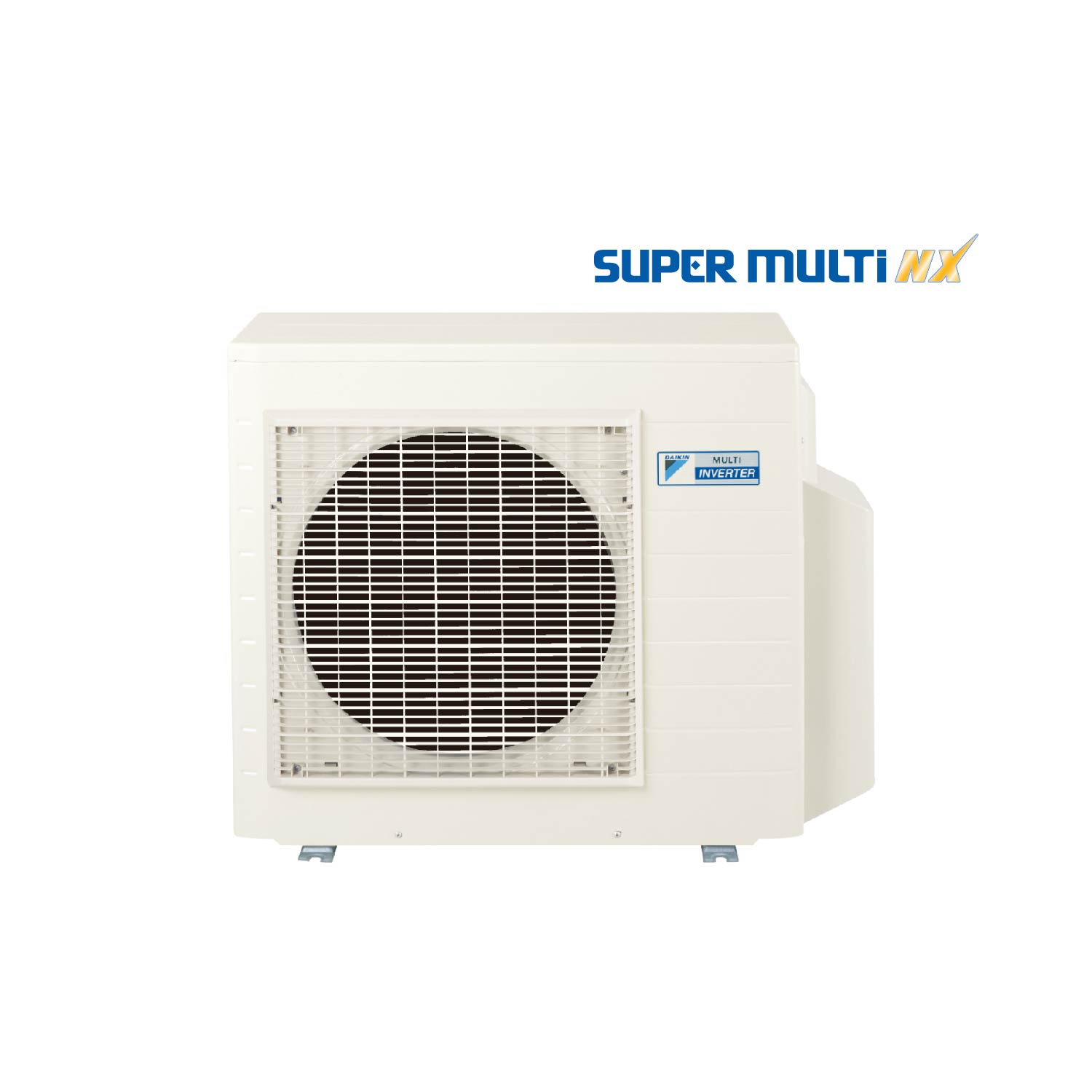

Outdoor Unit
3MXS52LVMA9 / 3MXS68LVMA9 / 4MXS80LVMA9
Indoor Unit
Airflow Rate
Cooling: 8 - 12 (2 steps) m³/min
Heating: 8 - 12 (2 steps) m³/min
Dimensions (H x W x D)
Panel: 55 x 700 x 700 mm
Body: 286 x 575 x 575 mm
Sound Level
Cooling: 27 - 36 dB(A)
Heating: 27 - 36 dB(A)
Weight
Panel: 2.7 kg
Body: 17.5 kg

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 5m

For the selection of model and connection method, please refer to product catalogue.
