Super Multi NX Multi Series - FDXS Duct Multi-Split Type
Specifications
Model

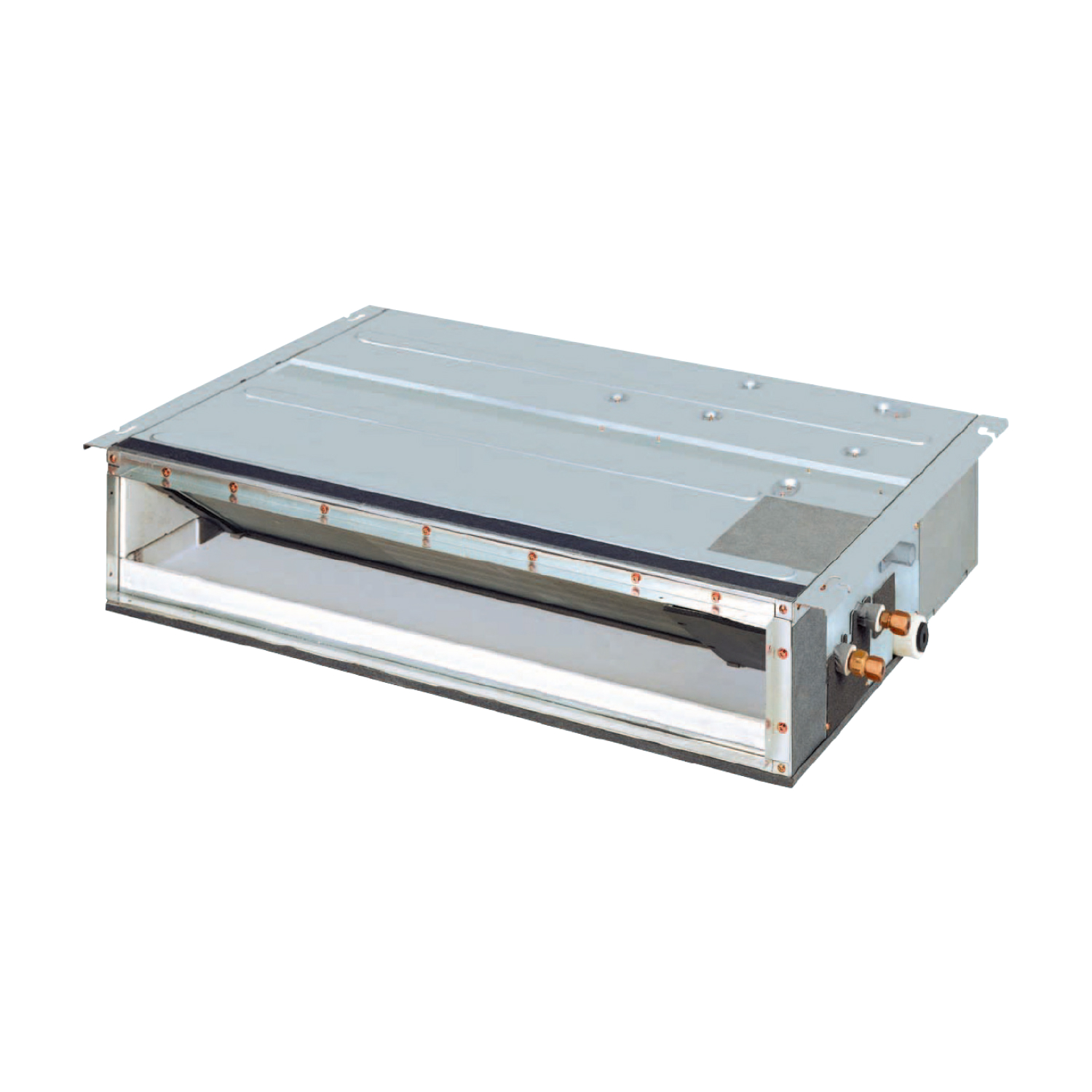

Indoor Unit
FDXS50CVMA

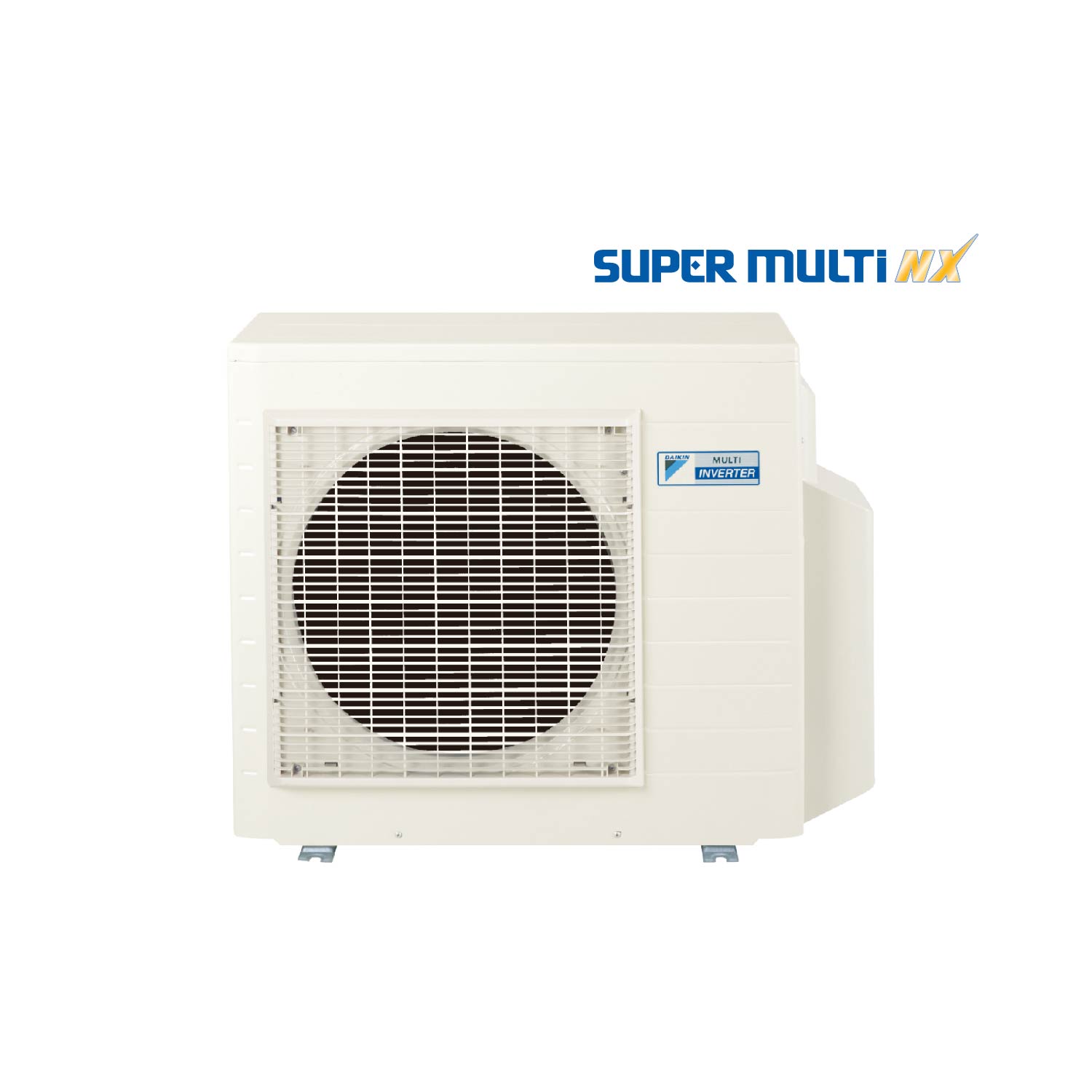

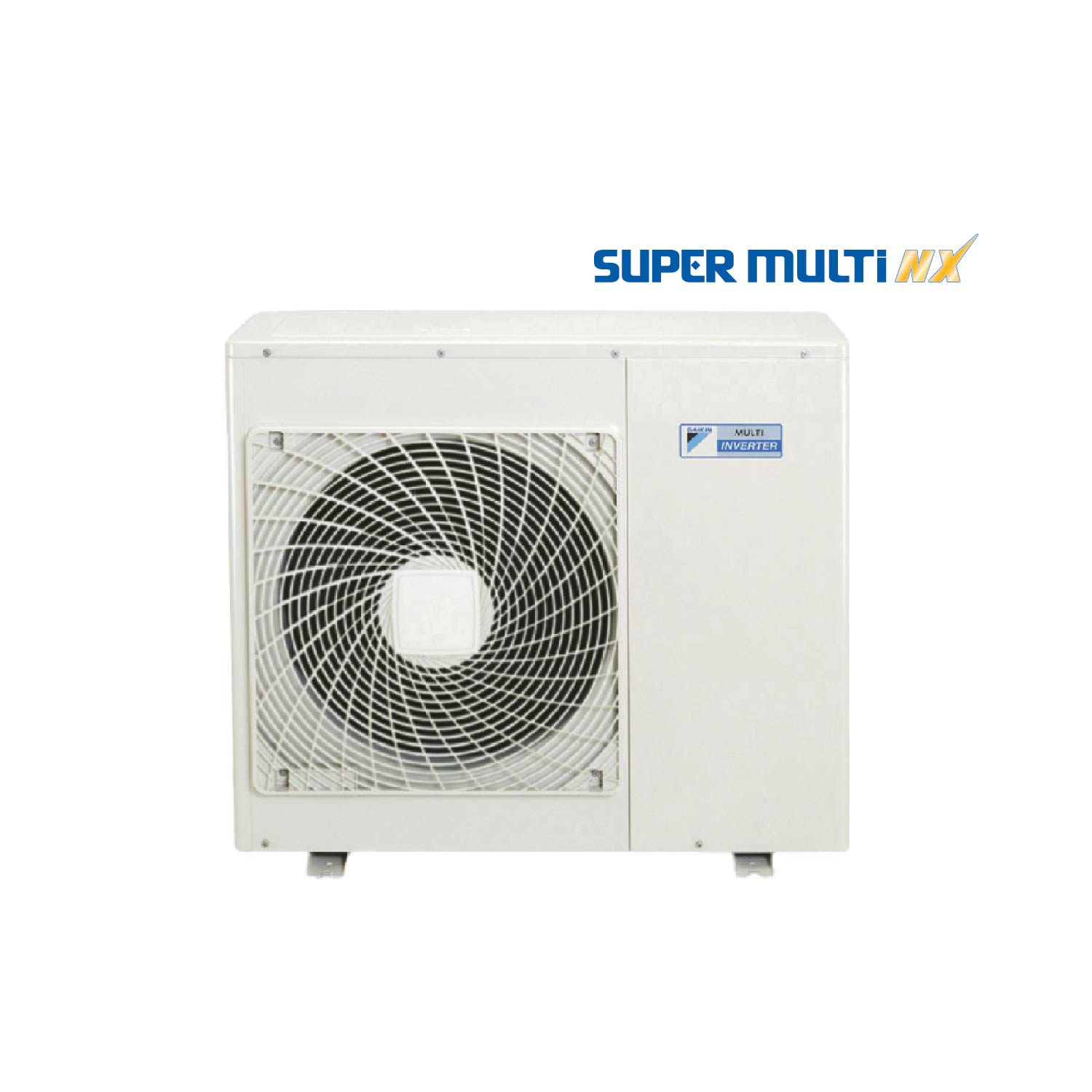

Outdoor Unit
3MXS52LVMA9 / 3MXS68LVMA9 / 4MXS80LVMA9
Indoor Unit
Airflow Rate
Cooling: 8.4 - 12 (5 steps) m³/min
Heating: 8.4 - 12 (5 steps) m³/min
Sound Level
Cooling: 31 - 37 dB(A)
Heating: 31 - 37 dB(A)
Weight
27 kg
External Static Pressure
40 Pa
Dimensions (H x W x D)
200 x 900 x 620 mm
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 5m
For the selection of model and connection method, please refer to product catalogue.
