MXM Multi Series - CTXM Wall Mounted Multi-Split Type
Specifications
Model

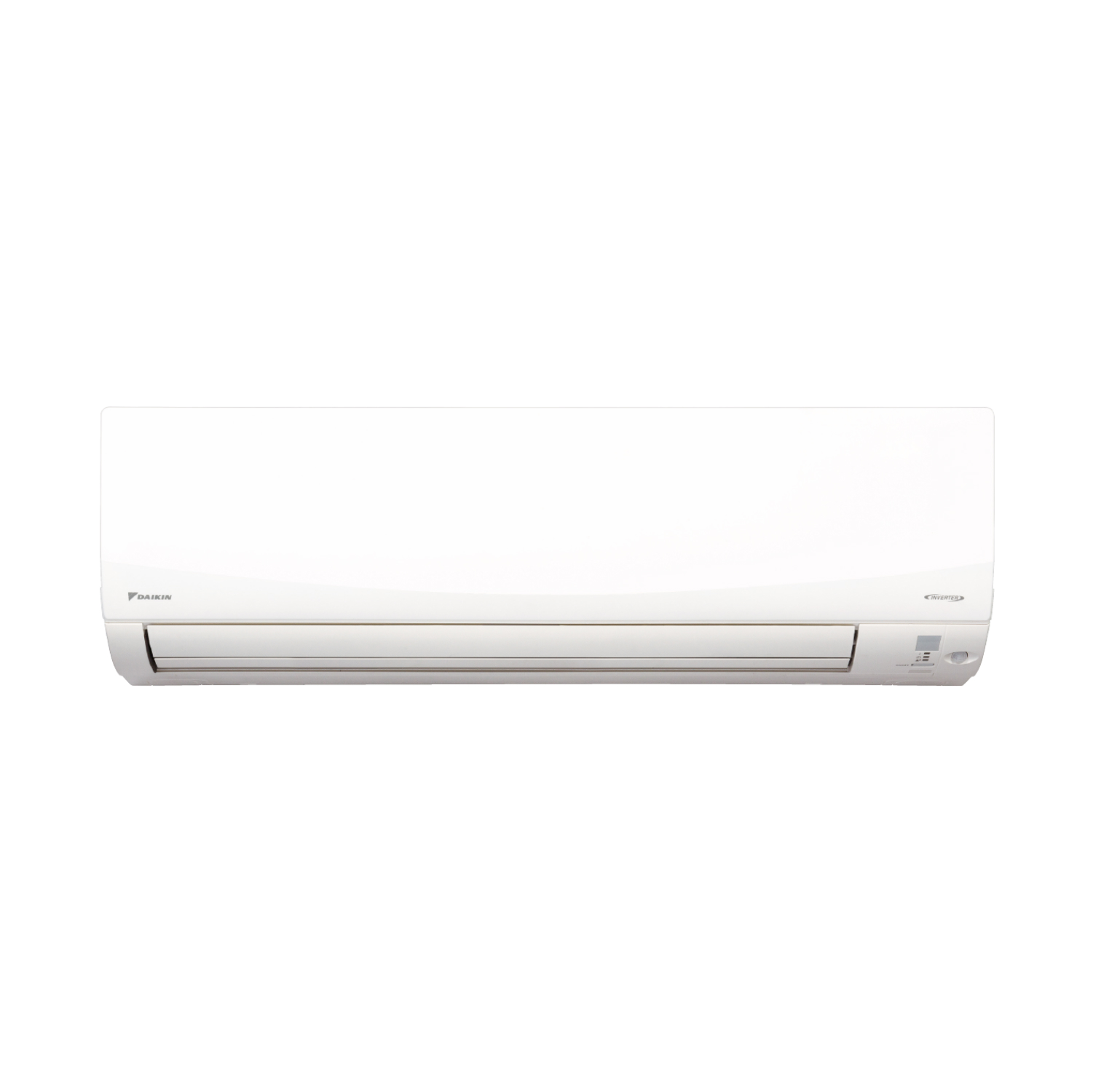

Indoor Unit
CTXM60RVMN

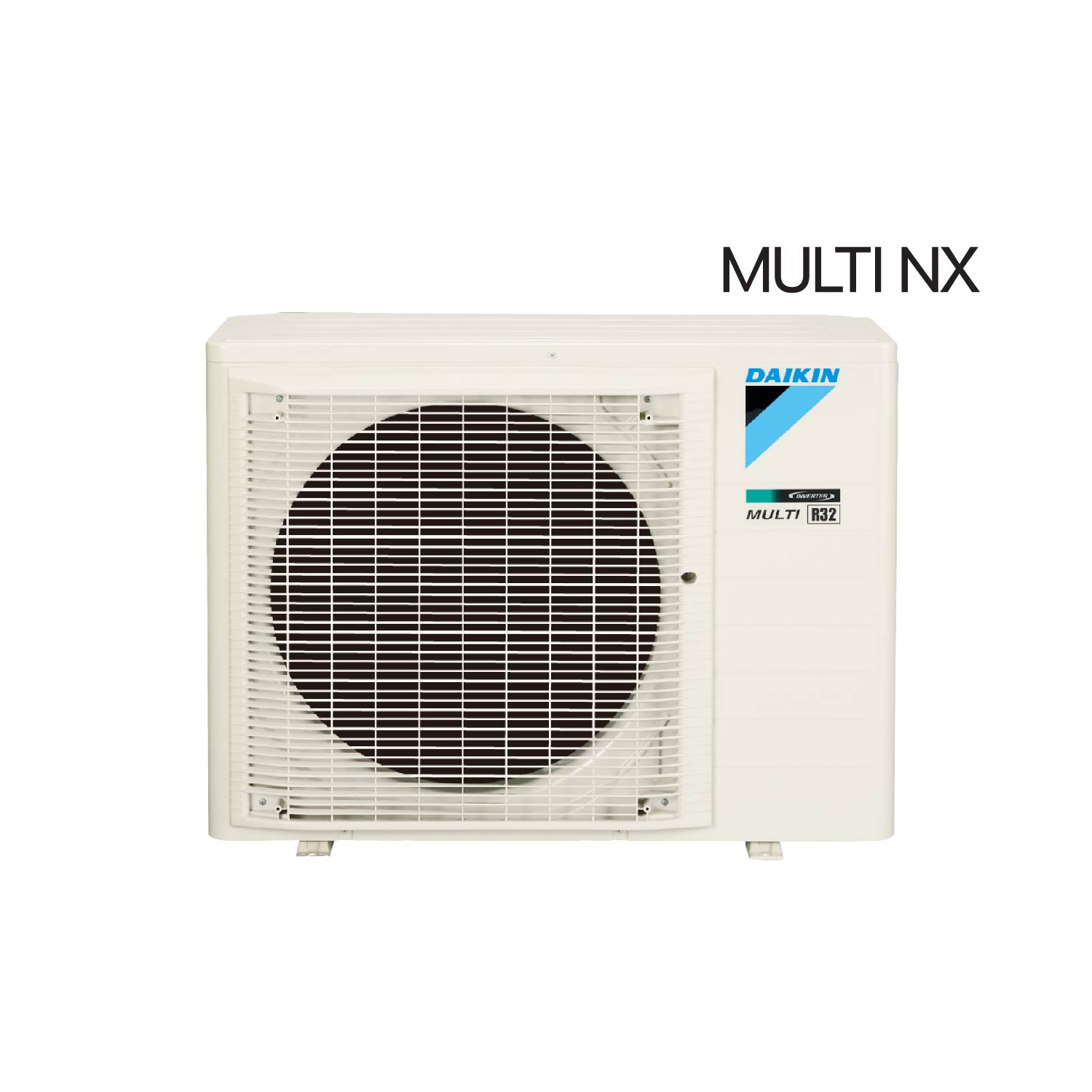

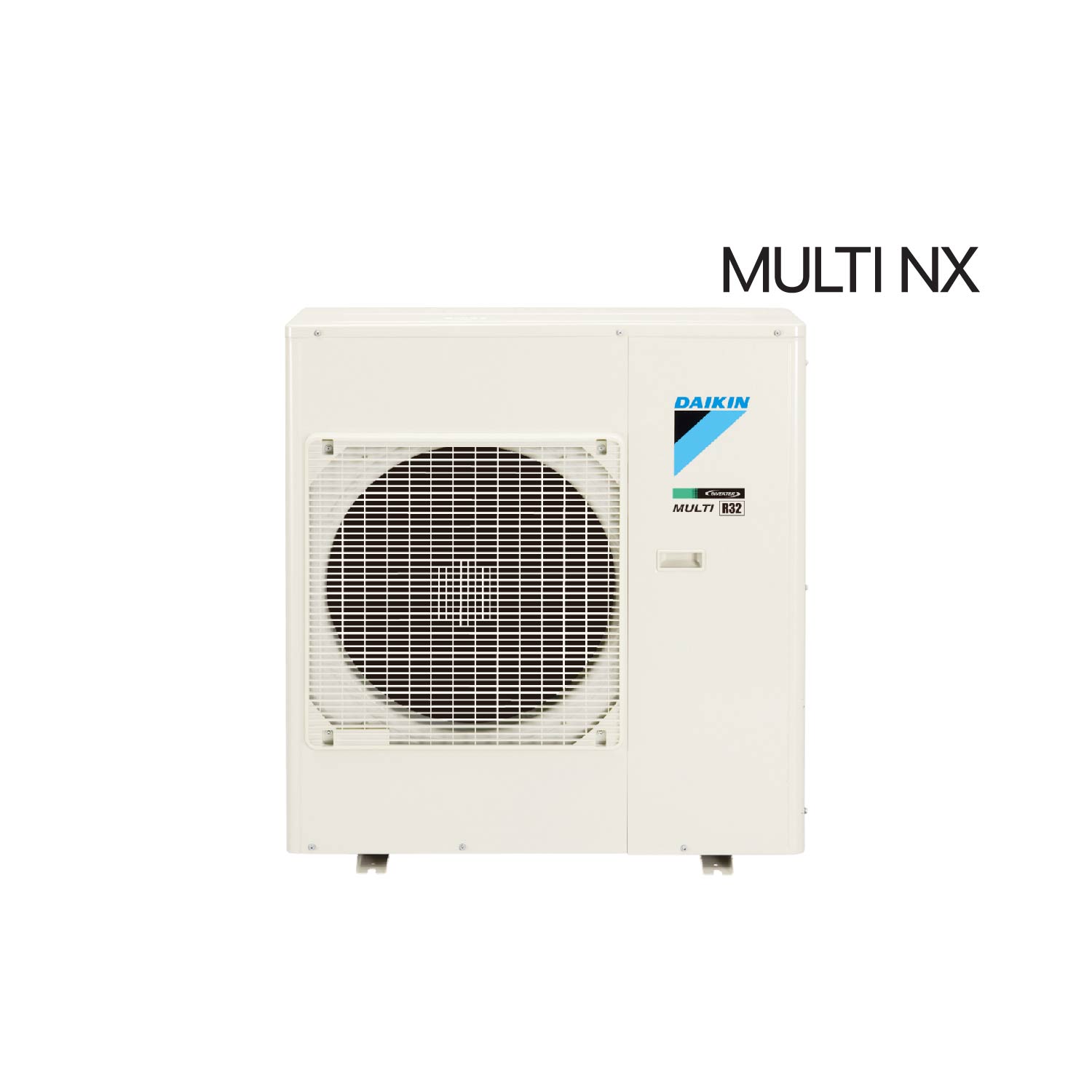

Outdoor Unit
4MXM68RVMA / 4MXM80RVMA / 5MXM100RVMA
Indoor Unit
Airflow Rate
Cooling: 9.7 - 19.5 (5 steps) m³/min
Heating: 9.7 - 20 (5 steps) m³/min
Dimensions (H x W x D)
295 x 990 x 263 mm
Sound Level
Cooling: 29 - 48 dB(A)
Heating: 29 - 48 dB(A)
Weight
13 kg
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB
Piping length: 5m
R32 is classified as mildly flammable refrigerant. Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation.
For the selection of model and connection method, please refer to product catalogue.
