FFQ Inverter Cassette Split Type (Compact Series)

Back

Select hp/model

Paired model:

Outdoor unit - RKS50FVMA

Specifications

Model

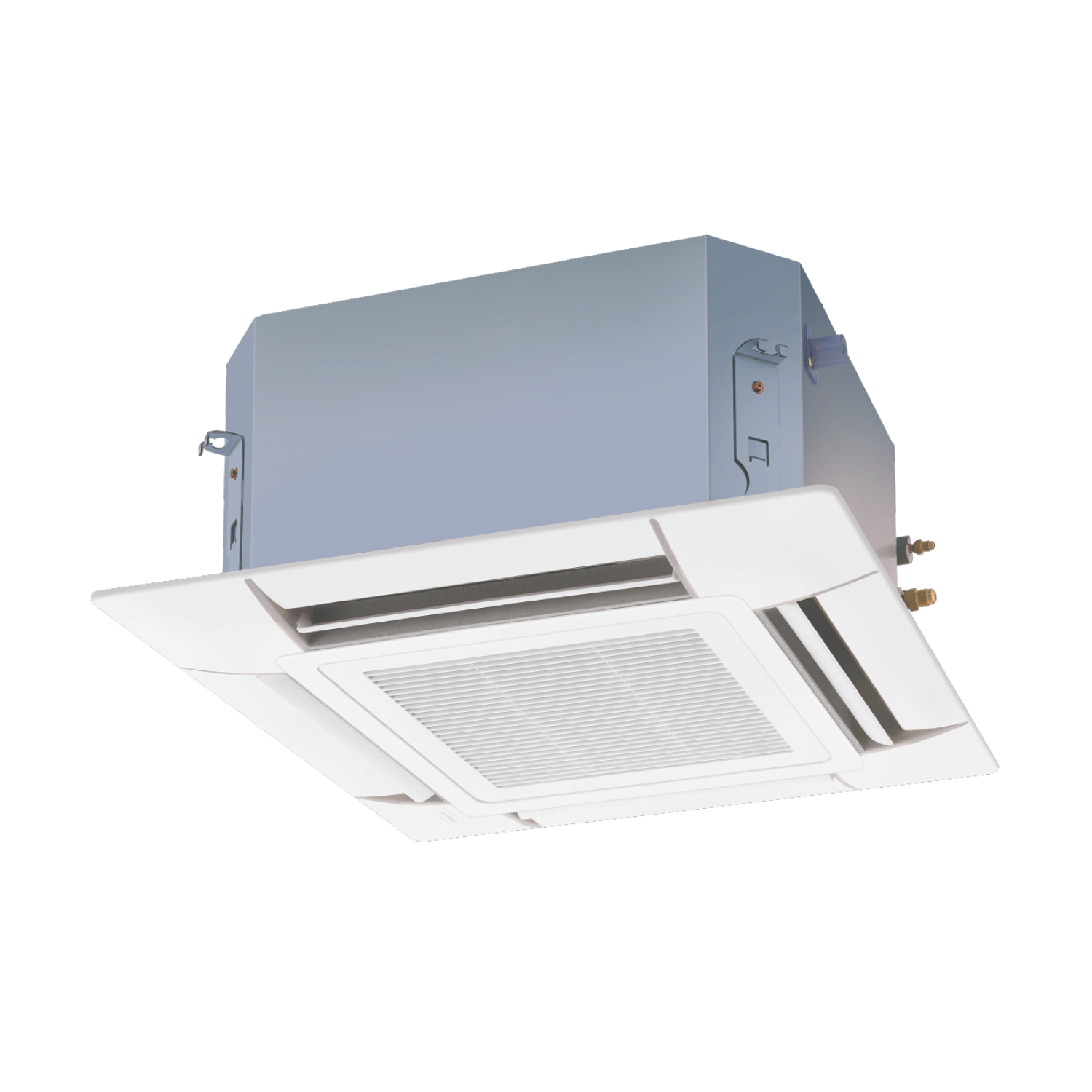

Indoor Unit

FFQ50BV1B9

Cooling Capacity

4.7 kW

16,000 Btu/h

Power Supply

1Ø, 220-240V, 50Hz

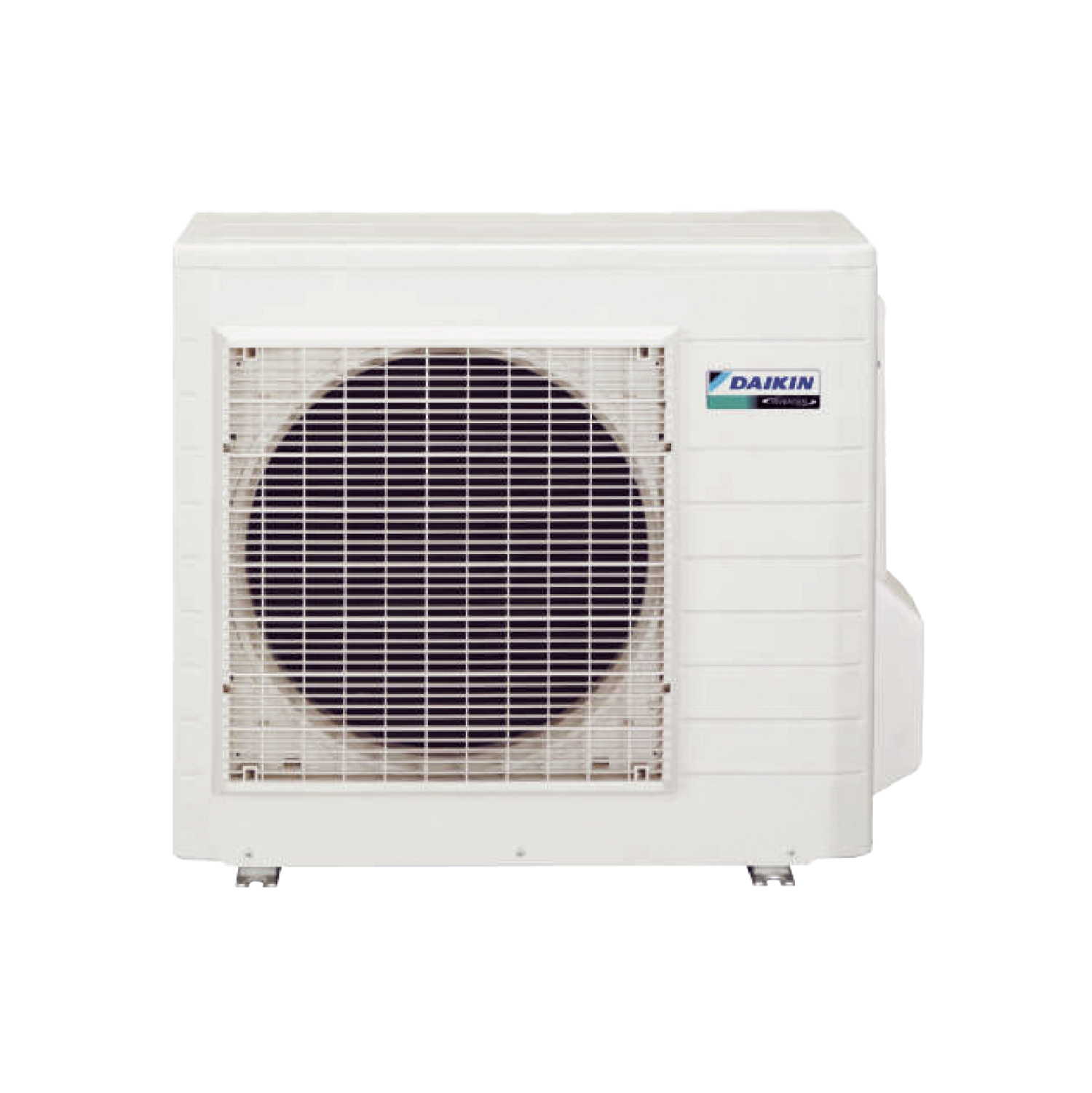

Outdoor Unit

RKS50FVMA

Power Consumption

Cooling: 1.62 kW

Indoor Unit

Airflow Rate

Cooling: 8 - 12 (2 steps) m³/min

Dimensions (H x W x D)

Panel: 55 x 700 x 700 mm

Body: 286 x 575 x 575 mm

Sound Level

Cooling: 27 - 36 dB(A)

Weight

Panel: 2.7 kg

Body: 17.5 kg

Outdoor Unit

Dimensions (H x W x D)

735 x 825 x 300 mm

Piping Connections

Gas: Ø12.7 mm

Liquid: Ø6.4 mm

Max. Height Difference

20 m

Weight

47 kg

Max. Piping Length

30 m

Accessories/Functions

Remote Controller Model (Wired)

BRC2E61 (optional)

Remote Controller Model (Wireless)

BRC7E531W (optional)

Remarks

The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
